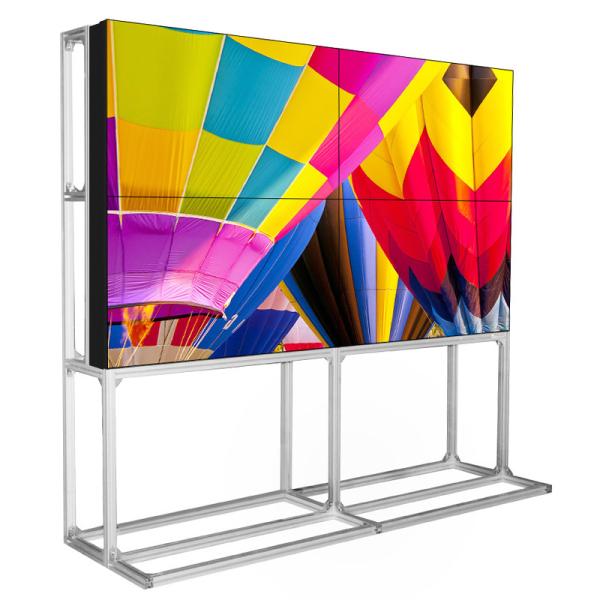

500 Nits 8ms Digital Signage Display Bezel 3.5mm Floor Stand video
500 Nits 8ms Digital Signage Display Bezel 3.5mm Floor Stand video
500 Nits 8ms Digital Signage Display Bezel 3.5mm Floor Stand video
500 Nits 8ms Digital Signage Display Bezel 3.5mm Floor Stand video
Specifications
Model Number :
SW-01
Certification :
CE,FCC, Rohs. CB
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
TT
Supply Ability :
5000pcs/month
Delivery Time :
7-25
Packaging Details :
Outer wooden box, middle carton, inner PE cotton
Brand Name :
Smart Display
Application :
indoor
view angle :
178°/178°(H/V)
Panel parameter :
RGB Vertical Stripe
bezel :
3.5mm
size :
55inch
Display colors :
8bit-16.7m
Customized service :
yes
Brand :
Smart Display
Description

500 Nits 8ms Digital Signage Display Bezel 3.5mm Floor Stand video

Specification

Product size table
Panel size Bilateral seam Panel Length Panel Width Panel Thickness Panel Brand Model No.
46inch 1.7mm 1020.02mm 574.61mm 120.54mm Samsung LTI460HN15
46inch 3.5mm 1021.98mm 576.57mm 121.7mm Samsung LTI460HN11
46inch 5.5mm 1023.98mm 578.57mm 133mm Samsung LTI460HN09
49inch 1.8mm 1077.58mm 607.8mm 113.7mm LG LD490DUN-TJB2
49inch 3.5mm 1077.58mm 607.8mm 113.7mm LG LD490DUN-THC4
55inch 1.8mm 1213.5mm 684.3mm 110mm LG LD550DUN-THB8
55inch 3.5mm 1213.5mm 684.30mm 110mm Samsung LTI550HN11

PECIFICATION
Item
Model No.
VW46W/ VW55W
Panel
Parameter
Screen size
46inch / 55inch
Pixel pitch
0.53025(H)x0.53025(V) / 0.630(H)x0.630(V)
Resolution
1920X1080
Brightness
500nits
Contract Ratio
3000:1 / 4000 : 1
Viewing angle
89/89/89/89
Backlight
LED
Color depth
16.7M
Response time
<8ms
Display area
1018.08(H)×572.67(V)/ 1209.6(H)×680.4(V)
Bezel
3.5mm
interface
CVBS In / Out (BNC )
1/0
VGA In / Out
1/0
DVI In / Out
1/0
HDMI In/Out
1/0
DEBUG(USB)
1/0
control
IR remote control
Yes
RS-232 In/Out
1/2
Physical
Dimension
46 inch : 1021.98mm(W) x576.57mm(H) x121.7mm(D)
55 inch : 1213.5mm(W) x684.3mm(H) x118mm(D)
Frame color
Black
Frame material
Metal
Net weight
18.6Kg / 30Kg
Power
Power consumption
≦190W / ≦250W
Standby
<1W
Power supply
AC 100V-240V, 50/60Hz,Universal,±10%
Environment
Operating humidity
20-90% RH(no condensation)
Storage humidity
10-90% RH (no condensation)
Operating temperature
0 ~ 50° C / 32 ~ 122° F
Storage temperature
-20 ~ 60° C / -4 ~ 140° F


500 Nits 8ms Digital Signage Display Bezel 3.5mm Floor Stand video

FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
