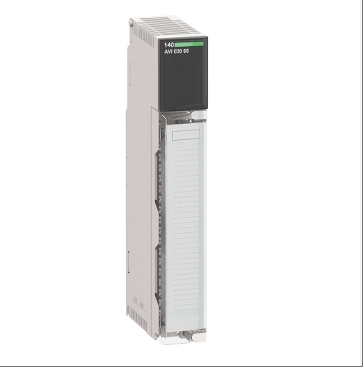

8 Analog Inputs Schneider Module Schneider 140AVI03000C Modicon Quantum Series
8 Analog Inputs Schneider Module Schneider 140AVI03000C Modicon Quantum Series
Specifications
Brand Name :
Schneider
Model Number :
140AVI03000C
Place of Origin :
China
MOQ :
1
Price :
$99
Payment Terms :
T/T
Supply Ability :
5000
Delivery Time :
In stock/1-3days
Packaging Details :
New sealed
Certifications :
CE, UL, CSA
Material :
Varies depending on model
System Module :
PLC Controller
Input Voltage :
24 VDC -15% / +20%
Power Supply :
Varies depending on model
Warranty :
1 year
Description

140AVI03000C Schneider Relay Module

140AVI03000C is a PLC module from Schneider Electric's Modicon Quantum series, belonging to the IO module type, with analog input function. It has 8 input channels and analog input resolution of 12 or 16 bits (different data may vary). It supports multiple analog input types, such as unipolar voltage (0-5V, 0-10V), unipolar current (0-20mA), bipolar voltage (± 5V, ± 10V), and bipolar current (20mA). The absolute maximum input is 50V DC or 25mA, and the input impedance is greater than 20 ohms. It has high accuracy error (± 0.05% maximum full-scale) and low linearity error (± 0.008%), and also has good temperature offset. Accuracy and common mode rejection capability, suitable for precise acquisition and processing of analog signals in industrial automation control systems.

Technical specifcations for 140AVI03000C
Input quantity and power consumption: 8 analog inputs with a power consumption of approximately 2.2W
Analog input resolution of 16 bits
Analog input types support multiple types such as unipolar voltage (0-5V, 0-10V), unipolar current (0-20mA), bipolar voltage (± 5V, ± 10V), bipolar current (20mA), etc
Absolute maximum input 50V DC or 25mA
Input impedance greater than 20 ohms
Accuracy error: The absolute accuracy error is ± 0.05% of the maximum full-scale, and the linearity error is ± 0.008%
Temperature offset accuracy ≤ 0.004% full-scale/℃ (some data shows ± 0.0015% full-scale/℃)
Common mode rejection>-80dB (60Hz)
Fault type detection supports range (such as 1-5V) and disconnection (such as 4-20mA) detection
Require bus current of 280mA
The isolation voltage between channels is 30V DC
Local signaling is equipped with 8 red LED channel fault indicator lights
Filter type: Single pole low-pass, 3dB at -15Hz ± 20%
