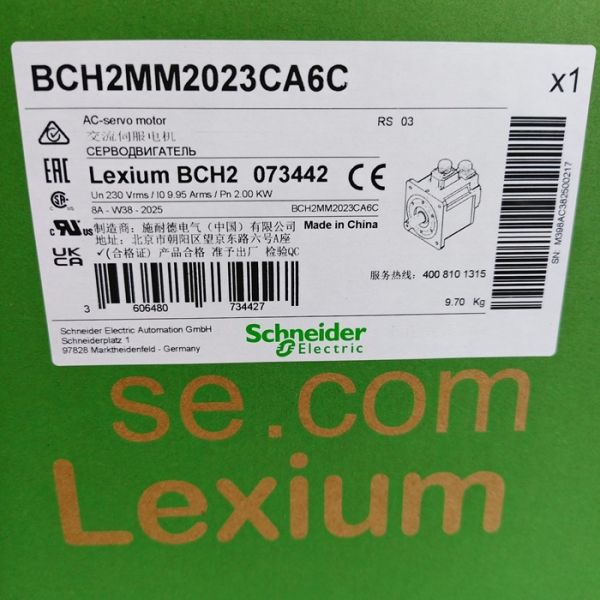

Schneider BCH2MM2023CA6C High-performance Servo Motor:

The Schneider Electric BCH2MM2023CA6C is a high-performance servo motor designed for precision control in industrial automation applications. It belongs to the BCH2 series and is characterized by its compact size, robust construction, and high efficiency. This servo motor is suitable for use in a wide range of industries, including robotics, packaging, textile machinery, and CNC systems.

Technical Specifications:

Model: BCH2MM2023CA6C

Brand: Schneider Electric

Series: BCH2

Power Rating: 2000 W (2.7 HP)

Rated Voltage: 220 V AC (Three-phase)

Rated Current: 11.25 A (or 32.85 A under specific conditions, as different sources may provide varying current ratings based on operational modes or measurement methods)

Rated Speed: 3000 rpm

Maximum Torque: 9.55 N-m (Continuous stall torque)

Peak Torque: Higher than continuous torque, suitable for short-duration overloads

Torque Constant: 0.96 N-m/A

Back EMF Constant: 58 V/krpm

Rotor Inertia: 13.5 kg·cm²

Shaft Diameter: 22 mm (0.87 inches)

Shaft Length: 2.17 inches (55.12 mm)

Flange Size: 130 mm x 130 mm (5.12 inches x 5.12 inches)

Mounting Type: Flange mounting

Cooling Method: Natural convection

Enclosure Rating: IP50/IP65 (depending on configuration, providing protection against dust and limited water ingress)

Operating Temperature Range: -20°C to 40°C

Weight: Approximately 9.7 kg (or 6.92 inches in height, 5.12 inches in width, and 7.36 inches in length for the motor housing, as dimensions may vary slightly based on specific configurations)

Connector Type: MIL Special Features connector for reliable electrical connections

Keyed Shaft: Yes, for secure mechanical coupling

Oil Seal: Included, to prevent contamination and extend motor life

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

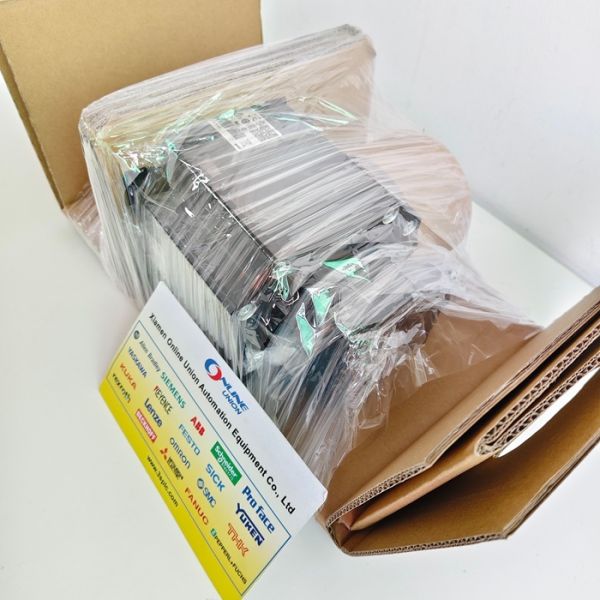

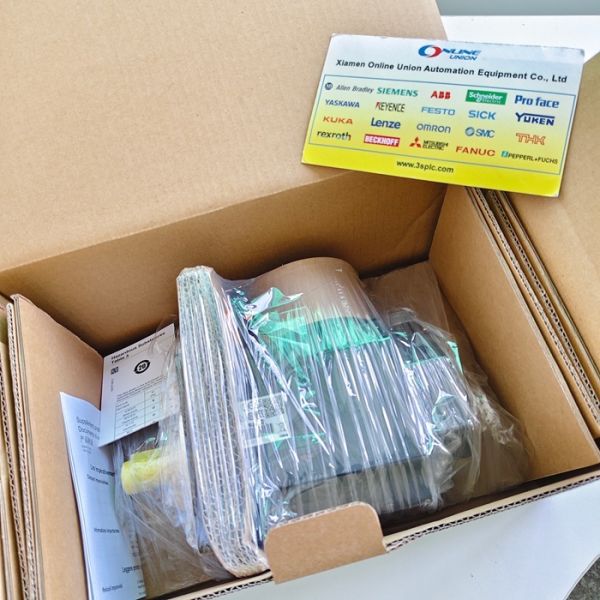

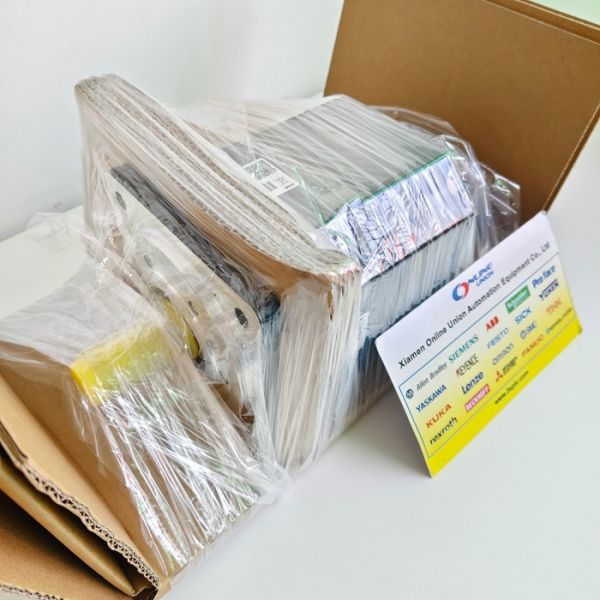

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
