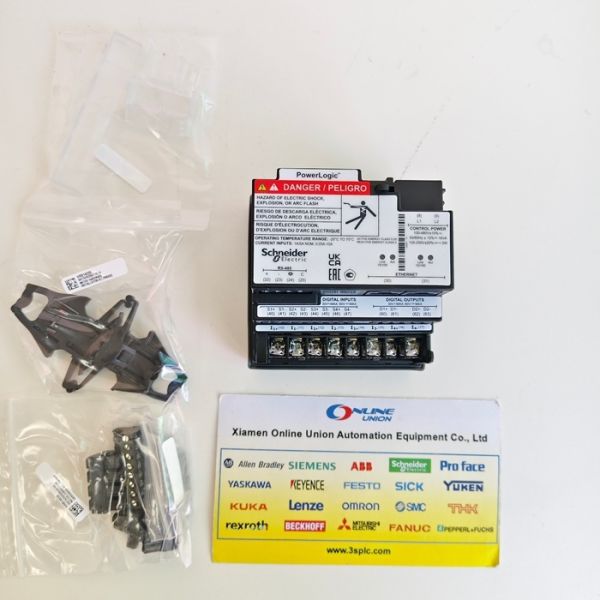

Schneider METSEPM5560 Power Meter PowerLogic PM5560, 2 Ethernet:

The METSEPM5560 is a sophisticated power meter from Schneider Electric's PowerLogic series, designed for precise energy monitoring and analysis. It is a panel-mount meter with an integrated 96 x 96 mm backlit LCD display, fitting into a 1/4 DIN panel cutout. This device is engineered to operate effectively across a wide supply voltage range of 100 to 300 V AC (with some sources indicating it can handle up to 828 V AC under specific conditions), making it adaptable to various electrical systems.

Technical Specifications:

Supply Voltage: 100 to 300 V AC (up to 828 V AC under specific conditions)

Network Frequency: 45 to 65 Hz

Line Rated Current: 1 A / 5 A

Type of Network: 3P + N, 3P, 1P + N

Maximum Power Consumption: 16 VA at 480 V

Display Type: Backlit LCD

Display Resolution: 128 x 128 pixels

Sampling Rate: 128 samples per cycle, providing high-resolution data for accurate measurements

Measurement Accuracy:

Active Power: ±0.2%

Reactive Power: ±1%

Apparent Power: ±0.5%

Voltage: ±0.1%

Current: ±0.15%

Power Factor: ±0.005

Frequency: ±0.05%

Active Energy: ±0.2% (conforming to IEC 62053-22, Class 0.2S)

Reactive Energy: ±1%

Harmonic Analysis: Capable of measuring up to the 63rd harmonic, allowing for detailed power quality analysis

Communication Interfaces:

Ethernet: Modbus TCP/IP, supporting 10/100 Mbit/s with 2500 V isolation

Serial: RS485, supporting Modbus RTU/ASCII with baud rates of 9600, 19200, and 38400

Digital Inputs/Outputs: 4 DI (Digital Inputs) / 2 DO (Digital Outputs)

Alarm Records: 52 alarm records for monitoring and troubleshooting

Data Logging: Event records, maintenance records, min/max instantaneous values, and alarm records with adjustable time intervals

Storage Capacity: 1.1 MB for storing measurement data and logs

Environmental Conditions:

Operating Temperature: -25 °C to 70 °C

Humidity: Up to 95% (non-condensing)

Mechanical Characteristics:

Dimensions: 96 mm (width) x 72 mm (depth) x 96 mm (height)

Weight: 0.43 kg (0.94 lbs)

IP Rating: Front display - IP52; Meter body - IP30 (except connectors); Connectors - IP20 with terminal covers installed, IP10 without terminal covers

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
