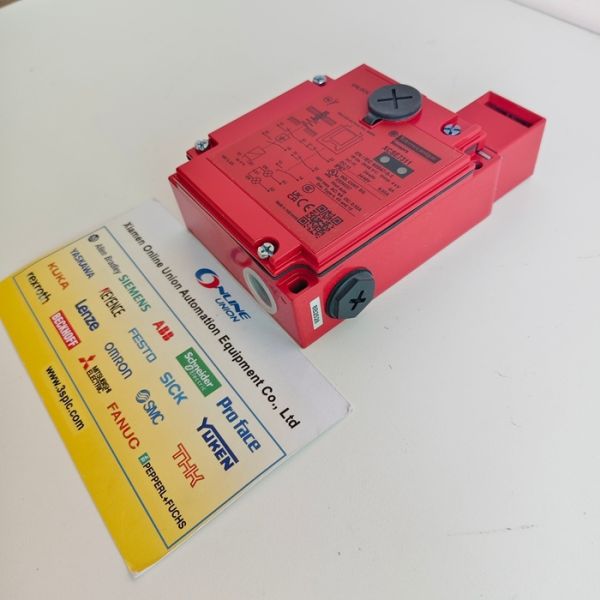

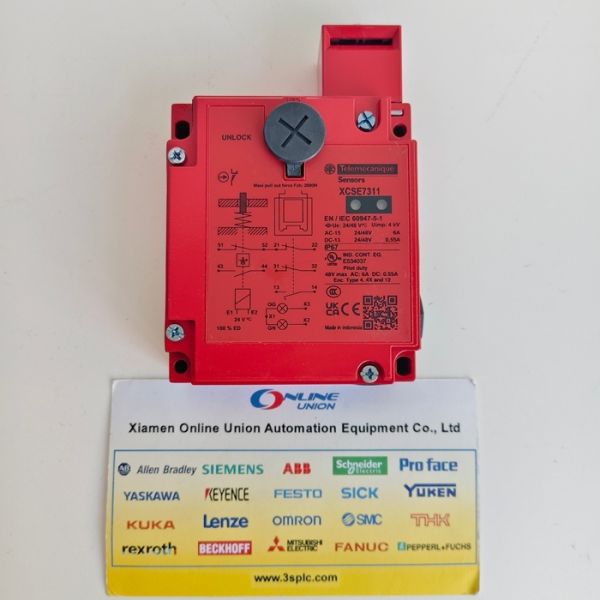

Schneider XCSE7311 Plug-in Safety Door Lock Switch:

The XCSE7311 is a plug-in safety door lock switch from Schneider Electric's Telemecanique Safety switches XCS series. It features a metal housing and is designed for high safety and reliability in industrial applications. The switch is equipped with a key-operated turret head and includes 2 normally closed (NC) contacts and 1 normally open (NO) contact. The contacts operate with a slow-break, break-before-make action, ensuring safe operation. The switch also includes an electromagnetic locking mechanism that locks when the solenoid is de-energized and unlocks when energized, providing an additional layer of safety.

Technical Specifications:

Product Series: Telemecanique Safety switches XCS

Component Name: XCSE

Design: Rectangular, metal housing

Manipulation Head Type: Key-operated turret head

Contact Type: 2 NC + 1 NO

Contact Action: Slow-break, break-before-make

Electromagnetic Contact Type and Composition: 1 NC + 1 NO (slow-break, simultaneous)

Cable Entry: 2 entries tapped Pg 13.5

Electromagnetic Locking: Locks on de-energization and unlocks on energization of the solenoid

Rated Supply Voltage: 24 V (-20...+10%)

Cable Outer Diameter: 9...12 mm

Electrical Connection: Terminal, 1 x 0.5...2 x 1.5 mm² with or without cable end

Number of Poles: 3

Locking Description: With interlocking, locking by solenoid

Local Signaling: 2 LEDs (green or orange) for guard open/guard closed and locked status

Signaling Circuit Voltage: 24/48 V (voltage limits: 20...52 V)

Rated Operational Current [Ie]:

0.55 A at 126 V, DC-13, Q300 (conforming to EN/IEC 60947-5-1)

0.27 A at 250 V, DC-13, Q300 (conforming to EN/IEC 60947-5-1)

3 A at 120 V, AC-15, B300 (conforming to EN/IEC 60947-5-1)

1.5 A at 240 V, AC-15, B300 (conforming to EN/IEC 60947-5-1)

Rated Insulation Voltage [Ui]: 50 V for signaling circuit (conforming to EN/IEC 60947-1)

Rated Impulse Withstand Voltage [Uimp]: 6 kV (conforming to EN/IEC 60947-5-1)

Power Consumption: 10 VA (sealed), 10 VA (inrush)

Mechanical Durability: >= 1,000,000 cycles

Minimum Actuation Speed: 0.01 m/s

Maximum Actuation Speed: 0.5 m/s

Operating Force: 20 N

IP Rating: IP67 (conforming to EN/IEC 60529 and EN/IEC 60947-5-1)

Operating Temperature: -25...40°C

Storage Temperature: -40...70°C

Vibration Resistance: 5 gn (f = 10...500 Hz) (conforming to IEC 60068-2-6)

Shock Resistance: 10 gn for 11 ms (conforming to IEC 60068-2-27)
