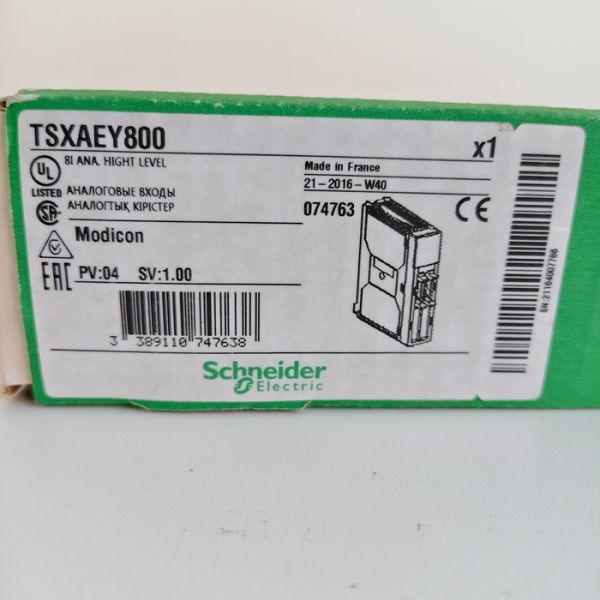

Schneider TSXAEY800 Analog Input Module, Modicon Premium:

The TSXAEY800 is an analog input module designed by Schneider Electric, primarily intended for integration with TSX Micro PLCs (Programmable Logic Controllers). It serves as a key component in industrial automation systems, enabling precise monitoring and control of various process variables by converting analog signals from sensors into digital data for PLC processing. This module is widely utilized in manufacturing, energy management, water treatment, and building automation sectors, where accurate analog signal processing is crucial.

Technical Specifications:

Manufacturer: Schneider Electric

Product Type: Analog Input Module

Part Number: TSXAEY800

Product Line: TSX Micro PLCs

Weight: Approximately 0.45 kg (1.00 lbs)

IP Degree of Protection: IP20 (suitable for indoor use)

Number of Inputs: 8 high-level inputs

Input Types:

Current: 0-20 mA, 4-20 mA

Voltage: ±10 V, 0-10 V, 0-5 V, 1-5 V

Analog/Digital Conversion: 12-bit resolution, ensuring precise signal conversion

Mechanical Characteristics:

Dimensions: 132 mm x 105 mm x 52 mm

Enclosure: IP30 protection rating, aluminum housing with corrugated design for enhanced strength

Installation: 35 mm DIN rail mounting for easy integration into control panels

Operating Environment:

Temperature Range: -10°C to 70°C (with an extended range of -40°C to +85°C available as an option)

Relative Humidity: ≤90% (non-condensing)

Storage Temperature: -40°C to 80°C

Testing and Certifications:

Compliant with various IEC standards for electromagnetic compatibility and immunity, including ESD, RS, EFT, Surge, CS, and MS tests.

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

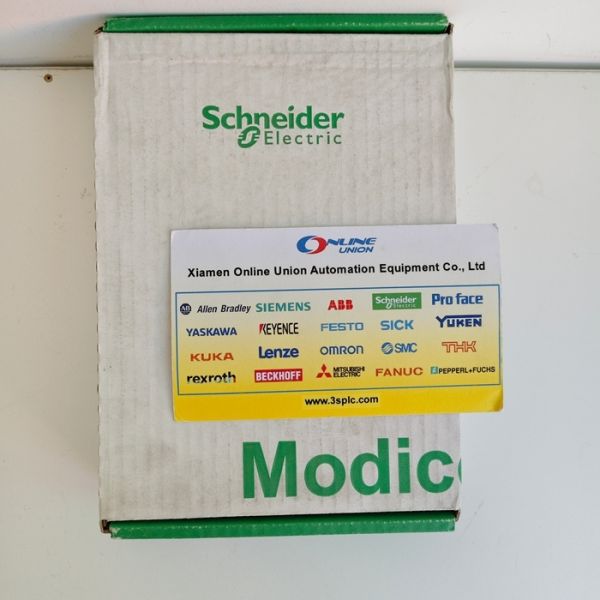

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
