1000W-3000W Fiber Continuous Laser Welder For Prismatic Battery Connector Welding
1000W-3000W Fiber Continuous Laser Welder For Prismatic Battery Connector Welding
Specifications
Description

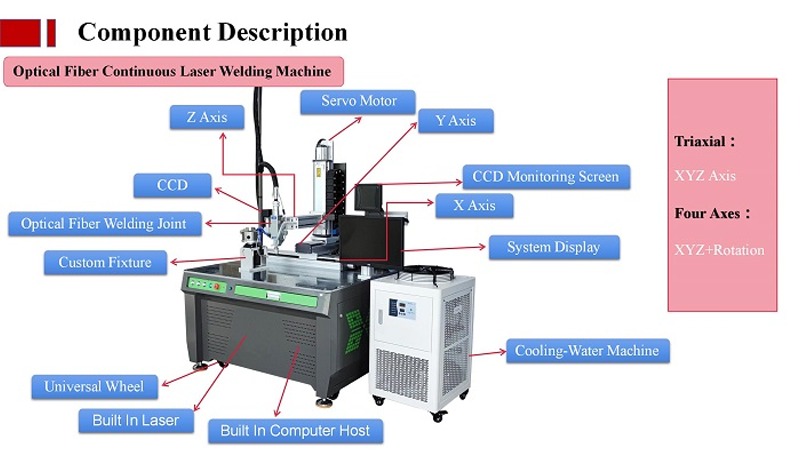

1000W-3000W Fiber Continuous Laser Welder For Prismatic Battery Connector Welding
Laser Welding Principle

The laser emitted by the generator undergoes a series of processing and is highly concentrated into a very small range through lens focusing. When the processed material effectively absorbs the laser, the irradiated area rapidly heats up as it absorbs laser energy. Depending on material properties (such as melting point, boiling point, and chemical change temperatures), the workpiece undergoes various physical or chemical changes including melting, vaporization, oxide formation, and discoloration.

1000W-3000W Fiber Continuous Laser Welder For Prismatic Battery Connector Welding
Main Configuration Specifications
Name Qty DPH-1000ZD3-CW-CX-W-533 DPH-1500ZD3-CW-CX-W-533 DPH-2000ZD3-CW-CX-W-533 DPH-3000ZD3-CW-CX-W-533
Laser (W) 1 set TMAX1000 TMAX1500 TMAX2000 TMAX3000
Cooling-Water Machine 1 set HL-1000 HL-1500 HL-2000 HL-3000
Welding Head (Including CCD + Monitor) 1 set ND26/ND15(Optional) ND26/ND15(Optional) ND26/ND24(Optional) ND40/ND24(Optional)
XYZ Axis Stroke mm (Stroke can be customized) 1 set 500*300*300 500*300*300 500*300*300 500*300*300
Control System (Optional) 1 set C6L Four Axis/C6S Six Axis C6L Four Axis/C6S Six Axis C6L Four Axis/C6S Six Axis C6L Four Axis/C6S Six Axis
Industrial Computer 1 set PCI Computer keyboard and mouse with display
Servo (XY Axis) 2 sets 400W large inertia (including driver), 1 set of XY
Servo (Z Axis) 1 set 400W large inertia belt brake (including driver)
