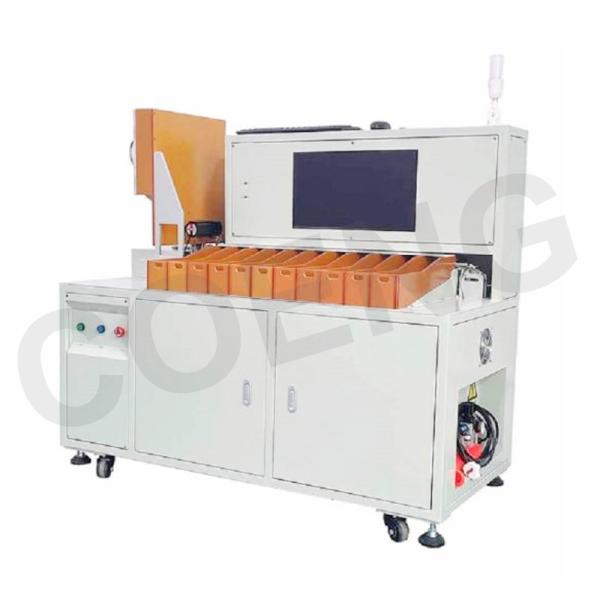

11 Channels Cylindrical Cell Sorting Machine for Voltage and Internal Resistance Testing
Key Features
  • Compact and reasonable equipment structure with beautiful appearance and small footprint
  • Simple operation requiring minimal training for workers
  • Dual control system: PLC for mechanical operations and PC for data collection and sorting
  • Constructed from high-quality thick cold-rolled sheet metal and aluminum frame
  • Equipped with universal movable casters for easy relocation
Technological Process

The automated process includes: manual battery feeding → wave wheel rotating feeding → belt carrying → ejector cylinder jacking → test cylinder closure (data collection and software sorting) → mechanical gripper sorting. The system features acousto-optic alarms for completed sorting, full material alerts, and fault notifications.

Technical Specifications
Parameter Specification
Power Supply AC220V ± 10% 50Hz
Power Consumption 900W
Sorting Parameters Open Circuit Voltage and AC Internal Resistance
Compressed Air Pressure 0.4 ~ 0.6Mpa
Sorting Speed ≥80PPM
Productivity 4800pcs/h
Dimensions 1320×880×1450mm
Compatible Batteries Cylindrical Cells (18650, 32650, 18500, 26650, 14500, 21700, etc.)
Receiving Channels 11 channels
Total Weight 280kg
Control Components 7.5 inch touch screen, 3-axis PLC programmer
Internal Resistance Tester Options
HK 3561 Tester HIOKI 3561 Tester
Internal Resistance:
Range: 10μΩ-3.2kΩ
Accuracy: ±0.5% rdg

Voltage:
Range: 0V-60V
Accuracy: 0.1% 		Resistance:
310.00mΩ / 3.1000Ω
Accuracy: ±0.5% rdg. ±5dgt.

Voltage:
±19.9999V
Accuracy: ±0.01% rdg. ±3dgt.
Additional Features
  • Closed-loop stepper motor for precise positioning
  • Hopper feeding capacity: 500 cells per load
  • Data storage via USB drive
  • Optional barcode scanning functionality
  • Automatic online interface for system integration
  • Production quantity tracking and efficiency monitoring
  • Customizable options available
Equipment Configuration
Component Specification
Tester HIOKI3561 or HK3561
Computer Industrial Computer
PLC FX3U-80MT/ES-A and SC-09
Servo Panasonic A5 Series
Sensors Panasonic and Omron (Japan)
Guideway ShangYin (Taiwan)
Bearing Japan NSK
Cylinder Adec
Operating Temperature -30℃ ~ 70℃
Environment No pollution and no strong electromagnetic interference

Available Options: 5-channel and 11-channel configurations for cylindrical cell sorting (18650/21700/26650/32650/32700). The 11-channel model includes computer data recording functionality. Customizable scanning and database integration available.
