CCD Positive And Negative Pole Visual Inspection Tester For Cylindrical Battery Pack Assembly Line
CCD Positive And Negative Pole Visual Inspection Tester For Cylindrical Battery Pack Assembly Line
Specifications
Description
CCD Positive And Negative Pole Visual Inspection Tester For Cylindrical Battery Pack Assembly Line
Introduction

CCD vision detection equipment utilizes machine vision technology with CCD image sensors to capture images and convert them into digital signals. These signals are processed through specialized image processing systems that analyze pixel distribution, brightness, color, and other characteristics to extract target features and control field equipment actions based on discrimination results.

This equipment serves as a valuable replacement for human visual inspection in production, assembly, and packaging operations. It delivers superior efficiency and accuracy in detecting proper battery placement in series-parallel positive and negative electrodes, as well as identifying products with spot welding defects.

Configuration Parameters
  • Equipment Power: 600W, 220V AC input, 50Hz
  • Core Range: Cylindrical core 14430/14500/18500/18650/21700/26650/32650, etc.
  • Suitable Detection Range: 400 × 300 mm (customizable for larger requirements)
  • Detection Capability: 360-degree rotation position detection after sample collection
  • Operation: Simple parameter settings with one-click start detection mode
  • User Interface: Easy to understand and operate, requiring no on-site training
  • Power Protection: Industrial Control Computer supports sudden power failure functionality with normal database operation
  • Database: Local database specifically for cylindrical cell positive and negative electrode data (other categories not compatible)
  • Detection Speed: 100PCS/1.5 S
  • Testing Accuracy: 100% for cells without deformation or rust
  • Data Storage: Mass storage of product parameters with direct parameter recall for detection
System Configuration
Component Specification
Camera Hikvision 6 million HD industrial camera
Lens Hikvision Ten million class industrial lens
Recognition System Independent research and development
IPC Intel original i7 processor
Motherboard Intel original industrial control motherboard
Operating System Genuine Windows 7 industrial control system
Allowable Material Movement Speed 1.5M/min
Display Pixel 1920 × 1080
Camera Width 400 × 300mm
DC Power Supply Dual Taiwan original Mingwei power supply
Monitor 19 inch display
LED For battery

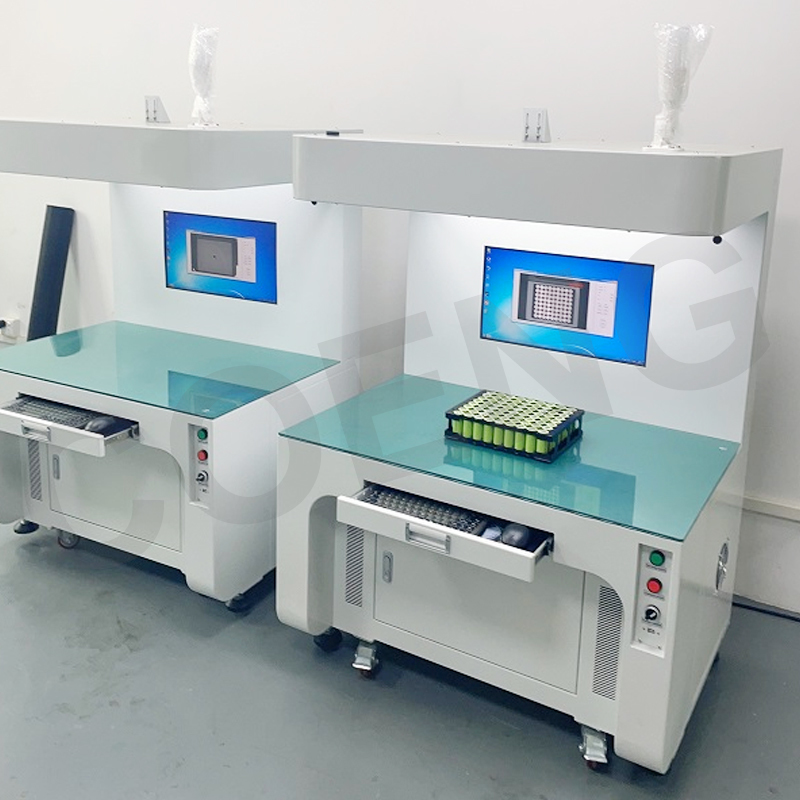

Product Images
CCD Positive And Negative Pole Visual Inspection Tester For Cylindrical Battery Pack Assembly Line CCD Positive And Negative Pole Visual Inspection Tester For Cylindrical Battery Pack Assembly Line
