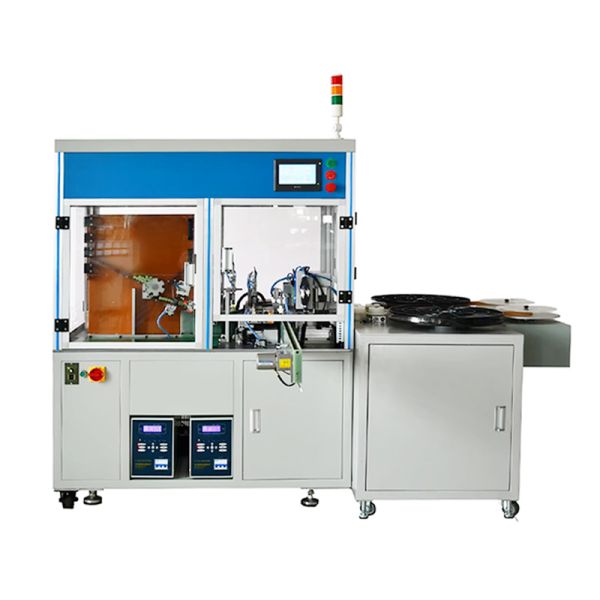

14430 Lithium Battery Making Machine Nickel Strip Cutting Lithium Spot Welder
14430 Lithium Battery Making Machine Nickel Strip Cutting Lithium Spot Welder
Specifications
Description
14430 Lithium Battery Making Machine Nickel Strip Cutting Lithium Spot Welder
Product Characteristics
  • Imported Tungsten Steel Cutter, durable
  • Standard Internal Resistance Tester HK35615
  • Good uniformity of vertical position of lead-out plate
  • Automatic welding of shaped nickel plate
Technical Specifications
Specification Details
Battery Range 14430/14500/186500/18650/21700 customized
Power AC220 50/60Hz 8KW
Productivity About 1300 pcs/h
Spot Welding Power BT-5000A DC spot welding power, 2 sets
Welding Output Power Max 6000A
Air Pressure 0.4-0.8Mpa, No water, no impurities
Spot Welding Pin 1.5*100mm
Nickel Sheet Thickness 0.08-0.15mm
Nickel Sheet Max Width Customized
Run Power 750W Servo control
Control Device PLC touch screen control
High Temperature Glue Width 10mm
High Temperature Glue Feeding Length 10-20mm
Nickel Sheet Thickness Exposed Length ≥2.5mm
Nickel Sheet Max Outer Diameter 500mm
Dimensions L2250*W1700*H1820MM
Weight About 50kg
Quality & Support
Engineers available to service machinery overseas
Video technical support
Free spare parts
Online support
Warranty: 2 Years | Certification: ISO9001
