Equipment For Cylindrical Lithium-Ion Battery Production Line
Equipment For Cylindrical Lithium-Ion Battery Production Line
Specifications
Description
Equipment For Cylindrical Lithium-Ion Battery Production Line
Equipment For Cylindrical Lithium-Ion Battery Production Line Equipment For Cylindrical Lithium-Ion Battery Production Line

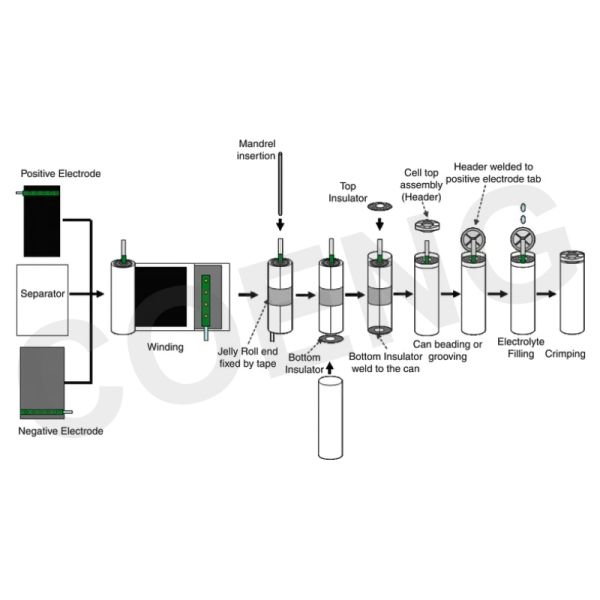

Production Process Equipment
No. Process Equipment Name
1 Raw material baking Vacuum Drying Oven with Tri-Level Shelf Heating Modules
2 Vacuum Mixing Large Planetary Vacuum Mixer with Vacuum Pump and Water Chiller
3 Slurry viscosity Test Digital Touch Screen Viscometer
4 Vacuum Mixing Turnover Bucket (with Lifting Flame)
5 Magnetic De-Ironing Filtration Magnetic De-ironing Filtration System for Battery Electrode Slurry
6 Electrode Coating 3 Rollers Battery Electrode Intermittent Coating Machine
7 Waste Gas Treatment Solvent Processing System Waste Gas Treatment Equipment
8 Roll press Roll to Roll Pressure Controlled Rolling Press Machine
9 Electrode Sheet Cross Cutting Lithium Battery Electrode Sheet Cutter Machine for Battery Big Electrode Cutting after Coating Process
10 Electrode Sheet Slitting Battery Electrode Roll Slitting Machine
11 Sticking glue of lithium ion battery electrode Lithium ion Battery Electrode Piece Sticking Machine
12 Tab Welding Al Tab Ni Tag Ultrasonic Welding Machine
13 Electrode Winding Automatic Precision Winding Machine
14 Put the cell into the battery shell, and weld the negative electrode lug and the negative electrode shell with a spot welder Precision High Frequency Inverter DC double Pulse Spot Welding Machine
15 Short circuit testing Short Circuit Tester
16 The battery shell is formed by rolling groove, which is convenient for sealing Floor-stand Automatic Grooving Machine for Batch Processing of Cylindrical battery Castings
17 Cylindrical Cell Cap Laser Welding Laser Welding Machine
18 Filling the electrolyte into the battery Automatic Precision Electrolyte Injection Station for Cylindrical Cell Batteries
19 Sealing the cylindrical cell cases Automatic Cylindrical Cell Crimping Machine
20 Cell Formation and capacity testing 512 Channel Lithium Ion Battery Tester Equipment
21 Print numbers to cylindrical cells Continuous Small Character Ink Jet Printer
22 Remove the moisture from the battery production process to ensure the quality of the battery Dehumidification and Drying System
23 Vacuum pumping Monoblock Rotary-vane Vacuum Pump
24 Provide compressed gas for each battery production machine Helical Compressor
