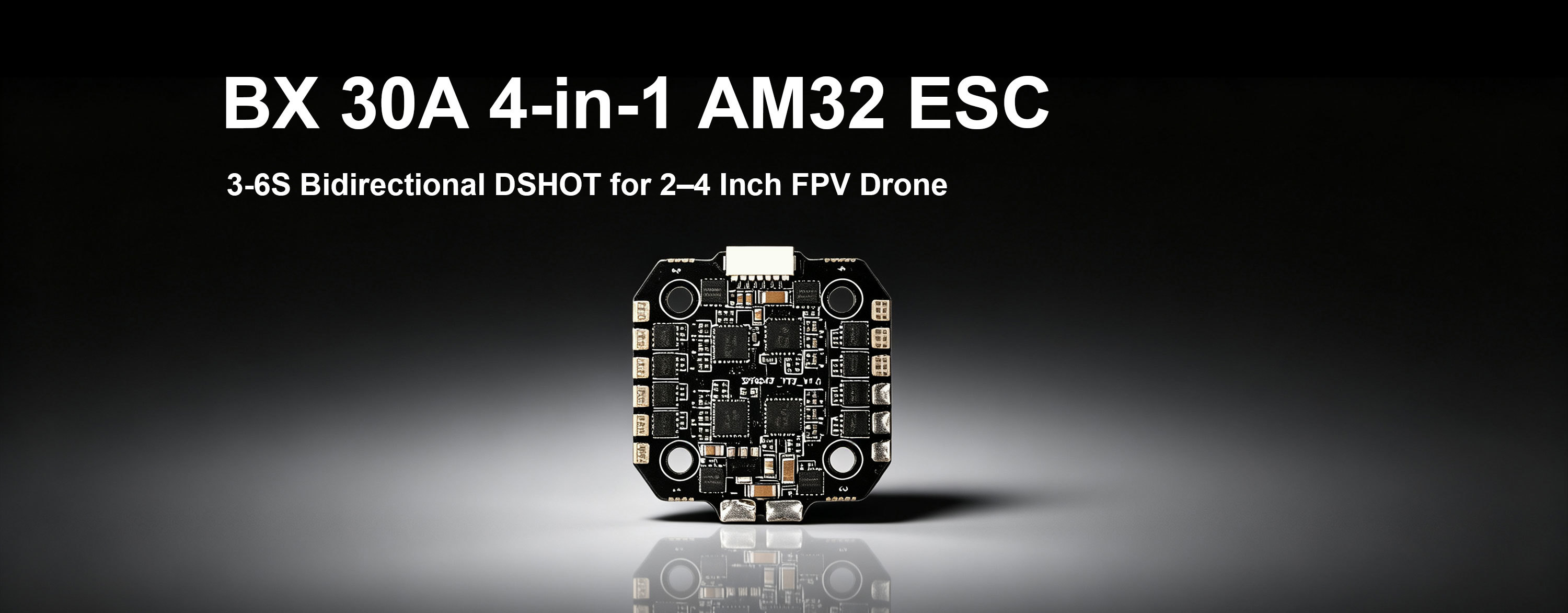

ZTW BX 30A 4 in 1 AM32 ESC 3S-6S Bidirectional DSHOT for 2–4 Inch FPV Drone
ZTW BX 30A 4 in 1 AM32 ESC 3S-6S Bidirectional DSHOT for 2–4 Inch FPV Drone
ZTW BX 30A 4 in 1 AM32 ESC 3S-6S Bidirectional DSHOT for 2–4 Inch FPV Drone
ZTW BX 30A 4 in 1 AM32 ESC 3S-6S Bidirectional DSHOT for 2–4 Inch FPV Drone
ZTW BX 30A 4 in 1 AM32 ESC 3S-6S Bidirectional DSHOT for 2–4 Inch FPV Drone
ZTW BX 30A 4 in 1 AM32 ESC 3S-6S Bidirectional DSHOT for 2–4 Inch FPV Drone
Specifications
Continuous/ Burst Current :
30A/35A
Size :
34×32×6.5mm
Weight :
7g
Firmware :
AM32
Model Name :
BX 30A 4-in-1 AM32
Input Voltage :
3-6S LiPo
Description

Built for Micro & Toothpick Builds

The 30A 4-in-1 is the smallest in the BX lineup, designed for 2–4 inch toothpick, micro quad, and lightweight cinewhoop frames where every gram counts. At 7g and a 20×20mm/M3 mounting pattern, it drops directly into micro stacks without adding unnecessary weight.

120MHz Processor with Bidirectional DSHOT

Powered by the AT32F421 running at 120MHz, this ESC supports bidirectional DSHOT300 and DSHOT600 — enabling Betaflight's RPM-based filtering for dramatically lower motor noise and smoother flight feel. The high clock speed ensures zero lag between stick input and motor response.

AM32 Firmware with Web Tuning

Running open-source AM32 firmware, the ESC offers a user-friendly web-based tuning interface — adjust motor timing, PWM frequency, and startup power without installing desktop software. Ready to fly out of the box with default settings tuned for micro builds.

Clean Power Delivery

Equipped with a 220µF low-ESR capacitor and 14AWG power leads with an Amass XT30 plug, the 30A handles 3-6S LiPo with stable voltage under load. The 6Pin+8Pin SH1.0 flight controller connector ensures a secure, low-resistance link to your FC.

Full Protection Suite

Built-in over-temperature, low-voltage, and signal-loss protection keep your micro drone safe during aggressive freestyle or proximity flying. The compact 6.5mm-thick PCB fits inside even the tightest micro canopies.

ZTW BX 30A 4 in 1 AM32 ESC 3S-6S Bidirectional DSHOT for 2–4 Inch FPV Drone


Specifications BX-30A 4in1 BX-60A 4in1 BX-80A 4in1 BX-100A 4in1
Continuous Current (per ch.) 30A 60A 80A 100A
Burst Current (per ch.) 35A 80A 100A 120A
Input Voltage 3-6S LiPo 3-6S LiPo 4-8S LiPo 4-8S LiPo
MCU / Clock AT32F421 / 120MHz AT32F421 / 120MHz AT32F421 / 120MHz AT32F421 / 120MHz
Protocol PWM / DSHOT300 / DSHOT600 (Bidirectional) PWM / DSHOT300 / DSHOT600 (Bidirectional) PWM / DSHOT300 / DSHOT600 (Bidirectional) PWM / DSHOT300 / DSHOT600 (Bidirectional)
Firmware AM32 AM32 AM32 AM32
Recommended Frame 2–4 inch 5–7 inch 7–10 inch 12–14 inch
Mounting Hole 20×20mm / M3 30.5×30.5mm / M4 30.5×30.5mm / M4 30.5×30.5mm / M4
Battery Plug XT30 (Amass) XT60 (Amass) XT90 (Amass) XT90 (Amass)
FC Connector 6Pin + 8Pin SH1.0 8Pin SH1.0 ×2 8Pin SH1.0 ×2 8Pin SH1.0 ×2
Capacitor 220µF / 35V 2200µF / 35V 2200µF / 35V ×2 2200µF / 35V ×2
Size (L×W×H) 34×32×6.5mm 42×41×6.5mm 57×54×6.5mm 57×54×6.5mm
Weight 7g 16g 27g 27g
