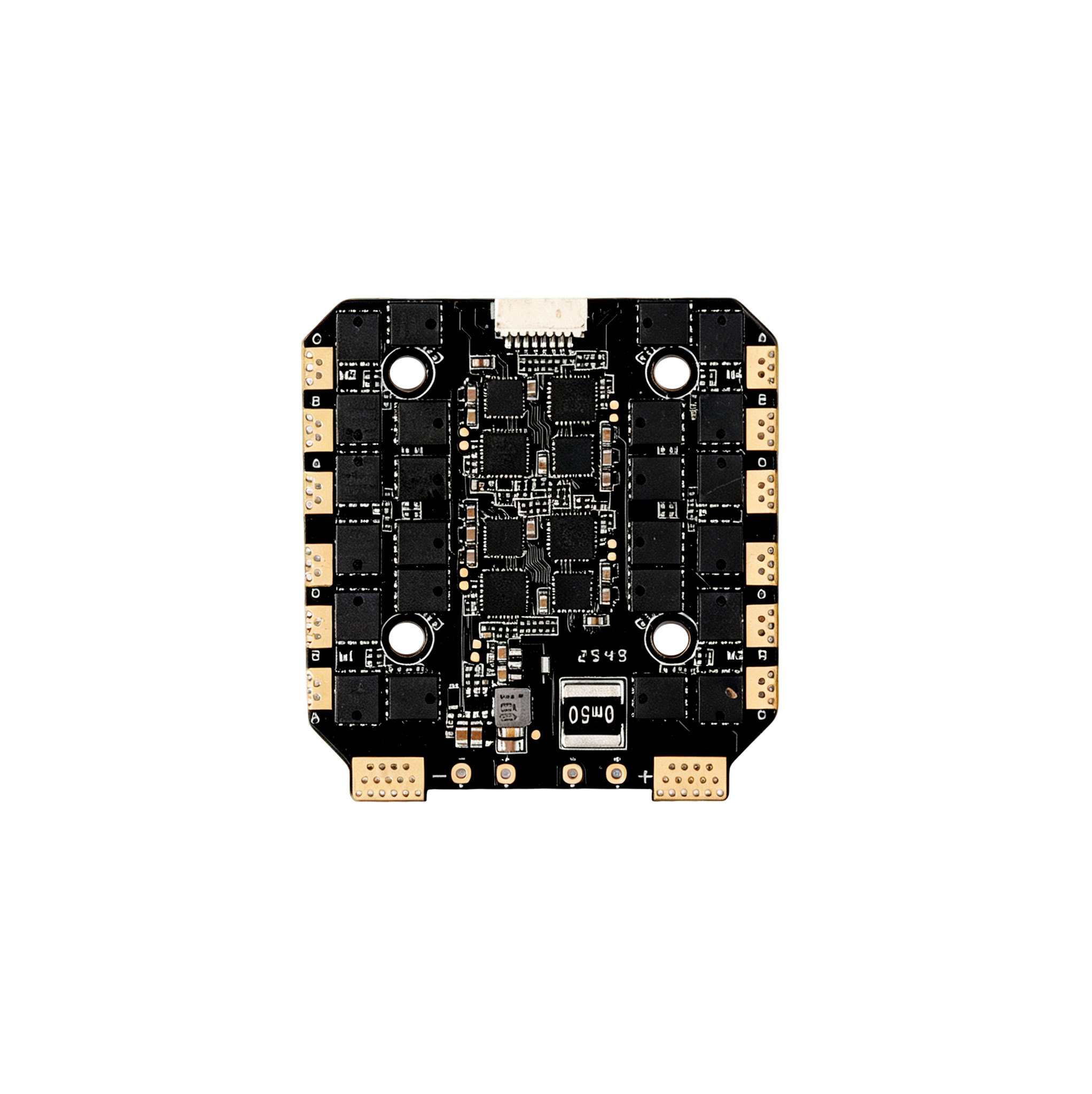

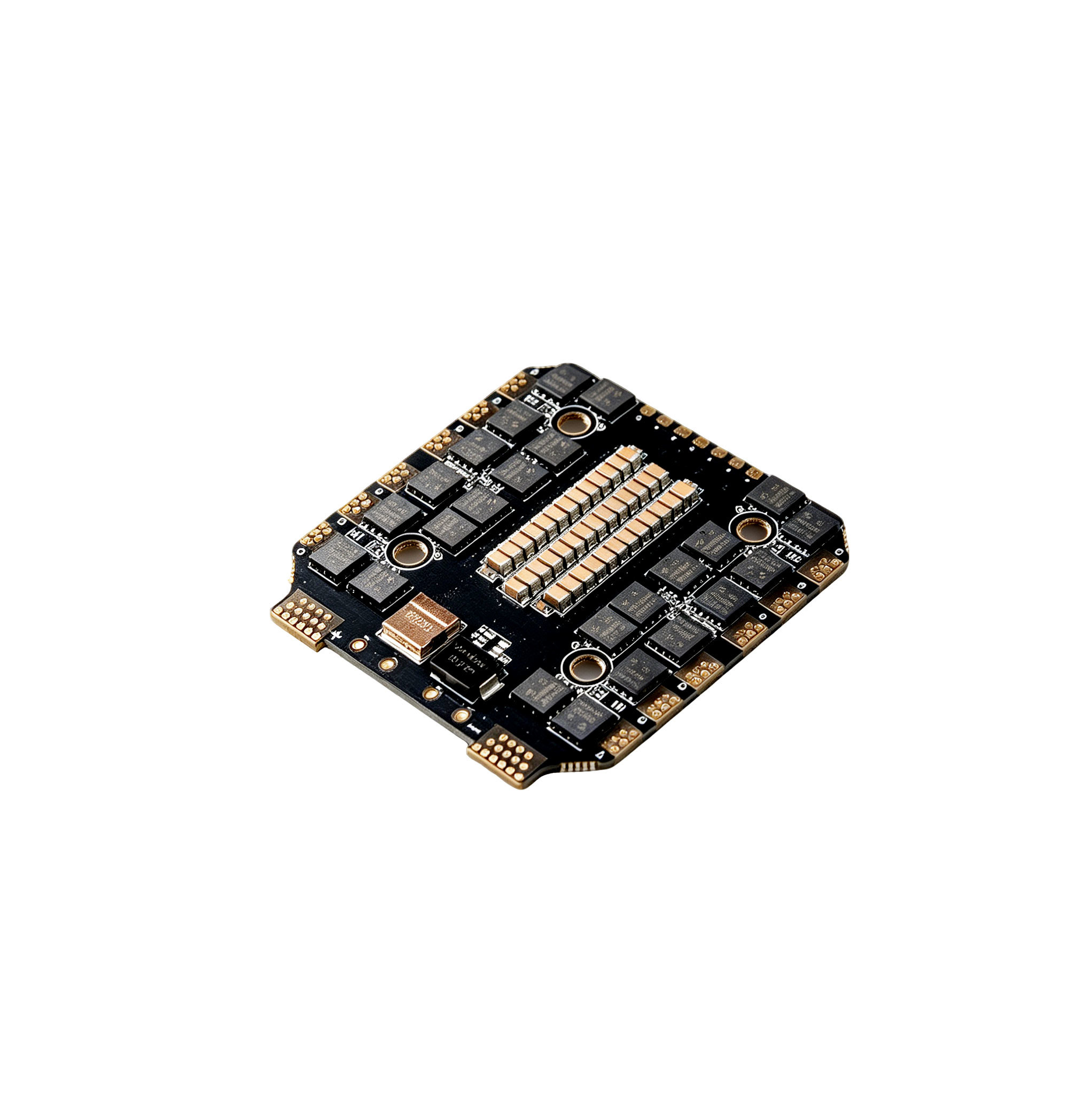

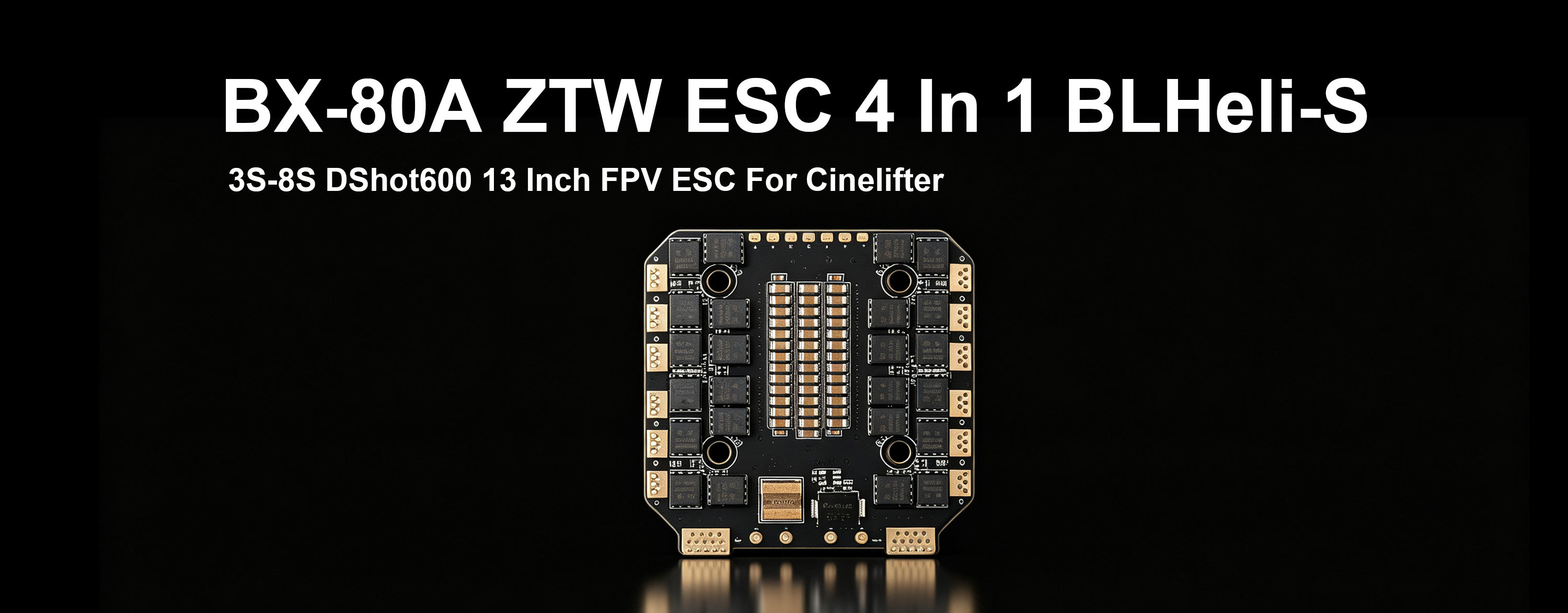

ZTW BX-80A 4in1 ESC BLHeli-S 3-8S DShot600 for 13 Inch FPV Long-Range, Cinelifter and 7kg Payload Multirotor

80A Per Channel for 13 Inch & 7kg Payloads

The BX-80A 4in1 delivers 80A continuous and 100A burst per channel on 3-8S LiPo — designed for 13 inch long-range cruisaders, cinelifters, X8 coaxial platforms, and multirotor systems carrying up to 7kg of payload.

8S High-Voltage Capability

Supports up to 8S LiPo, enabling high-voltage, low-current setups that reduce wire losses and extend flight time on long-endurance and heavy-payload missions where every gram of battery weight matters.

BLHeli-S with DShot600

Proven BLHeli-S firmware with damped-light regenerative braking delivers smooth, silent motor control. DShot150/300/600, Oneshot, Multishot, and PWM support ensures compatibility with all modern flight controllers.

6-Layer 3oz Copper PCB

The heavy-duty six-layer board with 3-ounce copper maximizes current capacity and heat dissipation, keeping MOSFET temperatures in check during sustained full-throttle climbs and heavy-payload operations.

Compact 57mm Footprint

At 57×54×6.5mm and 25g, the 80A ESC fits standard 30.5mm M4 mounting patterns found on most 13 inch, X8, and cinelifter frames — high current capacity without a bulky enclosure.

Pre-Soldered XT90 & Dual FC Cables

Amass XT90 battery connector handles high currents, while dual SH1.0 8-pin FC cables provide clean signal and power routing to the flight controller for a reliable, tidy stack.

Reliable in Demanding Conditions

The robust PCB design and quality components deliver consistent performance across extended operating temperatures, making the 80A suitable for professional aerial platforms and long-endurance missions where reliability is critical.
