Specifications
Brand Name :
ZHONGTUO
Certification :
ISO9001: 2000, CE
Place of Origin :
China
MOQ :
1PC
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7-15Days
Packaging Details :
Wooden Case
Model NO. :
Q350/400/450/500
Product Capacity :
<40t/h
Engine Power :
8.5-10kw
Automatic Grade :
Automatic
Cutting Depth :
180-200mm
Transport Package :
Wooden Case
Size :
103*63*108cm
Description

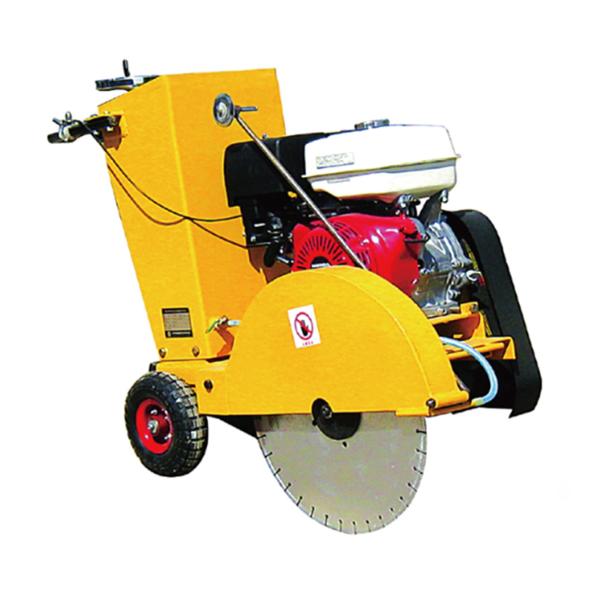

Hand Push Concrete Cutter Diesel Pavement Cutter

Product Description of Concrete Diesel Pavement Cutter

The road-cutting machine is specially designed for municipal construction and selection, road maintenance and construction, airport road cutting, communication engineering burial, floors, driveways,and other field operations. It mainly cuts cement floors and concrete floors, and reinforced concrete floors can also be cut.
The road-cutting machine adopts a diamond blade for cutting, which has the advantages of fast cutting speed, smooth and beautiful incision, and can cut steel bars in concrete; simple structure, firmness, durability, reliability, flexible and convenient operation, and durability; the cutting machine has its own water source for cutting blades Spray to make the blade last longer. The product is powerful, easy to move, and easy to operate.


Technical Parameter of Concrete Diesel Pavement Cutter

Model TZ-400 TZ-500
Engine Power 8.5kw 10kw
Cutting Width 5mm 6mm
Cutting Depth 180mm 200mm
Slice Diameter 400mm 500mm
Weight 130kg 150kg

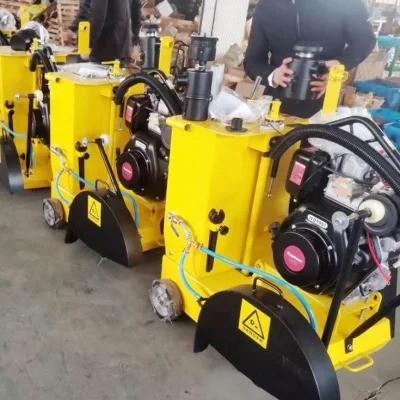

ISO9001 Hand Push Concrete Cutter 8.5KW To 10KW Diesel Pavement Cutter

Application of Concrete Diesel Pavement Cutter

The road-cutting machine is widely used in the cutting of asphalt, cement pavement, concrete products, stone, etc. in many industries such as municipal, construction, building materials, highways, bridges, tap water, thermal pipelines, airport construction, etc.

The road-cutting machine is specially designed to provide professional cutting for on-site operations such as municipal construction re-election, road maintenance, and construction, airport road cutting, communication engineering burying, floors, and driveways.

Different types of saw blades can be replaced during use, which can effectively cut new and old concrete and asphalt pavements and can be loaded with water tanks for motorized cutting operations with water.

This machine is mainly used for cutting concrete, cement, floor, and stone pavement; cutting pavement shrinkage joints or damaged pavement, its operation is simple, and it is more convenient in the condition of no power supply.

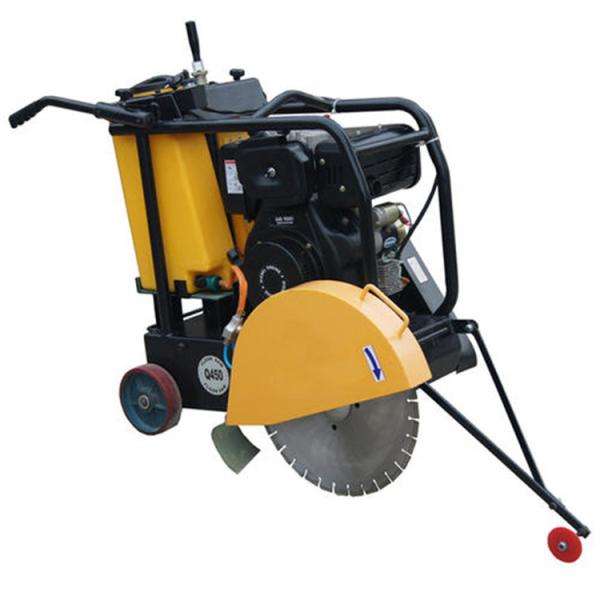

ISO9001 Hand Push Concrete Cutter 8.5KW To 10KW Diesel Pavement Cutter

Advantages of Concrete Diesel Pavement Cutter

1. Adjustable or the handle is equipped with a shock absorption device, which makes the operation comfortable and simple, which is superior to other models.

2. The reinforced protective steel cover can effectively protect the engine and prolong the service life of the machine.

3. Save maintenance costs: fully enclosed belt protection cover, from dust damage to the belt.

4. The detachable water tank is equipped with an extra large water inlet and quick connection head, making it easier and simpler to add water each time.

In a word, the road cutting machine has the advantages of simple structure, stable cutting, fast speed, straight cutting, and smooth cutting, so it has high efficiency and flexible operation.
