Specifications
Brand Name :
ZHONGTUO
Certification :
CE; ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7-15Days
Model :
12T-540; 12T-640
Voltage :
220V
Power :
4/7.5KW(5ph)
Frequency :
50/60HZ
Disc quantity :
6/12
Weight :
155/290kg
After-sales Service :
Tracking Guidance & Service
Warranty :
One Year
Description

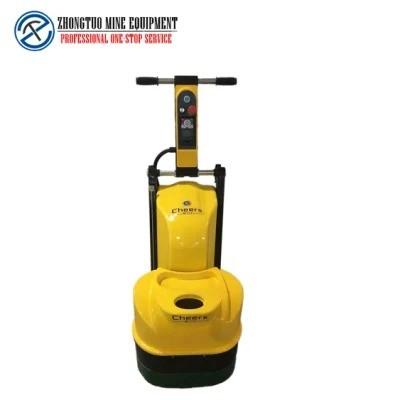

Description of Handheld Concrete Floor Grinder Polishing Machine

The grinder is mainly used for the grinding treatment of large or medium-scale ground. It can effectively grind the concrete surface, epoxy mortar layer, and old epoxy floor. It has the characteristics of lightness, flexibility, and high work efficiency. With a vacuum cleaner power socket, the vacuum cleaner power cord can be directly connected to the grinder, avoiding the trouble of needing 2 power cords when working. Equipped with special grinding discs, it can also be used for ground renovation and polishing. It is ideal equipment for floor engineering treatment.

Technical parameter of Handheld Concrete Floor Grinder Polishing Machine

Model
12T-540
12T-640
Voltage
220V 220V
Phase
1/3Phrase 1/3Phrase
Power
4KW(5ph) 7.5KW(5ph)
Frequency
50/60HZ 50/60HZ
Working width
540mm 630mm
Disc quantity
6 12
Rotating speed
1000-1800rpm 1000-1800
Water tank volume
36L 60L
Weight
155kg 290kg

Advantages of Handheld Concrete Floor Grinder Polishing Machine

1, When some edge grinding, shroud sections can be taken off ;

2,180T turns its head right up to the wall, grinding the side of the wall;

3, Foldable handle for easy transportation.

220V Planetary Floor Grinder Machine 540mm 630mm Concrete Surface Grinder

Application fields of Handheld Concrete Floor Grinder Polishing Machine

Introduction of concrete grinder: Concrete grinder is also called a concrete grinder, floor grinder, etc. It is mainly used in high-speed rail, highways, floors, and other aspects. There are different names for different usages. In the industry market, concrete grinders are classified into various categories: classified by working method: dry grinding grinder, terrazzo machine, dry and wet mixed grinder; classified by drive method: motor-driven grinder, engine-driven grinder: classified by industry: Floor grinder, high-speed rail grinder, bridge deck grinder, etc. The purpose of the grinding machine: The grinding machine is mainly used for grinding the concrete surface, so that the concrete surface is smooth and smooth, and the roughness and flatness requirements are met so that the level error of the concrete surface can meet the technical requirements.

220V Planetary Floor Grinder Machine 540mm 630mm Concrete Surface Grinder

Our company independently produces floor grinding machines, grinding machines, polishing machines, milling machines, vacuum cleaners, and other floor machinery. At the same time, we provide high-quality accessories sales services to help floor builders complete groundwork projects efficiently, with high quality, and easily.
