Solar Photovoltaic Cleaning Equipment Remote Control Automatic Solar Panel Cleaning Robot
Solar Photovoltaic Cleaning Equipment Remote Control Automatic Solar Panel Cleaning Robot
Specifications
Brand Name :
ZT
Model Number :
ZT-400
Certification :
CE ISO
Place of Origin :
China
MOQ :
1PC
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/month
Delivery Time :
5-10 Work Days
Packaging Details :
Wooden Case
Product Name :
Remote control cleaning robot
Max control distance :
150meter
FrameRoller brush length :
1100mm
Size :
1200*1000*350 mm
Weight :
30kgs
Work Efficiency :
1.2MW/day
Description

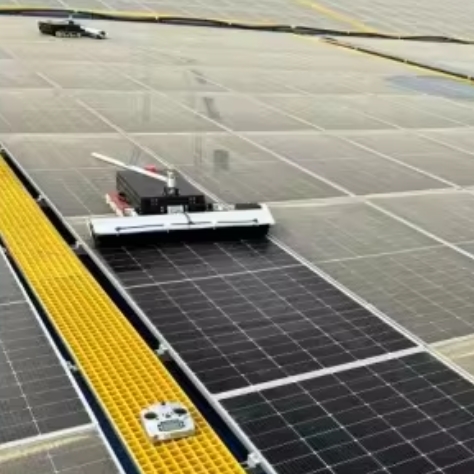

Photovoltaic cleaning robot

This product is an intelligent portable cleaning robot, mainly used for cleaning and dust removal of photovoltaic modules.

This product uses intelligent walking technology, which can automatically walk and adsorb on photovoltaic panels. Through

the design of waterless autonomous cleaning, it can clean foreign objects such as sand, dust, fallen leaves, etc. on the surface

of solar panels. It is suitable for various types of power stations such as large-scale ground power stations, fish-photovoltaic

complementary power stations and distributed rooftop power stations.

Solar Photovoltaic Cleaning Equipment Remote Control Automatic Solar Panel Cleaning Robot

Solar Photovoltaic Cleaning Equipment Remote Control Automatic Solar Panel Cleaning Robot

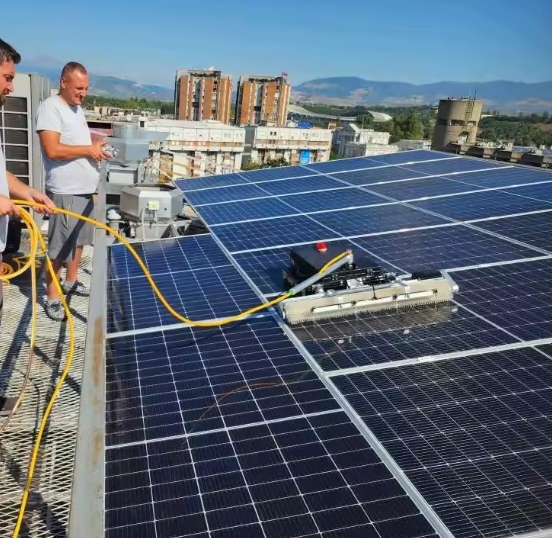

150m remote control cleaning to avoid personnel risks.
Cleaning personnel standing on the photovoltaic panel or walking on the roof have certain safety risks! The remote control distance of sunnysmiler X7 robot is150 meters, which is easy and safer. Adopting imported RF remote control technology, the signal is more stable and the anti-interference ability is stronger than that of conventional communication technology;
Solar Photovoltaic Cleaning Equipment Remote Control Automatic Solar Panel Cleaning Robot

Innovative patented technology of water curtain quick cleaning
After a large amount of dirt is stripped off the photovoltaic panel by the brush head, it may lead to secondary pollution; On Sunny Smiler X7, a multipoint water spraying device is arranged at the front end of the robot roller brush to sprayfan-shaped spray and connect it into sheets to form astrong water curtain to quickly drive sewage off the photovoltaic panel;

Certificate and factory display

Solar Photovoltaic Cleaning Equipment Remote Control Automatic Solar Panel Cleaning RobotSolar Photovoltaic Cleaning Equipment Remote Control Automatic Solar Panel Cleaning Robot

FAQ

Q: Are you factory or trade company?

A: We are factory. And we have ourselves trading company.

Q: Warranty terms of your machine?

A: One year warranty for the machine and technical support according to your needs.

Q: What about the voltage of products? Can they be customized?

A: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equirement.

Q: Do hydraulic jacks have calibration certificates?
A: Our hydraulic jacks are calibrated by Chinese authoritative institutions. You can communicate with us for specific details.


Q: What anchorage can I get?
A: If you need to anchor according to the drawings, please provide the drawings for our inspection before production. We have 12.7mm(0.5") and 15.24mm(0.6") types of wedges.


Q: What about the delivery time for mass production?
A: We generally arrange our products within 7 working days. The specific time depends on the order quantity


TECHNICAL PARAMETERS

operating voltage 24V
dle speed 250 rpm
Travel speed 22m/min
Cleaning width 1100mm
endurance 6 hours
Cleaning type Washing/Dry cleaning
Working angle Washing 15°/Dry cleaning 15°
power supply mode Lithium battery (24V)*2
Maximum water consumption 20L/min
operating temperature range -20-50ºC
Brush wire material New nylon yarn
Equipment weight 29kg(excluding battery)
outline dimension 1200*1000*350mm
Solar Photovoltaic Cleaning Equipment Remote Control Automatic Solar Panel Cleaning RobotSolar Photovoltaic Cleaning Equipment Remote Control Automatic Solar Panel Cleaning RobotSolar Photovoltaic Cleaning Equipment Remote Control Automatic Solar Panel Cleaning RobotSolar Photovoltaic Cleaning Equipment Remote Control Automatic Solar Panel Cleaning Robot
