PLC Automatic Electrical Control Cabinet With Remote Monitoring For Wastewater System
PLC Automatic Electrical Control Cabinet With Remote Monitoring For Wastewater System
Specifications
Model Number :
PLC
Certification :
SGS
Place of Origin :
Shandong,China
MOQ :
1set
Price :
2600USD-3800USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200Set Per Month
Delivery Time :
7-30 working days
Packaging Details :
container or customized
Cableentry :
Bottom and top cable entry with gland plates
Mountingtype :
Floor mounted / Wall mounted
Temperaturerange :
-20°C to 60°C
Material :
Cold-rolled steel
Finish :
Powder coated
Protectionlevel :
IP54
Ventilation :
Ventilation slots with filter
Color :
RAL7035 (Light Grey)
Doortype :
Single door / Double door
Standardscompliance :
IEC 61439, UL508A
Productname :
Electrical Control Cabinet
Dimensions :
Customizable (e.g., 600mm x 800mm x 200mm)
Internalmountingplate :
Removable galvanized steel plate
Locktype :
Key lock / Handle lock
Application :
Industrial automation, power distribution, motor control
Description

PLC Automatic Electrical Control Cabinet With Remote Monitoring For Wastewater System

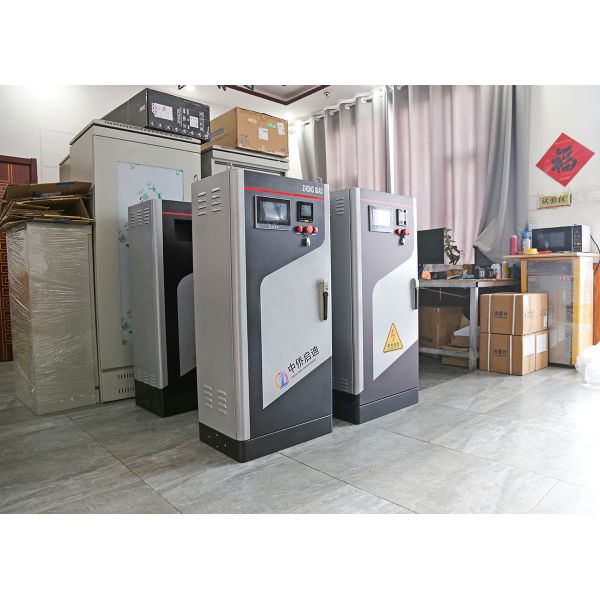

This product is a customized electrical control solution specially designed for water treatment equipment systems, integrating electrical control cabinets and PLC control panels to realize automatic, stable and intelligent operation of the entire water treatment process.

PLC Automatic Electrical Control Cabinet With Remote Monitoring For Wastewater System

Main Functions
  • Automatic control of water intake, dosing, filtration, backwashing, sewage discharge and other processes
  • Real-time monitoring of water quality, flow rate, pressure, liquid level and other operating parameters
  • Fault alarm, data recording, remote control and upper computer communication
  • Interlock protection and safe operation of pumps, valves, motors and other equipment

PLC Automatic Electrical Control Cabinet With Remote Monitoring For Wastewater System

PLC Automatic Electrical Control Cabinet With Remote Monitoring For Wastewater System

PLC Automatic Electrical Control Cabinet With Remote Monitoring For Wastewater System

PLC Automatic Electrical Control Cabinet With Remote Monitoring For Wastewater System

Software Support
  • Mechanical analysis via Creo
  • Hundun Internet of Things (IoT)

PLC Automatic Electrical Control Cabinet With Remote Monitoring For Wastewater System

Core Features
  • Adopts stable and reliable PLC programmable controller as the core
  • Configured with touch screen, buttons, indicator lights and instrument display
  • Standardized electrical design, reasonable wiring, easy maintenance and expansion
  • Strong adaptability to various water treatment processes such as sewage treatment, pure water preparation, recycling water systems
  • Supports MODBUS, Profibus, Ethernet and other communication protocols for centralized control
Application Scope

Widely used in industrial wastewater treatment, municipal water supply and drainage, circulating water systems, pure water / ultra-pure water equipment, integrated water treatment skids and other related automation control scenarios.

PLC Automatic Electrical Control Cabinet With Remote Monitoring For Wastewater System

Equipment processing parameters
Processing parameter requirement
Parameters/Index Inflow water quality mg/L(ppm) Outflow water requirement mg/L(ppm)
COD
BOD
TSS
Ammonia nitrogen
TN
TP
PH
E.coli
Others
Water flow m³/d
On/Underground If underground,pls indicate the depth
If integrated with control room
Appearance requirement Simple appearance, container appearance, Zhong qiao container appearance, please refer to our brochure for details
Voltage, HZ, Electric phase
Distance between regulating pool and equipment
Flange interface specifications
Special requirements
