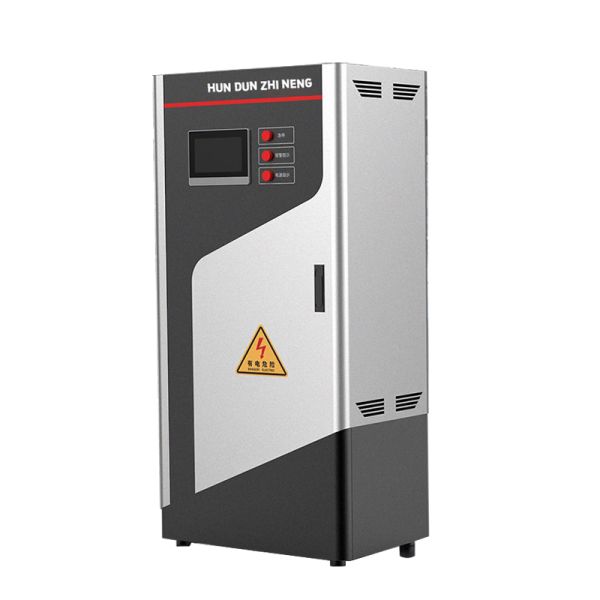

This Electrical Control Cabinet with PLC Control Panel is a centralized control and power distribution solution specially designed for water treatment equipment systems. It integrates automatic control, logic operation, parameter monitoring, and fault protection, ensuring stable, efficient, and safe operation of the entire water treatment process.

1. Stable PLC Core

   Adopts mainstream programmable logic controller (PLC) for reliable data processing, logic control, and real-time adjustment of water treatment processes, including filtration, dosing, backwashing, lifting, and circulation.

2. Complete Control Functions

   Supports automatic / manual mode switching, timing control, flow linkage, liquid level regulation, pressure control, and frequency conversion speed regulation, meeting diversified process requirements.

3. Intelligent Monitoring & Operation

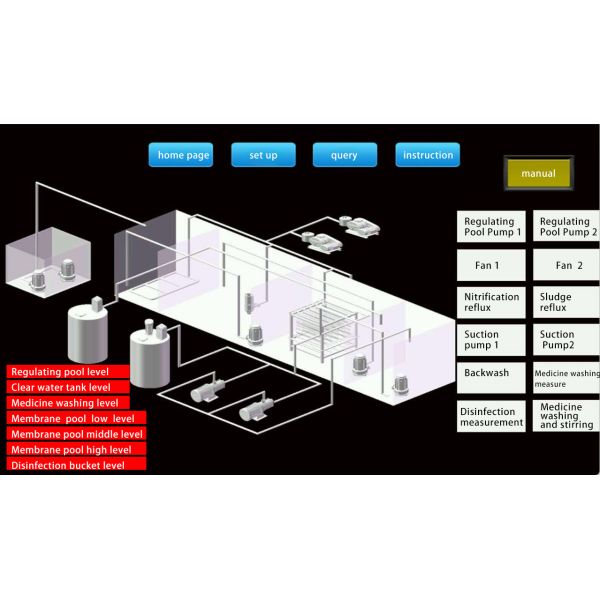

   Equipped with human-machine interface (touch screen), digital meters, and indicator lights to display real-time parameters such as water level, flow rate, pressure, pH, conductivity, and running status.

4. High Safety & Protection

   Built with over-current, over-voltage, under-voltage, phase loss, overload, short-circuit, and leakage protection. The cabinet has good dustproof, waterproof, and corrosion-resistant performance, adapting to harsh on-site environments.

5. Flexible Configuration & Expansion

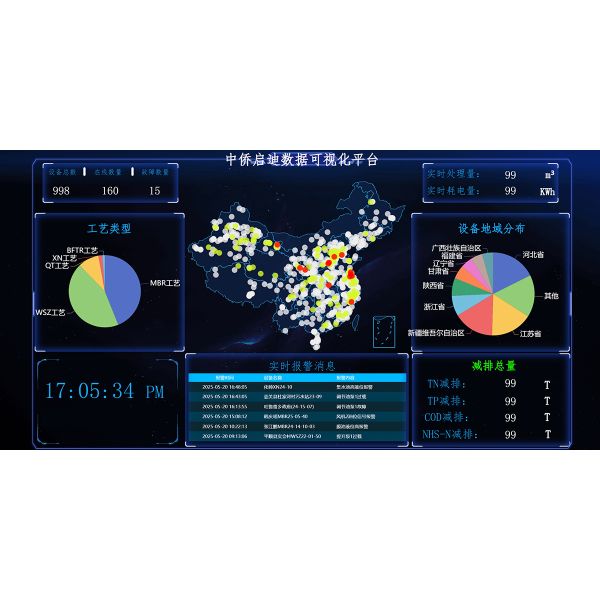

   Customizable I/O points, communication modules (RS485, Modbus, Ethernet, etc.), and remote monitoring functions to meet upgrading and expansion needs of different water treatment systems.

Widely used in various water treatment systems:

• Integrated sewage treatment equipment
• Industrial wastewater treatment systems
• Domestic sewage treatment projects
• Pure water / RO reverse osmosis equipment
• Circulating water, reclaimed water reuse systems
• Environmental protection and water supply automation projects

• The electric control cabinet has an appearance design patent and complete product certification. Appearance (including LOGO, color, style) can be customized.
• Anti-loss document box added to the cabinet door for certificates, inspection reports, drawings and other important documents.
• Upper and lower heat dissipation louvers on both sides to avoid overheating and extend service life of electrical components.
• Anti-theft design for the rear door.
• Connecting rod cabinet lock, more aesthetic and practical.
• Bottom cable entry, detachable partition with reserved holes, preventing insects from entering.
• Waterproof channel and sealing strip on the cabinet door, effectively preventing rainwater infiltration, higher protection level and safer.
• Base plate thickness 2.0 mm, with internal hidden fixing for better appearance.
