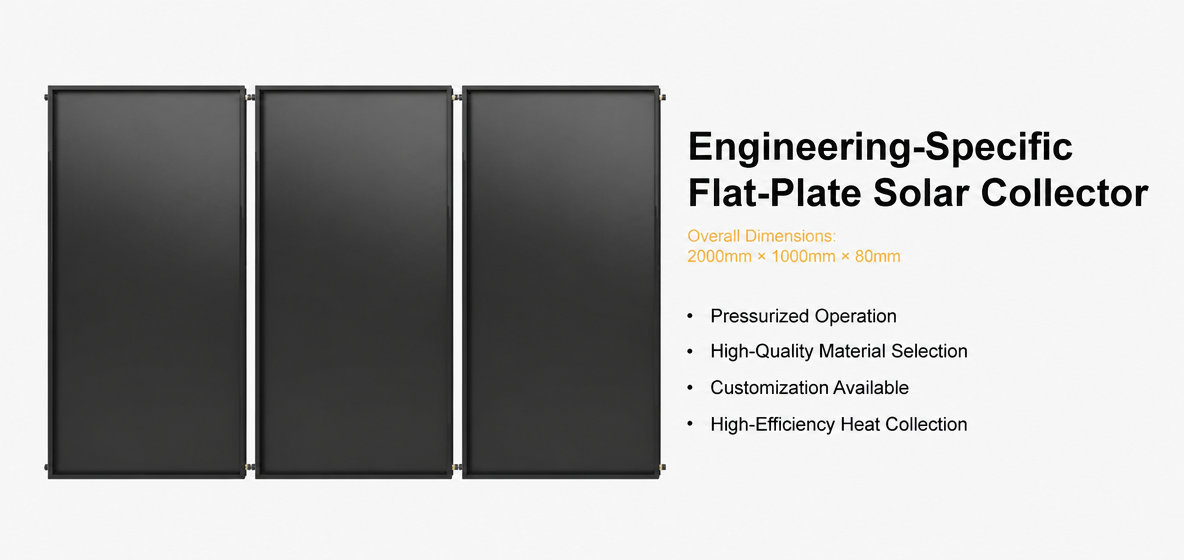

High Efficiency Flat Plate Solar Collector for Engineering Applications

The High Efficiency Flat Plate Solar Collector is designed for commercial solar thermal systems that require dependable solar energy collection and flexible system sizing. With a pressure-bearing structure and modular connection options, it can be configured for centralized hot water and heating projects of different scales.

The collector combines a selective solar absorber, low-iron tempered glass and thermal insulation to make effective use of available solar radiation while limiting heat loss during operation.

Designed for Project-Based Solar Thermal Systems

This collector is intended for engineering applications rather than small standalone installations. Multiple units can be combined to create a solar thermal array according to the required heat output and installation conditions.

It can be integrated into systems serving:

1. Residential communities

2. Hotels and resorts

3. Schools and hospitals

4. Commercial buildings

5. Factories

6. Agricultural greenhouses

The collector quantity and overall system arrangement can be selected according to hot water demand, heating requirements and available installation space.

Pressure-Bearing Construction

The pressure-bearing design allows the collector to be used in pressurized solar thermal systems. This makes it suitable for centralized installations where heat-transfer fluid circulates between the collector array, storage tank and heating equipment.

The robust collector structure supports stable operation for continuous commercial and engineering applications.

Optimized Solar Heat Collection

A high-performance selective absorption coating captures solar radiation and converts it into thermal energy. The heat is transferred to the circulating heat-transfer fluid through the internal channels before being delivered to the storage or heating system.

The use of low-iron textured tempered glass helps increase light transmission while providing protection for the absorber and internal components during outdoor operation.

Insulation for Lower Heat Loss

The collector housing incorporates thermal insulation to reduce heat dissipation from the collected solar energy.

This insulated structure helps maintain effective heat retention and supports stable thermal performance when outdoor temperatures change.

Flexible Array Configuration

Project requirements can vary significantly from one installation to another. The collector therefore supports series and parallel connection, giving system designers greater flexibility when building larger solar thermal arrays.

The configuration can be determined according to:

• Required thermal capacity

• Daily hot water consumption

• Building heating area

• Installation space

• System pressure

• Piping configuration

This modular approach allows the system to be scaled without changing the basic collector design.

Solar Thermal Applications

The collector can provide solar thermal energy for centralized domestic hot water and heating systems. Typical applications include residential developments, institutional buildings, hospitality facilities, industrial sites and greenhouse projects.

For larger engineering projects, multiple collectors can be combined to match the required system capacity and site conditions.

The High Efficiency Flat Plate Solar Collector offers a scalable solution for EPC contractors, solar thermal system integrators, distributors and project developers looking to incorporate solar energy into commercial heating and hot water systems.
