T/PV T Type PVT Hybrid Solar Module

The T/PV T Type PVT Hybrid Solar Module is an integrated solar energy solution that combines photovoltaic electricity generation with solar thermal collection. By producing both power and heat from the same module, it helps make better use of available solar radiation and installation space.

The module is designed for hot water production, building heating, swimming pool heating, and heat pump applications, making it suitable for both residential and commercial renewable energy systems.

One Module, Two Energy Outputs

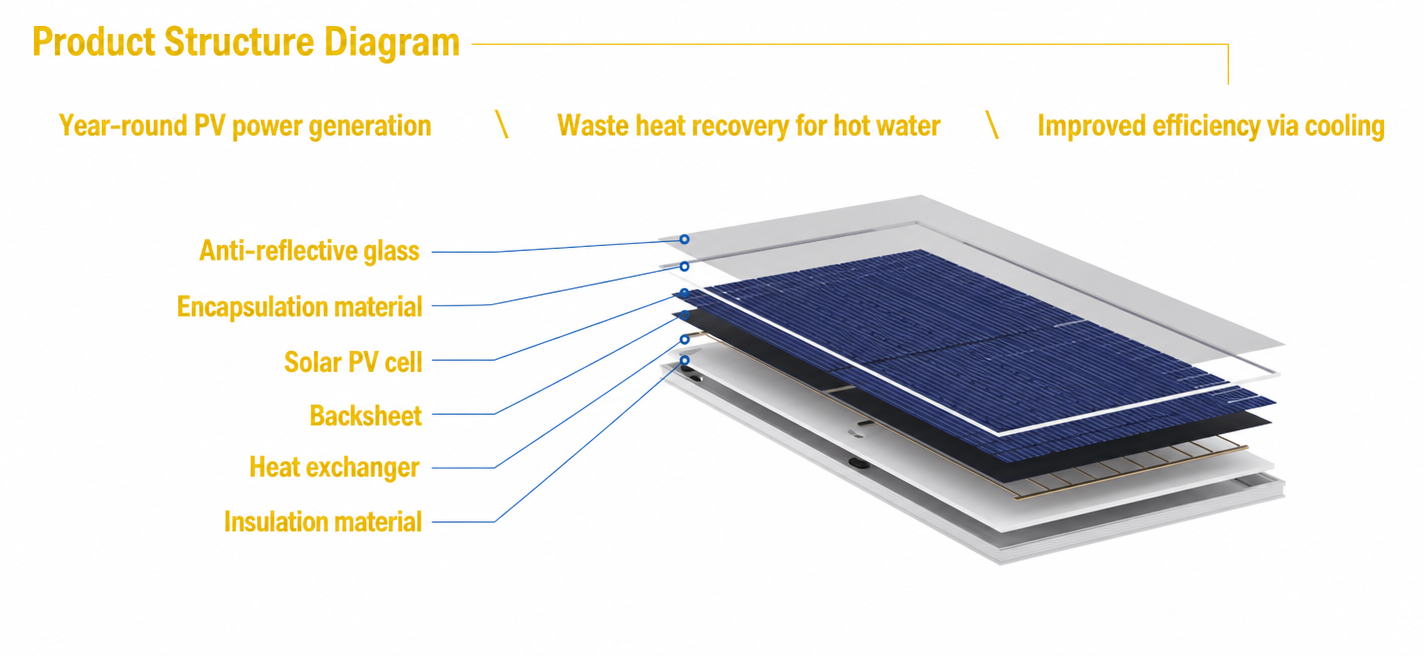

The PVT design combines a photovoltaic layer with a rear thermal collector. While the PV cells generate electricity, the thermal system captures heat that would otherwise be lost.

This combined approach provides:

1. Electrical energy generation

2. Solar thermal energy collection

3. Higher utilization of solar resources

4. Better use of limited roof space

The overall solar utilization can reach up to 80% under specified conditions.

Optimized PV Thermal Integration

The PV module and thermal collector are integrated through vacuum bonding technology, creating a close connection between the two energy-producing layers.

This structure reduces thermal resistance and improves heat transfer efficiency by more than 40%, helping transfer collected heat effectively to the connected thermal system.

Built for Heat Pump Systems

The thermal output of the PVT module can be connected with a heat pump to create a more comprehensive renewable heating solution.

It can provide solar thermal energy for applications such as:

Domestic Hot Water · Pool Heating · Building Heating · Heat Pump Systems

This makes the module particularly suitable for projects looking to combine photovoltaic power with low-carbon heating technologies.

Improved Thermal Energy Retention

The module incorporates a multi-layer insulation structure to reduce heat loss.

Its thermal design includes a high-transparency cover plate, high-density insulation material, and long-wave reflective film, helping retain collected heat and maintain stable thermal performance.

High-Efficiency Solar Cells

The electrical generation side uses N-Type TOPCon solar cell technology.

At the same time, the thermal collection structure helps control PV operating temperature below 55°C under specified conditions, supporting efficient operation of the photovoltaic system.

Intelligent Temperature Monitoring

Integrated temperature sensors allow the thermal output to be monitored during operation.

The module can also be connected to compatible intelligent control or building energy management systems, allowing thermal collection to be coordinated with the overall energy demand.

Durable Outdoor Construction

Designed for long-term outdoor installation, the module features:

1. N-Type TOPCon solar cells

2. High-purity aluminum heat transfer plate

3. 6063-T5 aluminum alloy frame

4. Weather-resistant sealant

5. IP65 protection

These components provide reliable protection for rooftop and outdoor renewable energy applications.

Maximize the Value of Solar Energy

Combining photovoltaic generation and thermal collection in one module allows projects to obtain electricity and usable heat from the same solar installation area.

The T/PV T Type is an efficient choice for renewable energy projects seeking higher solar utilization and integrated heating solutions.

OEM/ODM customization and project-based supply are available for distributors, solar system integrators, contractors, and renewable energy projects.
