Optical RS485 Immersion EC Water Quality Sensor for Aquaculture and River Monitoring

Product Introduction:

The online conductivity sensor is designed specifically for drinking water, circulating aquaculture water, and various water supply systems, integrating conductivity and TDS measurement. It uses RS-485 Modbus RTU communication and can quickly interface with third-party platforms such as PLC, DCS, and industrial control screens, providing reliable data support for intelligent water quality monitoring.

Core Advantage:

1. Accurate measurement, temperature compensation and protection

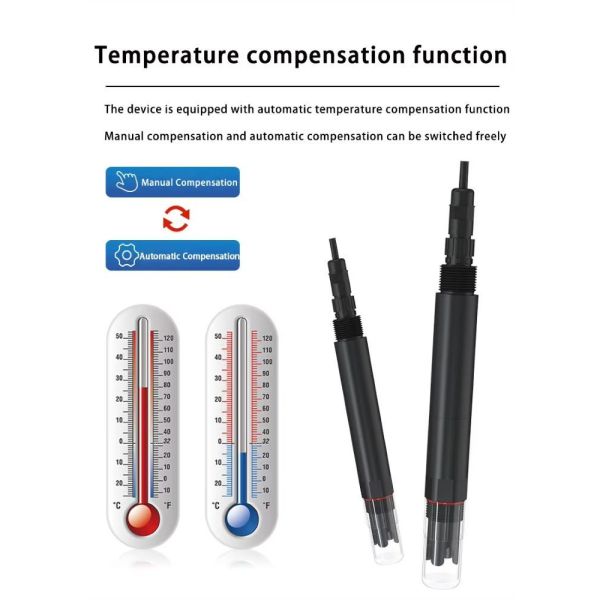

The measurement range is 0-5000 μ S/cm (TDS 0-3000 mg/L), with an accuracy of ± 1.5% of the reading and a temperature error of ± 0.3 ℃. Built in Pt1000 automatic temperature compensation, response time T90<30 seconds, detection limit as low as 2 μ S/cm, ensuring stable output under different water quality conditions.
2. Flexible installation, sturdy and durable
Adopting 3/4 NPT pipe thread, supporting water tank immersion, pipeline or tank installation, with a minimum inclination of 15 ° to meet the requirements. The shell is made of ABS/PC alloy, with a protection level of IP68, and can work in an environment of 0-50 ℃ and ≤ 0.2MPa for a long time. Standard 5-meter four core shielded wire, supporting 12-24V DC wide voltage power supply, with a power consumption of only 0.25W.
3. Quality commitment, comprehensive service
Before leaving the factory, it undergoes a 72 hour aging test and comes with a one-year warranty. Provides two-point calibration (zero point+slope), supports Modbus register address/baud rate modification, comes with complete accessories and operation manual, and provides timely after-sales response.

RS485 Water quality EC sensor:

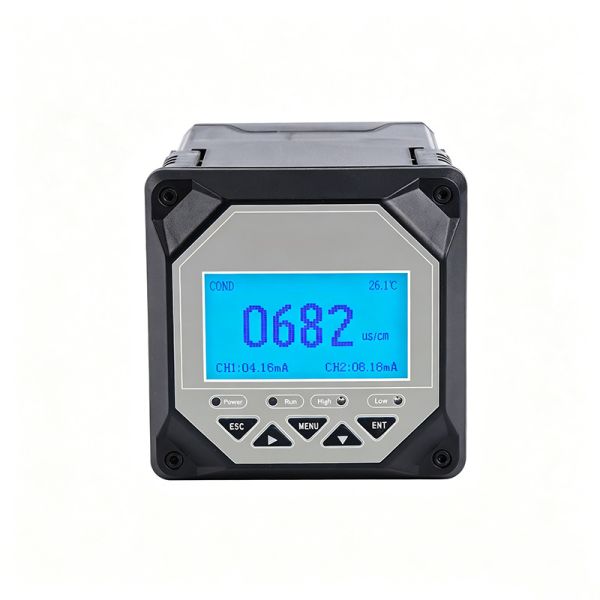

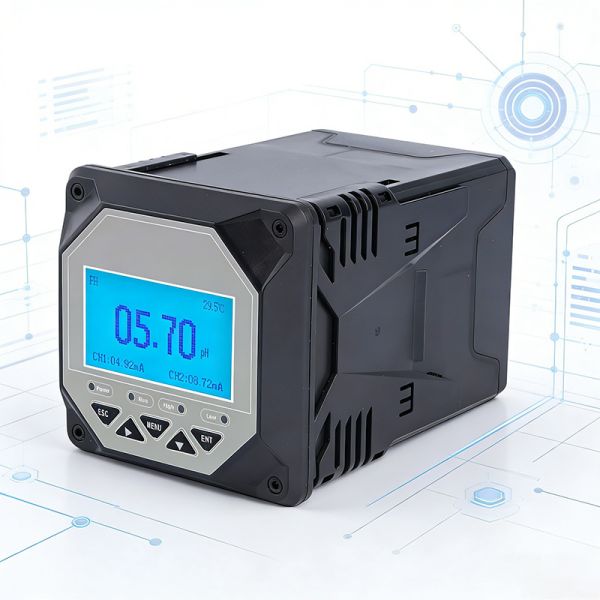

Product Display:

Application:

• Drinking water monitoring: Real time monitoring of conductivity and TDS of water quality such as tap water and purified water.
• Circulating aquaculture water: Ensuring the stability of water quality in aquaculture, fish ponds, and other systems.
• Industrial water supply: online detection of pipelines or storage tanks for process water, cooling water, and recycled water.
• Environmental Protection and Irrigation: Collecting parameters such as surface water and irrigation water, and connecting to IoT platforms.

Why RS485 for Water Quality Conductivity Monitoring?

Industrial-Grade & Stable Data Transmission: RS485 delivers robust anti-interference performance for real-time, reliable hardness data transmission in harsh environments (e.g., industrial boilers, municipal water supply), ensuring accurate monitoring.
Easy Integration & Scalability:Supports multi-node networking, seamlessly integrates with mainstream PLC/RTU systems, enabling flexible deployment and reducing system integration costs and maintenance complexity.

Production Process:

FAQ:

1.Are you manufacture?

A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.

2.Do you offer OEM services?

A:Yes,we can provide you with OEM services and design housings and logos.

3.DO you offer free samples?

A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.

Why choose us:

• Strong R & D: 30+ Senior experts and highly educated personnel formed a R & D team, heavy investment, master a number of core technologies and patents.
• Professional and effective solutions: for smart environmental protection, agriculture and other fields, to provide customized compound networking solutions.
• Full range of products: covering the whole industry chain products from data collection to platform services to meet diverse needs.
• Excellent quality: we have perfect quality control system, strictly quality control each production link, low defective rate.
• Good service: 7×24 hours fast response, Professional pre-sale, sale, after-sales team support.
