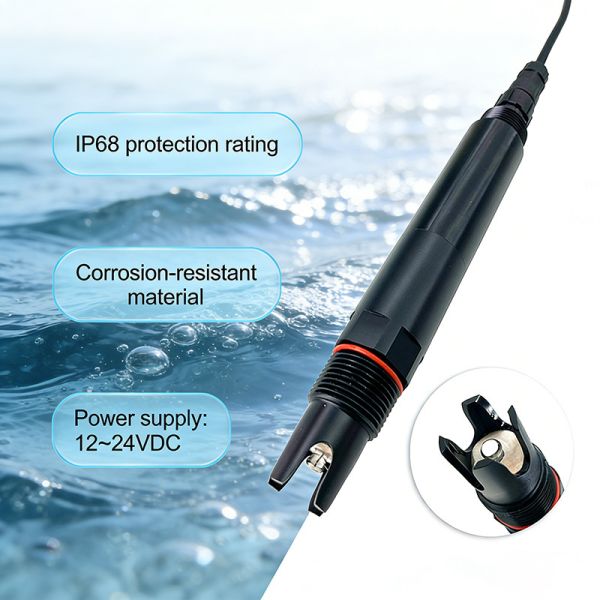

ZONEWU Submersible ORP Sensor for Water Quality with RS485 Modbus RTU Output IP68 Rating and 3/4 NPT Thread

Product Introduction:

In complex scenarios such as environmental water quality monitoring, acid-base salt solutions, chemical reaction processes, and industrial production, ORP (oxidation-reduction potential) is a core indicator for evaluating the disinfection ability and oxidation-reduction status of water bodies. The ZW-ORP-PR online ORP sensor is designed specifically for harsh industrial sites, based on RS485 (Modbus/RTU) digital output, equipped with patented electrode technology and dual high impedance differential amplifiers. With a reliable measurement range of -1500~+1500mV, resolution of 1mV, and accuracy of ± 20mV, it helps you accurately control the redox balance of water bodies 24/7.

Core Advantage:
① Patent electrode, ultra long lifespan
The internal reference solution slowly seeps out from the microporous salt bridge under a pressure of ≥ 100KPa, and the forward seepage lasts for more than 20 months. The reference system is extremely stable; The lifespan of electrodes is doubled compared to traditional industrial electrodes, significantly reducing the frequency of replacement.
② RS485 digital output, strong anti-interference
Standard Modbus RTU protocol, supporting multi-point networking, with a communication distance of up to 1200 meters. Double high impedance differential amplifier design, fast response, strong anti-interference ability, digital signal transmission is not affected by line resistance and electromagnetic effects, suitable for harsh industrial sites.
③ Durable and sturdy, with flexible installation

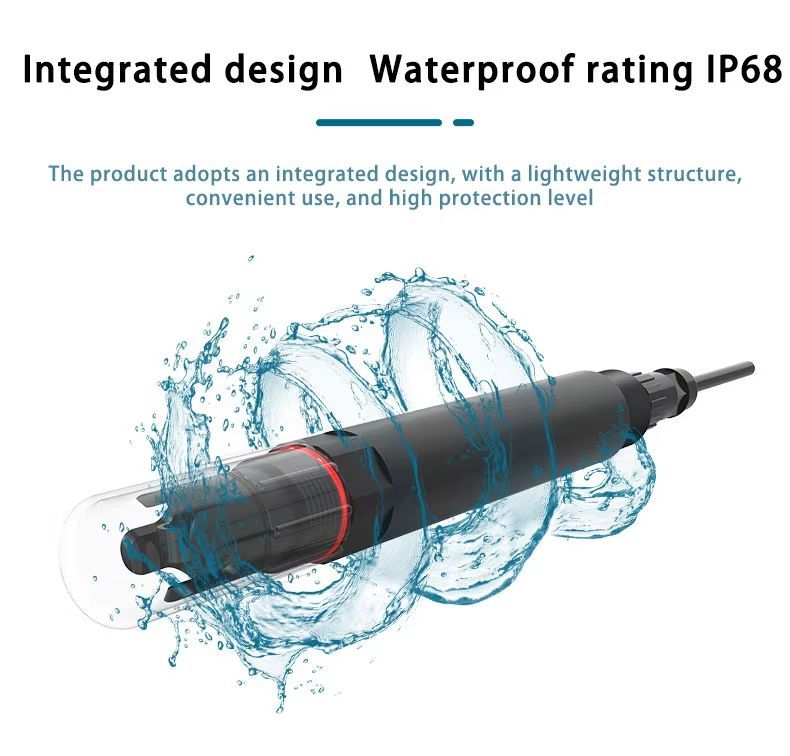

Fully sealed ABS/PC and alloy material, IP68 protection level, capable of long-term immersion; 3/4 NPT pipe thread supports immersion, pipeline or tank installation (requires a tilt of 15 ° or more), paired with M16-5 core waterproof connector, 5-meter cable can be customized.
④ Easy integration, worry free maintenance
Compatible with third-party devices such as PLC, DCS, industrial control computer, touch screen, etc., plug and play; One point calibration, combined with 86mV/256mV/-40mV standard solution to quickly complete calibration. low power consumption 0.2W@12V Suitable for long-term unmanned monitoring.

RS485 Water quality ORP sensor:

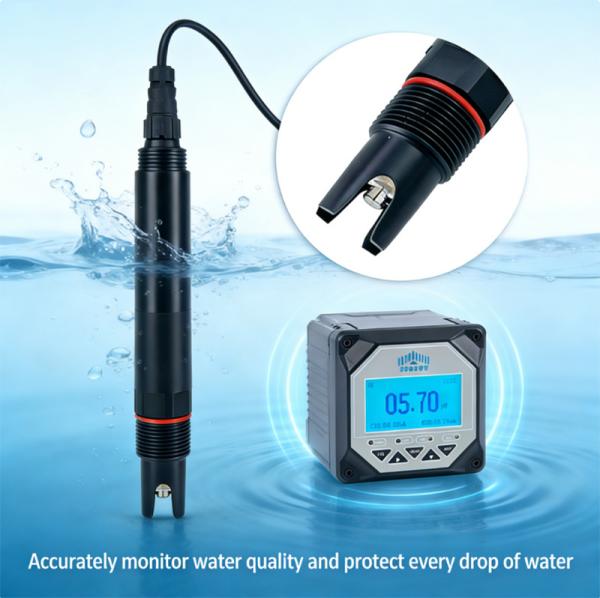

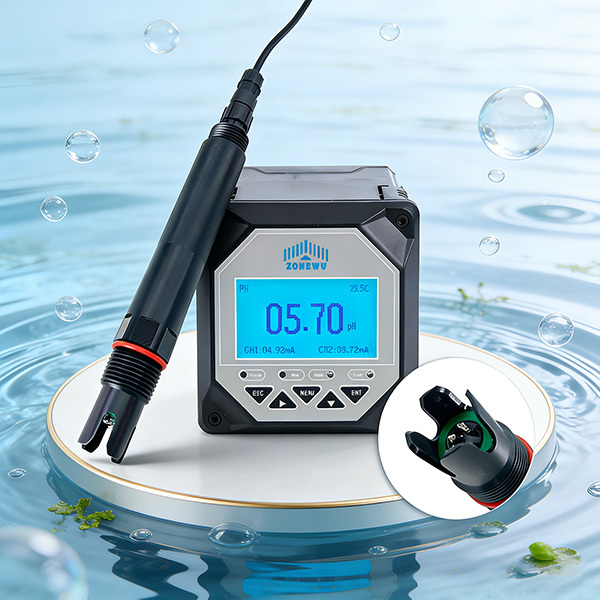

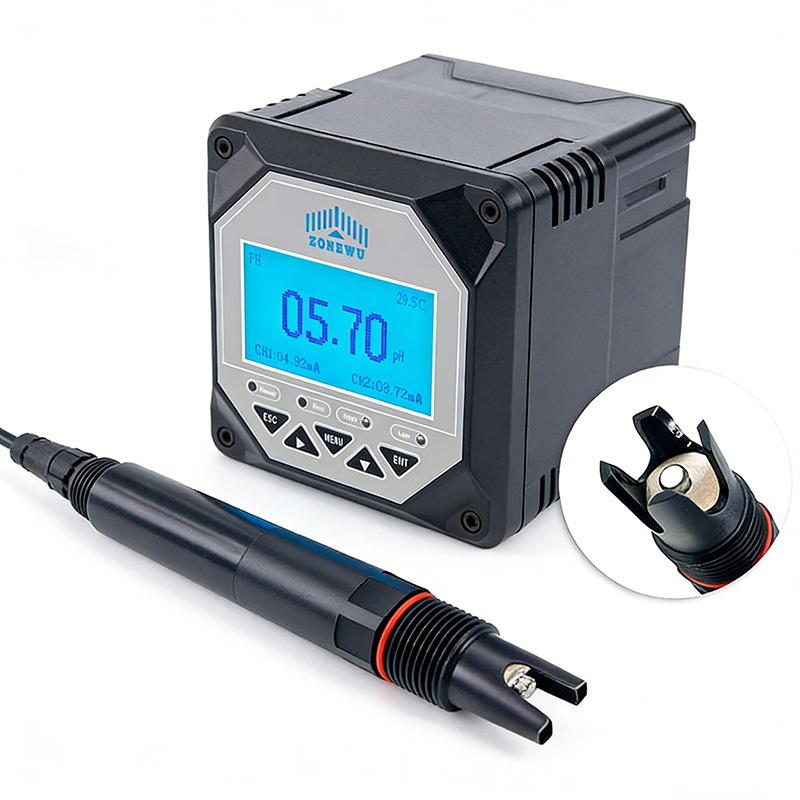

Product Display:

Application:

• Aquaculture: Monitor the redox potential of water bodies and regulate water quality.
• Industrial wastewater treatment: evaluate the effectiveness of disinfectant addition and discharge safety.
• Swimming pool and tap water: control residual chlorine and sterilization efficiency.
• Circulating cooling water: prevent microbial corrosion and scaling.

Why RS485 for Water Quality ORP Monitoring?

Industrial-Grade & Stable Data Transmission: RS485 delivers robust anti-interference performance for real-time, reliable hardness data transmission in harsh environments (e.g., industrial boilers, municipal water supply), ensuring accurate monitoring.
Easy Integration & Scalability:Supports multi-node networking, seamlessly integrates with mainstream PLC/RTU systems, enabling flexible deployment and reducing system integration costs and maintenance complexity.

Production Process:

FAQ:

1.Are you manufacture?

A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.

2.Do you offer OEM services?

A:Yes,we can provide you with OEM services and design housings and logos.

3.DO you offer free samples?

A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.

Why choose us:

• Strong R & D: 30+ Senior experts and highly educated personnel formed a R & D team, heavy investment, master a number of core technologies and patents.
• Professional and effective solutions: for smart environmental protection, agriculture and other fields, to provide customized compound networking solutions.
• Full range of products: covering the whole industry chain products from data collection to platform services to meet diverse needs.
• Excellent quality: we have perfect quality control system, strictly quality control each production link, low defective rate.
• Good service: 7×24 hours fast response, Professional pre-sale, sale, after-sales team support.
