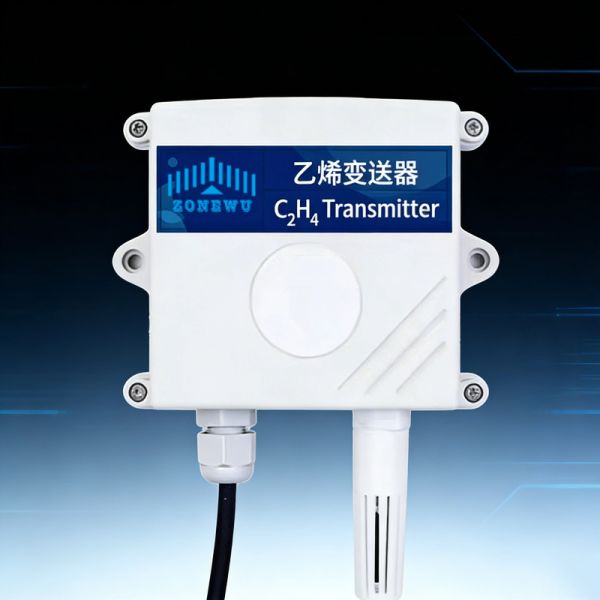

Industrial Ethylene Detector High Precision RS485

Elevate your produce quality control and agricultural precision with the ONEWU RS485 Ethylene Gas Sensor. Delivering real-time ppm-level ethylene concentration data, this high-performance sensor unlocks data-driven insights into crop ripening and senescence—empowering you to reduce losses, extend shelf life, and optimize cultivation outcomes across cold chain, greenhouses, and food processing lines.

Key Features & Benefits:

1.Real-time ppm-level ethylene detection – Track concentration changes to analyze produce ripening & senescence patterns, powering data-driven agricultural decisions.

2.RS485 Modbus RTU compatibility – Enables stable networking for seamless integration into industrial monitoring systems, ideal for large-scale farms & warehouses.

3.Cold chain & logistics guard – Monitors ethylene accumulation during transit/storage, prevents premature ripening and rot, cuts down high-value produce losses.

4.Precision greenhouse & orchard management – Regulates crop ripening cycles, reduces abnormal fruit drop and plant aging, boosts harvest quality and yield.

5.Multi-industry applicability – Ensures food safety in MAP packaging & processing workshops; supports plant physiology research and urban green space monitoring.

C2H4 Sensor Specification:

Packaging:

Single gross weight: 0.600 KG

Single package size: 23X20X5 cm

Product Description:

Frequently Asked Questions:

1. Q: What is the communication distance of the RS485 C₂H₄ sensor?

A: The communication distance is subject to the transmission line and the environment. In a standard setup with a dedicated twisted-pair cable and without signal repeaters, the maximum distance can reach 1200 meters. If signal repeaters are added, the transmission distance can be further extended.It is recommended to use shielded twisted-pair cables for wiring to reduce electromagnetic interference and ensure stable data transmission.

2. Q: Do I need to lay cables during deployment?

A: Yes, cables are required for deployment. The sensor adopts RS485 wired communication technology, which needs to be connected to the data collector or control host via twisted-pair cables.The RS485 bus supports multi-device networking (up to 32 devices in one bus segment by default), which simplifies wiring layout and reduces the overall system wiring complexity.

3. Q: What are the common reasons for intermittent data transmission of the sensor?

A: In addition to the communication distance exceeding the standard limit without a signal repeater, intermittent transmission may also be caused by loose cable connections, poor contact of terminal blocks, excessive electromagnetic interference from nearby industrial equipment, or an ungrounded shielded layer of the cable.

You can first check the tightness of the cable connections and ensure that the shielded layer is properly grounded. If the problem persists, please consult us for a targeted wiring and anti-interference optimization solution.

Application:

The High precision C₂H₄ sensor is also widely used for gas monitoring in chemical production, ward monitoring, vegetable greenhouses, livestock and poultry farms, tunnel monitoring, cold chain logistics vehicles, cold storage monitoring, and biosafety laboratories.

Certifications:

With a decade of rich experience in the field, we have established ourselves as a leading gas sensor manufacturer and exporter across China. All our C₂H₄ sensor products hold CE and RoHS certifications, ensuring superior quality and compliance with international norms.

Production Process:

Why choose us:
