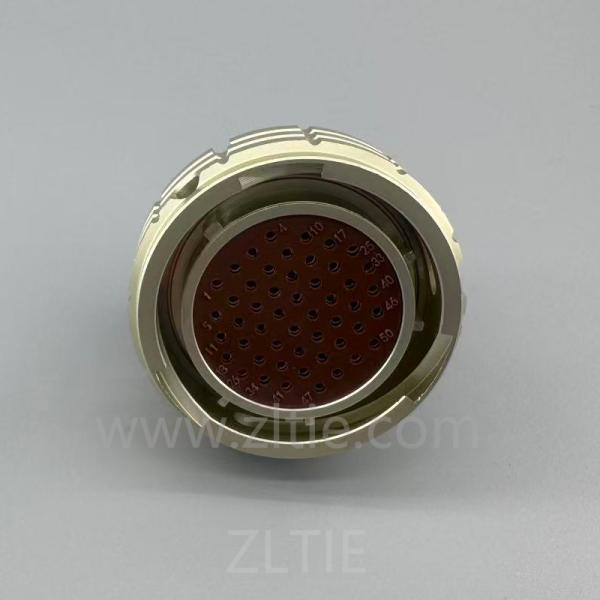

ОНЦ-БС-1(2) Series Connector Shell Size 27 50 Pin Female Plug with Tail Attachment (Optional)-ОНЦ-БС-1-50/27-P12-1-B
ОНЦ-БС-1(2) Series Connector Shell Size 27 50 Pin Female Plug with Tail Attachment (Optional)-ОНЦ-БС-1-50/27-P12-1-B
ОНЦ-БС-1(2) Series Connector Shell Size 27 50 Pin Female Plug with Tail Attachment (Optional)-ОНЦ-БС-1-50/27-P12-1-B
ОНЦ-БС-1(2) Series Connector Shell Size 27 50 Pin Female Plug with Tail Attachment (Optional)-ОНЦ-БС-1-50/27-P12-1-B
ОНЦ-БС-1(2) Series Connector Shell Size 27 50 Pin Female Plug with Tail Attachment (Optional)-ОНЦ-БС-1-50/27-P12-1-B
ОНЦ-БС-1(2) Series Connector Shell Size 27 50 Pin Female Plug with Tail Attachment (Optional)-ОНЦ-БС-1-50/27-P12-1-B
Specifications
Model Number :
OHS-BC-1-50/27-P12-1-B
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C,D/A,D/P,T/T
Delivery Time :
10 work days
Description

Product Details:

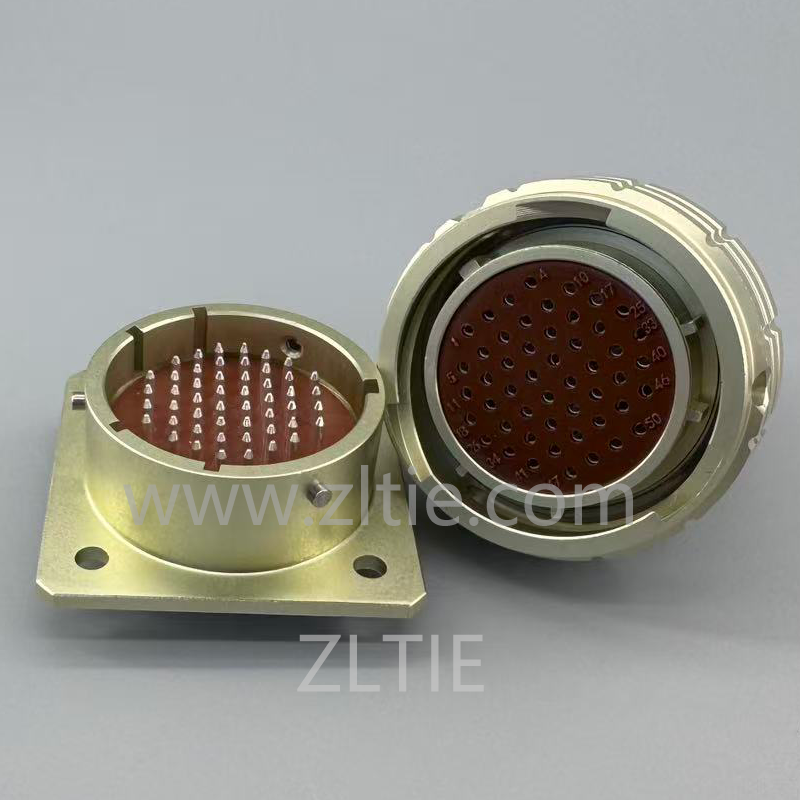

OHS series bayonet ultra-small connectors mainly adopt Russian connector technology. This type of connector is widely used in DC and AC circuits of various electrical, radio and control instruments. It consists of plugs and sockets, with multi-level key positions for installation. The coupling mode of the connector is bayonet type. The socket has no tail attachment and the plug has a straight plastic tail attachment. At the same time, it can be matched and interchanged with the original parts of the Russian ОНЦ-БС-1(2) series.

ОНЦ-БС-1(2) Series Connector Shell Size 27 50 Pin Female Plug with Tail Attachment (Optional)-ОНЦ-БС-1-50/27-P12-1-B

ATTRIBUTES:

  • Connector Type: Plug
  • Contact Type: Female
  • Number of Positions: 50 Pin
  • Shell Size: 27
  • Contact Material: Copper Alloy Gold/Silver Plating
  • Fastening Type: PPS
  • Shell Material: Aluminum Alloy Surface Anodized Treatment, Zinc Alloy Nickel Plating (Industrial Grade)
  • Contact Size: Φ1.0
  • Maximum current per contact: 1.5A
  • Sum of Currents: 75A
  • Rated Voltage: 250V
  • Contact Resistance: ≤5MΩ
  • Contact Termination: Solder
  • Fastening Type: Bayonet Connection
  • Number of Insertions and Removals: 250
  • Operating Temperature: -60℃ – +85℃
