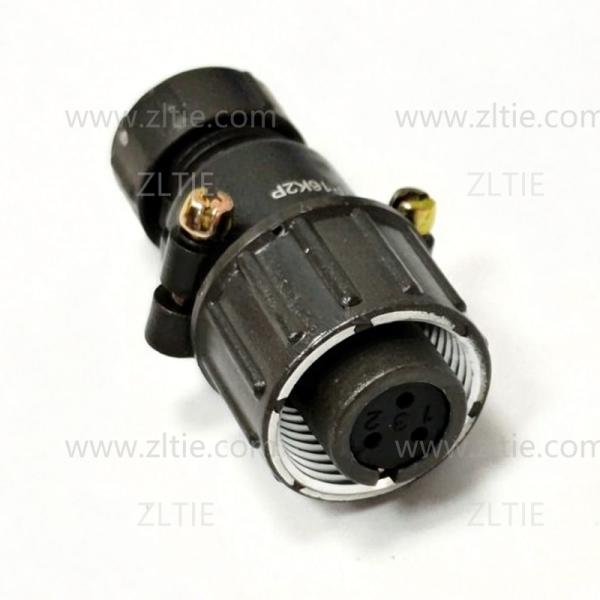

P16 Series 3-Pin Straight Female Cable Plug With Shielded Tail Attachment
P16 Series 3-Pin Straight Female Cable Plug With Shielded Tail Attachment
P16 Series 3-Pin Straight Female Cable Plug With Shielded Tail Attachment
P16 Series 3-Pin Straight Female Cable Plug With Shielded Tail Attachment
Specifications
Model Number :
P16K2P
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C,D/A,D/P,T/T
Delivery Time :
10 work days
Description

Product Details:

The ШР-type circular connector complies with SJ/T10496-94 and includes 8 varieties with P16 and P60 screw thread types. It offers over 1,800 specifications, including straight, angled, shielded, unshielded, sealed, and unsealed versions.

Contact diameters are Φ1.5, Φ2.5, Φ3.5, and Φ5.5 mm, with options for gold or silver plating. It can be matched and interchanged with the original parts of the Russian ШР series.

ATTRIBUTES:

  • Connector Type: Plug
  • Shell Size: 16
  • Contact Size: 3*1.5mm
  • Connection Method: Thread Connection
  • Terminal Method: Solder
  • Plating of Contacts: Silver
  • Insulator: PBT or Bakelite
  • Shell: Aluminum Alloy Surface Anodizing Treatment
  • Relative Humidity: It can reach 95% at 40°C
  • Ambient Temperature: -55°C~+70°C
  • Vibration: 10 ˜ 200Hz, 95m/²
  • Insulated Resistance: Normal Temperature≥ 500mΩ; Wet Heat≥ 2mΩ
  • Life Duration: 500 Cycles
