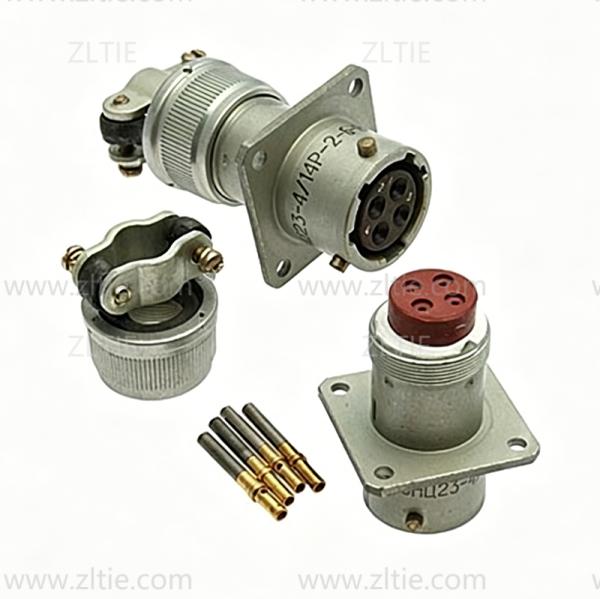

ZH23 Series 4-Pin Straight Bayonet Receptacle

Product Information

The ZH23 Series 4-pin straight bayonet receptacle is a compact female connector designed for low-frequency AC and DC circuits. Its straight configuration provides a conventional mounting and cable arrangement, while the bayonet coupling system enables quick and secure mating. The connector incorporates five-button positioning and an anti-insertion structure to improve alignment and help prevent incorrect connection. It is also designed to match and interchange with corresponding Russian СНЦ23 series connectors.

Structural Features

• 4-pin female contact configuration with shell size 14.

• Straight receptacle design for conventional panel and equipment installation.

• Bayonet coupling supports quick mating and release.

• Five-button positioning improves connector alignment.

• Anti-insertion structure helps reduce mating errors.

• Gold-plated copper alloy contacts provide stable electrical contact.

• PPS insulating material offers reliable insulation performance.

• Aluminum alloy shell with anodized treatment or zinc alloy shell with nickel plating provides surface protection.

• Designed for repeated connection and disconnection with a rated life of 500 cycles.

Technical Specifications

Environmental Performance & Applications

The ZH23 receptacle is designed for applications requiring reliable connection under demanding environmental conditions. Its specified resistance to vibration, impact, humidity, and salt spray, together with a wide operating temperature range, makes it suitable for industrial equipment, control systems, electrical instruments, communication equipment, testing equipment, automation systems, and low-frequency AC/DC circuits.

Advantages & Service

• Quick bayonet coupling improves installation efficiency.

• Straight configuration simplifies equipment integration.

• Multiple positioning features support accurate mating.

• Durable materials provide stable mechanical and insulation performance.

• OEM/ODM customization and technical support are available.

• Sample orders, bulk supply, and export packaging can be arranged according to project requirements.

FAQ

Q: Can this receptacle be matched with the СНЦ23 series?
A: Yes. It is designed to match and interchange with corresponding СНЦ23 series connectors.

Q: What is the operating temperature range?
A: The specified operating range is -60°C to +200°C.

Q: Is the connector suitable for repeated installation?
A: Yes. Its mechanical and working life is specified at up to 500 cycles.
