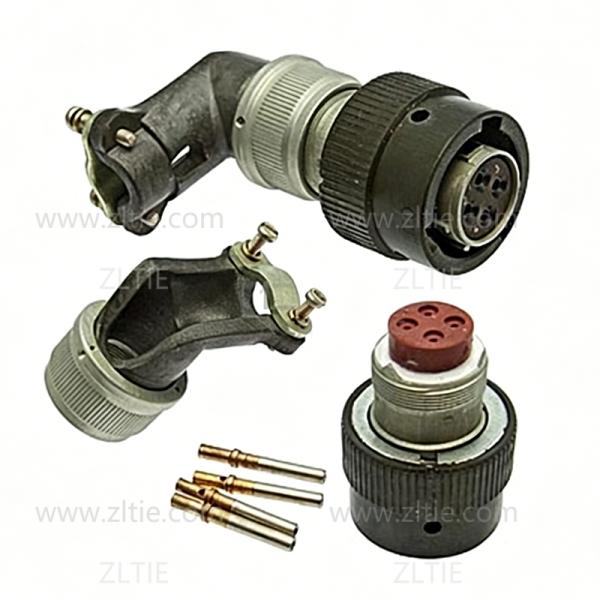

ZH23 Series 4-Pin Right-Angle Bayonet Plug

Space-Saving Right-Angle Design

The ZH23 Series 4-pin right-angle plug is designed for low-frequency AC and DC circuits where reliable connection and efficient cable routing are important. Its right-angle configuration directs the cable away from the connector body, making it particularly practical for equipment with limited installation space or defined cable-routing requirements.

The connector combines a bayonet quick-connect mechanism, five-button positioning, and anti-insertion structure. These features help provide consistent alignment and efficient mating while reducing the possibility of incorrect connection. Gold-plated copper alloy contacts and PPS insulation contribute to stable electrical and insulation performance.

Product Characteristics

• 4-pin female contact configuration with shell size 14.

• Right-angle structure helps optimize cable routing and installation space.

• Bayonet coupling enables quick mating and release.

• Five-button positioning provides multiple alignment references.

• Anti-insertion structure helps reduce incorrect mating.

• Gold-plated copper alloy contacts support stable conductivity.

• PPS insulation provides reliable electrical isolation.

• Aluminum alloy with anodized treatment or zinc alloy with nickel plating provides surface protection.

• Mechanical and working life rated at 500 cycles.

Technical Specifications

Applications & Performance

The ZH23 right-angle plug is suitable for industrial automation equipment, control systems, electronic instruments, communication equipment, testing equipment, and electrical devices using low-frequency AC/DC circuits. Its specified resistance to vibration, impact, salt spray, and high humidity, together with an operating temperature range of -60°C to +200°C, supports use in demanding working environments.

The series is designed to match and interchange with corresponding СНЦ23 series connectors, subject to dimensional and electrical verification.

Advantages & Service

• Right-Angle Routing: Helps manage cables in confined installation areas.

• Quick Bayonet Coupling: Simplifies repeated connection and disconnection.

• Accurate Positioning: Five-button design supports consistent mating.

• Protected Connection: Anti-insertion structure helps reduce mating errors.

• Flexible Supply: OEM/ODM customization, samples, technical support, and bulk orders are available.

FAQ

Q: Why choose the right-angle version?
A: The right-angle structure can help optimize cable routing and reduce space requirements around the connector.

Q: What is the working temperature range?
A: The specified operating range is -60°C to +200°C.

Q: Can it be used with СНЦ23 series connectors?
A: It is designed to match and interchange with corresponding СНЦ23 series connectors. Please verify dimensions and electrical specifications before replacement.
