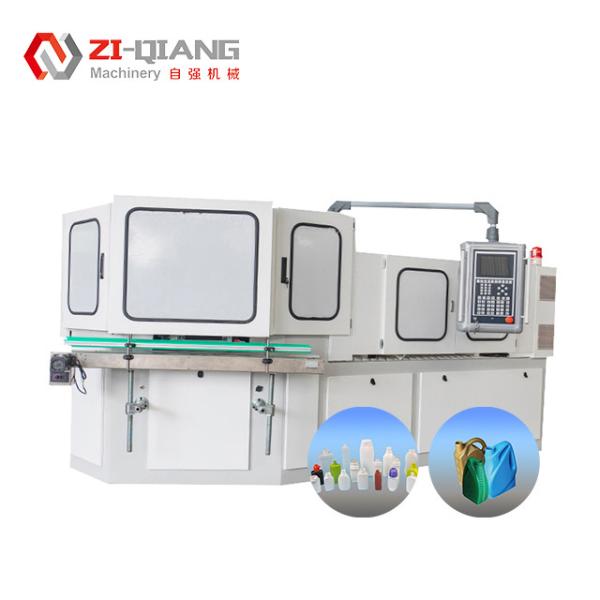

ZQ40 Automatic Injection Blow Molding Machine for 5ml-2L Bottles
ZQ40 Automatic Injection Blow Molding Machine for 5ml-2L Bottles
ZQ40 Automatic Injection Blow Molding Machine for 5ml-2L Bottles
ZQ40 Automatic Injection Blow Molding Machine for 5ml-2L Bottles
ZQ40 Automatic Injection Blow Molding Machine for 5ml-2L Bottles
ZQ40 Automatic Injection Blow Molding Machine for 5ml-2L Bottles
ZQ40 Automatic Injection Blow Molding Machine for 5ml-2L Bottles
ZQ40 Automatic Injection Blow Molding Machine for 5ml-2L Bottles
ZQ40 Automatic Injection Blow Molding Machine for 5ml-2L Bottles
ZQ40 Automatic Injection Blow Molding Machine for 5ml-2L Bottles
ZQ40 Automatic Injection Blow Molding Machine for 5ml-2L Bottles
ZQ40 Automatic Injection Blow Molding Machine for 5ml-2L Bottles
ZQ40 Automatic Injection Blow Molding Machine for 5ml-2L Bottles
ZQ40 Automatic Injection Blow Molding Machine for 5ml-2L Bottles
Specifications
Brand Name :
Zi-Qiang
Model Number :
ZQ40
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
30000USD
Payment Terms :
T/T
Supply Ability :
15 SET/MONTH
Delivery Time :
45 work day
Suitable Bottle Range :
5ml-2L
Product Height :
≤220 Mm
Machine Weight :
4 Ton
Max. Mold Height :
Depends on Model
Specification :
IBM65D
Plastic Materials :
PP, HDPE, PE, PE/PP
Transport Package :
Film Packing
Head Heating Power :
22kw
Voltage :
Customized According To Customer Needs
Heating Power :
30KW
Compressed Air Capacity :
0.7M³/min

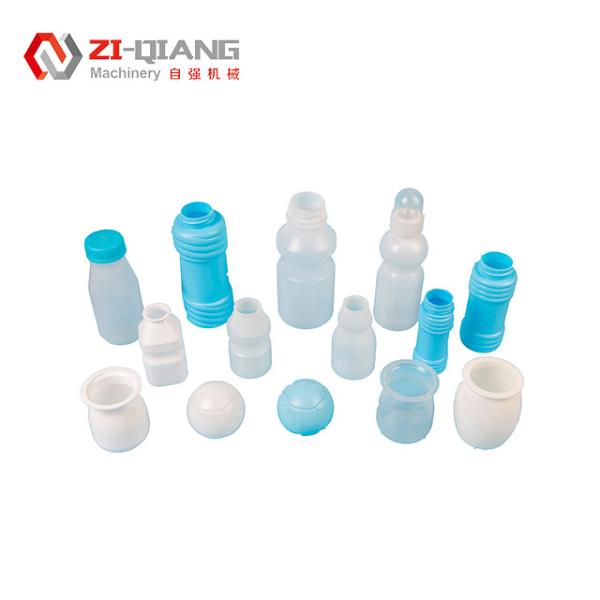

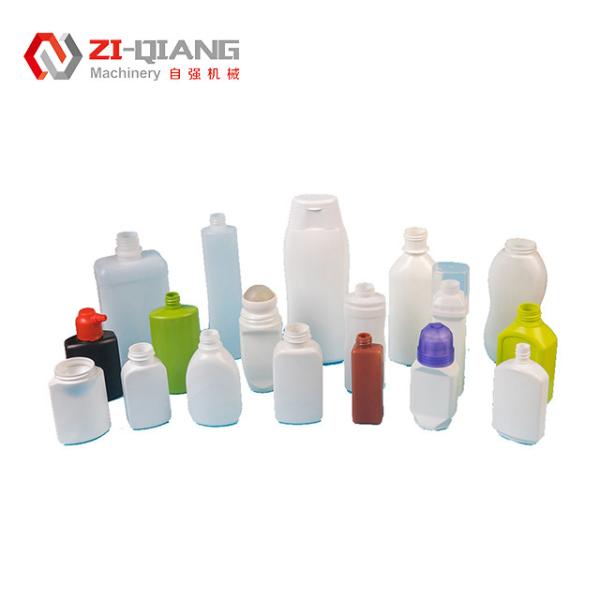

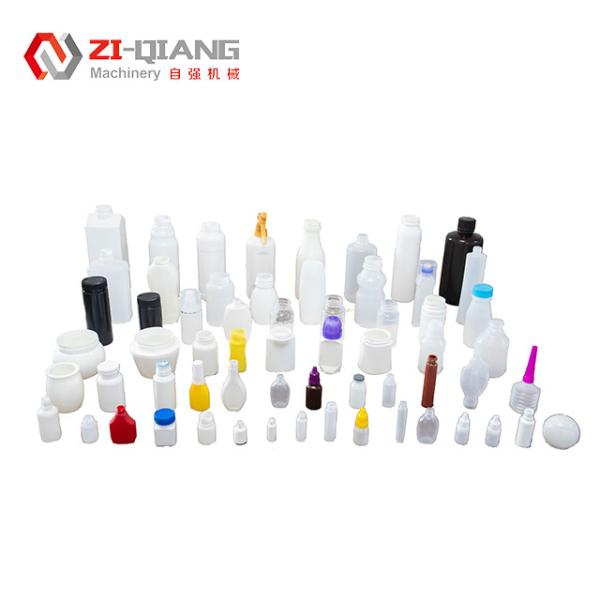

Applications :
5ml To 2L Small Plastic Bottles
Injection Mold Stroke :
120 mm
Type :
Blow Molding Machine
Production Capacity :
As Per Samples
Description

Item

Unit

ZQ40

Injection System

Screw Diameter

mm

40

Screw L/D

%

21:1

Injection weight

g

140

Heating power

KW

7.5

Number of barrel zone

3+N

Injection stroke

mm

120

Clamping System

Clamping force of injection

KN

400

Opening stroke for injection

mm

140

Clamping force of blowing

KN

60

Opening stroke for blowing

mm

140

Lifing height of rotary table

mm

70

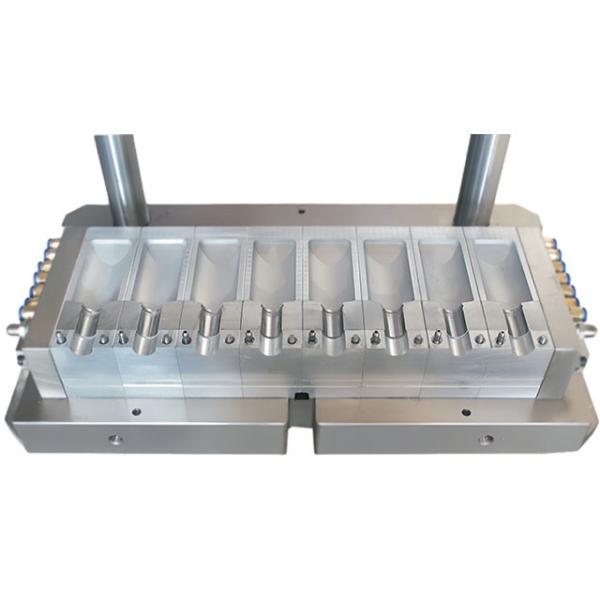

Mould

Max.Platen size(L*W)

mm

480*340

Mold thickness

mm

180

Dia.of bottle

mm

120

Bottle height

mm

220

Suitable bottle height

mm

1-1000

Stripping stroke

mm

220

Hydraulic system

Hydraulic Pressure

Map

14

Motor power

KW

11

Dry cycle

S

4

Total Power

KW

20

Operating power

%

52-70

Others

Min.Air pressure of compressed air

MPa

0.7-1.2

Compressed air capacity

M³/min

0.7

Water flowage

M³/h

4

Cooling water pressure

MPa

0.3-0.4

Dimension(L*W*H)

M

3*1.3*1.7

Net weight

Ton

3.8
