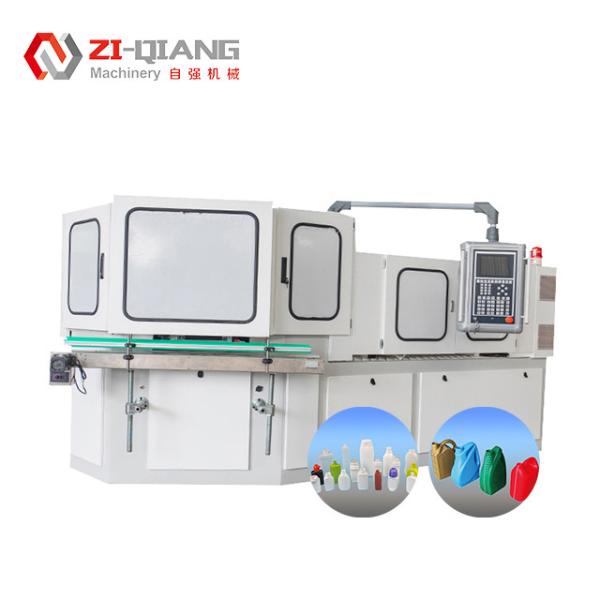

ZQ40 Automatic Injection Blow Molding Machine 260/383g Capacity
ZQ40 Automatic Injection Blow Molding Machine 260/383g Capacity
ZQ40 Automatic Injection Blow Molding Machine 260/383g Capacity
ZQ40 Automatic Injection Blow Molding Machine 260/383g Capacity
ZQ40 Automatic Injection Blow Molding Machine 260/383g Capacity
ZQ40 Automatic Injection Blow Molding Machine 260/383g Capacity
ZQ40 Automatic Injection Blow Molding Machine 260/383g Capacity
ZQ40 Automatic Injection Blow Molding Machine 260/383g Capacity
ZQ40 Automatic Injection Blow Molding Machine 260/383g Capacity
ZQ40 Automatic Injection Blow Molding Machine 260/383g Capacity
ZQ40 Automatic Injection Blow Molding Machine 260/383g Capacity
ZQ40 Automatic Injection Blow Molding Machine 260/383g Capacity
Specifications
Brand Name :
ZI QIANG
Model Number :
ZQ 40
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
30000 USD
Payment Terms :
T/T
Supply Ability :
20 SET/MONTH
Delivery Time :
45 work day
Operation Mode :
Automatic
Njection Weight :
260/383g
Suitable Bottle Range :
5ml-2L
Operating Power :
52-70%
Suitable Materials :
PP, HDPE, PE, PE/PP
Mold Opening Stroke :
200-400mm
Voltage :
Customized according to customer needs
Heating Power :
22kw
Electronic Rulers :
Italy Gefran
Made In :
China
Automation Grade :
Automatic
Origin :
Jiangsu Zhangjiagang
Machine Type :
Injection Blow Molding Machine
Description

Item

Unit

ZQ40

Injection System

Screw Diameter

mm

40

Screw L/D

%

21:1

Injection weight

g

140

Heating power

KW

7.5

Number of barrel zone

3+N

Injection stroke

mm

120

Clamping System

Clamping force of injection

KN

400

Opening stroke for injection

mm

140

Clamping force of blowing

KN

60

Opening stroke for blowing

mm

140

Lifing height of rotary table

mm

70

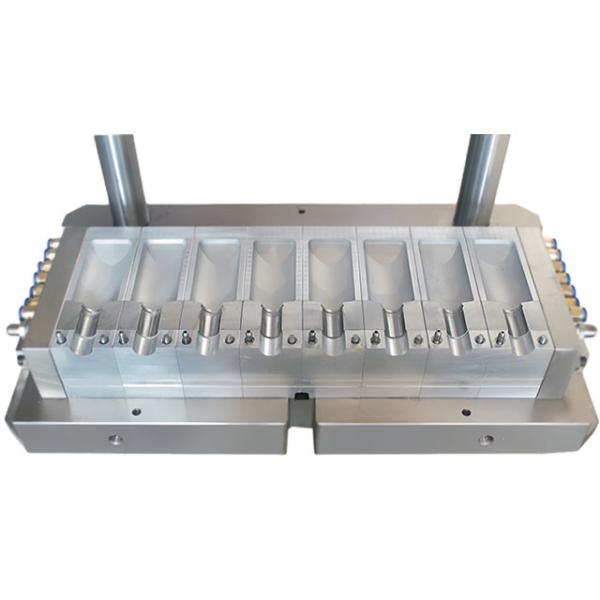

Mould

Max.Platen size(L*W)

mm

480*340

Mold thickness

mm

180

Dia.of bottle

mm

120

Bottle height

mm

220

Suitable bottle height

mm

1-1000

Stripping stroke

mm

220

Hydraulic system

Hydraulic Pressure

Map

14

Motor power

KW

11

Dry cycle

S

4

Total Power

KW

20

Operating power

%

52-70

Others

Min.Air pressure of compressed air

MPa

0.7-1.2

Compressed air capacity

M³/min

0.7

Water flowage

M³/h

4

Cooling water pressure

MPa

0.3-0.4

Dimension(L*W*H)

M

3*1.3*1.7

Net weight

Ton

3.8
