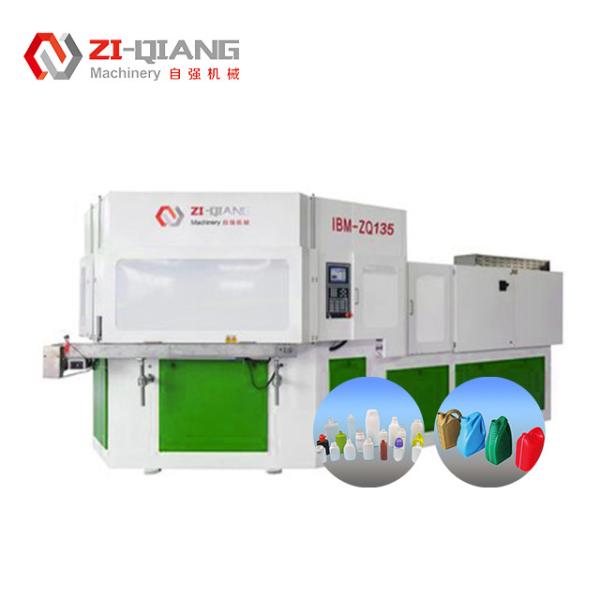

ZQ135 Fully Automatic Injection Blow Molding Machine 5ml-1L
ZQ135 Fully Automatic Injection Blow Molding Machine 5ml-1L
ZQ135 Fully Automatic Injection Blow Molding Machine 5ml-1L
ZQ135 Fully Automatic Injection Blow Molding Machine 5ml-1L
ZQ135 Fully Automatic Injection Blow Molding Machine 5ml-1L
ZQ135 Fully Automatic Injection Blow Molding Machine 5ml-1L
ZQ135 Fully Automatic Injection Blow Molding Machine 5ml-1L
ZQ135 Fully Automatic Injection Blow Molding Machine 5ml-1L
ZQ135 Fully Automatic Injection Blow Molding Machine 5ml-1L
ZQ135 Fully Automatic Injection Blow Molding Machine 5ml-1L
ZQ135 Fully Automatic Injection Blow Molding Machine 5ml-1L
ZQ135 Fully Automatic Injection Blow Molding Machine 5ml-1L
ZQ135 Fully Automatic Injection Blow Molding Machine 5ml-1L
ZQ135 Fully Automatic Injection Blow Molding Machine 5ml-1L
Specifications
Brand Name :
Zi-Qiang
Model Number :
ZQ135
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
150000USD
Payment Terms :
T/T
Supply Ability :
15 SET/MONTH
Delivery Time :
45 work day
Clamping System :
Toggle Type Clamping System
Product Height :
≤175 Mm
Electronic Rulers :
Italy Gefran

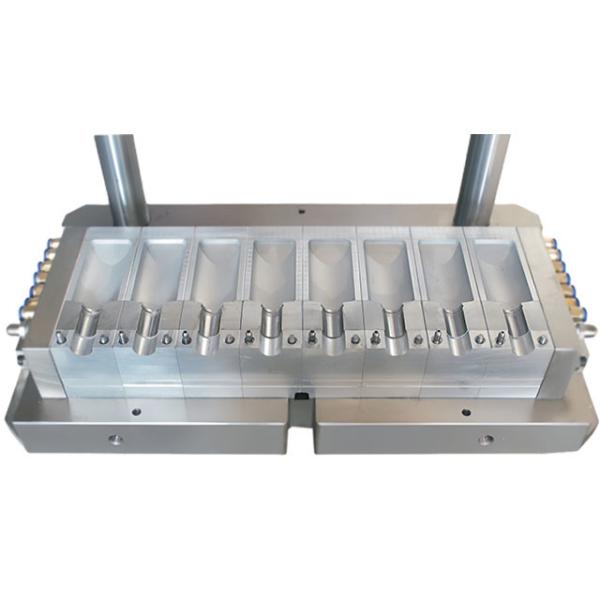

Mould Material :
S136, P20, 4Cr13
Head Heating Power :
22kw
Hollow Part Volume :
5ml to 1L
Injection Pressure :
100-200 MPa
Production Capacity :
As Per Samples
Applications :

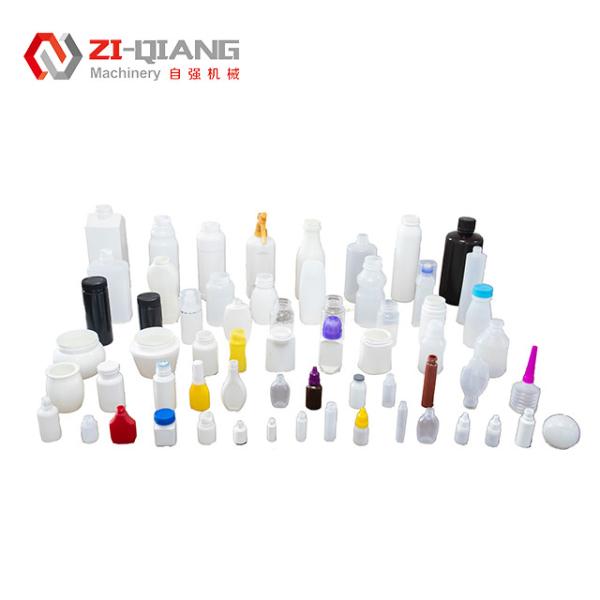

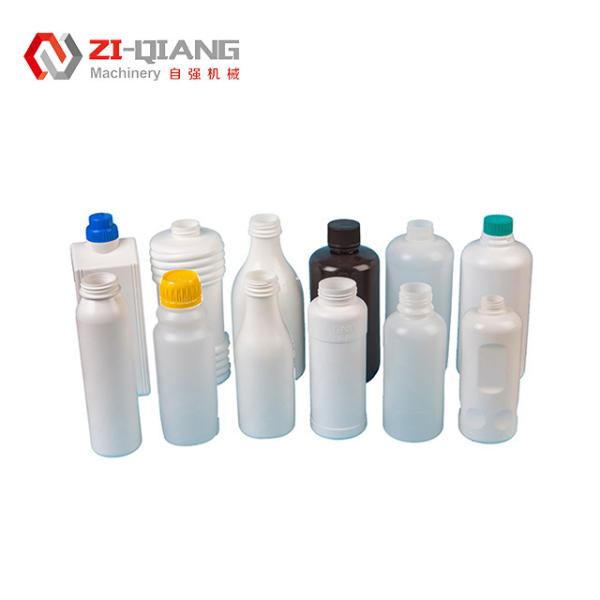

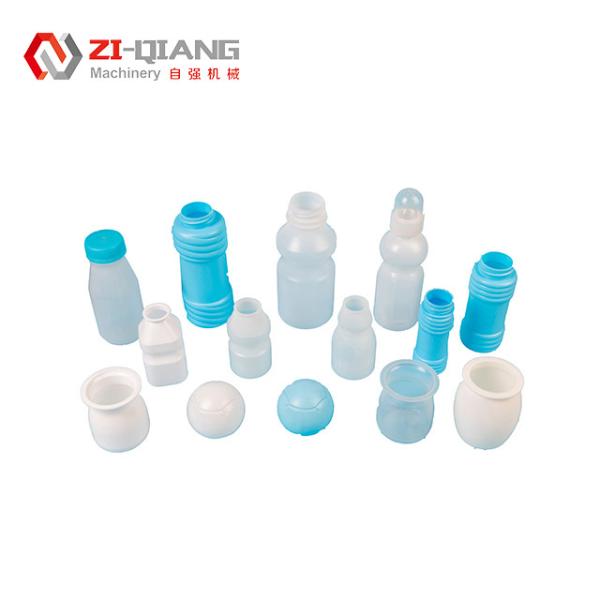

5ml to 1L small plastic bottles
Warranty :
12 Months
Control System :
PLC
Screw L/D Ratio :
22:1
Heating Power :
10-20 kW
Cooling System :
Water Cooling
Station :
Three In One
Description

Item

Unit

ZQ135

Injection System

Screw Diameter

mm

70

Screw L/D

%

22:1

Injection weight

g

650

Heating power

KW

30

Number of barrel zone

6+N

Injection stroke

mm

200

Clamping System

Clamping force of injection

KN

1350

Opening stroke for injection

mm

140

Clamping force of blowing

KN

200

Opening stroke for blowing

mm

140

Lifing height of rotary table

mm

70

Mould

Max.Platen size(L*W)

mm

1300*500

Mold thickness

mm

280

Dia.of bottle

mm

120

Bottle height

mm

220

Suitable bottle height

mm

1-1000

Stripping stroke

mm

280

Hydraulic system

Hydraulic Pressure

Map

14

Motor power

KW

37+37

Dry cycle

S

4

Total Power

KW

95

Operating power

%

52-70

Others

Min.Air pressure of compressed air

MPa

0.7-1.2

Compressed air capacity

M³/min

0.7

Water flowage

M³/h

4

Cooling water pressure

MPa

0.3-0.4

Dimension(L*W*H)

M

5.5*2*2.4

Net weight

Ton

18
