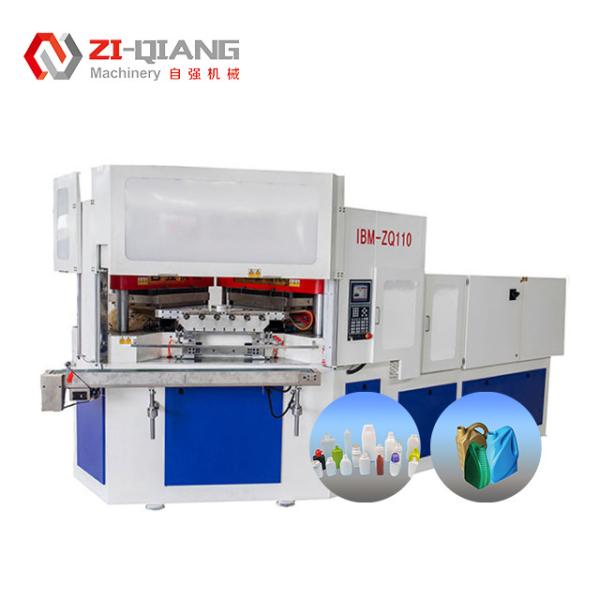

Item | Unit | ZQ110 |
Injection System | ||
Screw Diameter | mm | 65 |
Screw L/D | % | 22:1 |
Injection weight | g | 415 |
Heating power | KW | 22 |
Number of barrel zone |
| 6+N |
Injection stroke | mm | 200 |
Clamping System | ||
Clamping force of injection | KN | 1100 |
Opening stroke for injection | mm | 140 |
Clamping force of blowing | KN | 150 |
Opening stroke for blowing | mm | 140 |
Lifing height of rotary table | mm | 70 |
Mould | ||
Max.Platen size(L*W) | mm | 1100*460 |
Mold thickness | mm | 280 |
Dia.of bottle | mm | 120 |
Bottle height | mm | 220 |
Suitable bottle height | mm | 1-1000 |
Stripping stroke | mm | 260 |
Hydraulic system | ||
Hydraulic Pressure | Map | 14 |
Motor power | KW | 37+37 |
Dry cycle | S | 4 |
Total Power | KW | 90 |
Operating power | % | 52-70 |
Others | ||
Min.Air pressure of compressed air | MPa | 0.7-1.2 |
Compressed air capacity | M³/min | 0.7 |
Water flowage | M³/h | 4 |
Cooling water pressure | MPa | 0.3-0.4 |
Dimension(L*W*H) | M | 5*1.8*2.2 |
Net weight | Ton | 15 |
