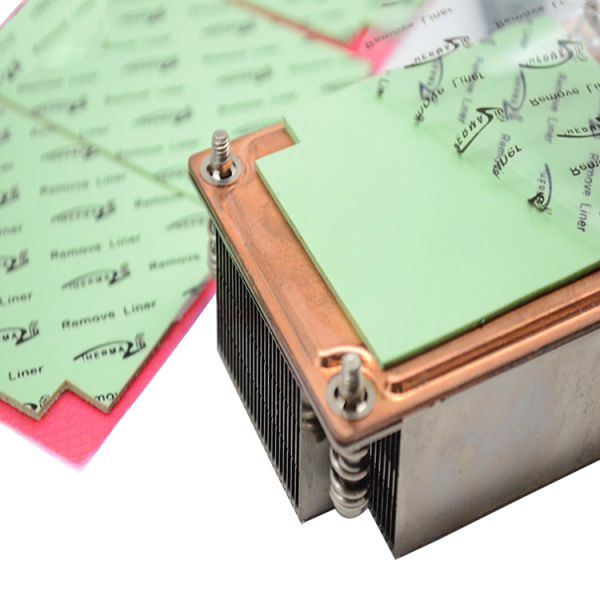

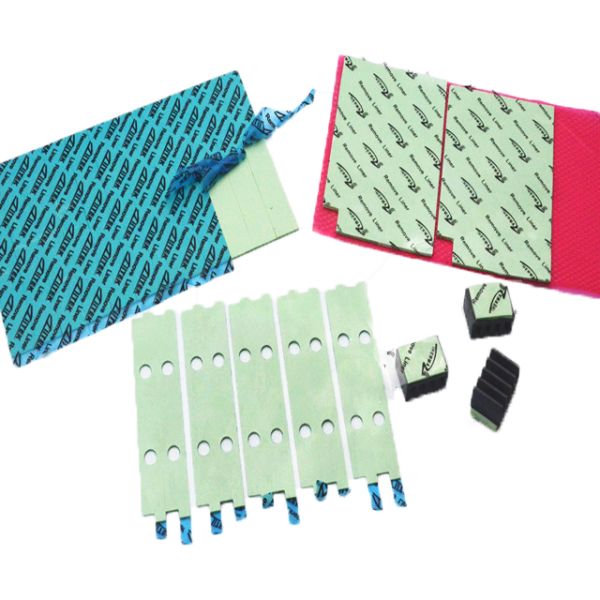

Electrically Insulated TIF100-07E Silicone Thermal Pad Thermally Conductive Silicon Material For Display Card
Electrically Insulated TIF100-07E Silicone Thermal Pad Thermally Conductive Silicon Material For Display Card
Electrically Insulated TIF100-07E Silicone Thermal Pad Thermally Conductive Silicon Material For Display Card
Electrically Insulated TIF100-07E Silicone Thermal Pad Thermally Conductive Silicon Material For Display Card
Specifications
Brand Name :
Ziitek
Model Number :
TIF1100-07E
Certification :
RoHS
Place of Origin :
Vietnam
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Products name :
Electrically Insulated TIF100-07E Silicone Thermal Pad Thermally Conductive Silicon Material For Display Card
Materials :
Ceramic filled silicone elastomer
Hardness :
35/65 Shore 00
Flame rating :
94-V0
Density :
2.1 g/cm³
Keywords :
Silicone Thermal Pad
Thermal conductivity :
1.5W/mK
Color :
Green
Application :
Display Card
Description

Electrically Insulated TIF®100-07E Silicone Thermal Pad Thermally Conductive Silicon Material For Display Card

Product descriptions

The TIF®100-07E Series is a well-balanced, general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.

Features

> Good thermal conductivity
> Naturally tacky needing no furtheradhesive coating
> Soft and Compressible for low stress application
> Available in varies thickness

> Easy release construction
> Electrically isolating
> Moldability for complex parts

Application

> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components

Typical Properties of TIF®100-07E Series
Property Value Test method
Color Green Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 2.1 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.00)
Hardness (Shore 00) 65 35 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 4.7 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 1.5 W/m-K ASTM D5470
1.5 W/m-K ISO22007

Product Specification

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm)with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mmX406 mm)


Component Codes:


Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Electrically Insulated TIF100-07E Silicone Thermal Pad Thermally Conductive Silicon Material For Display Card

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

Independent R&D team
