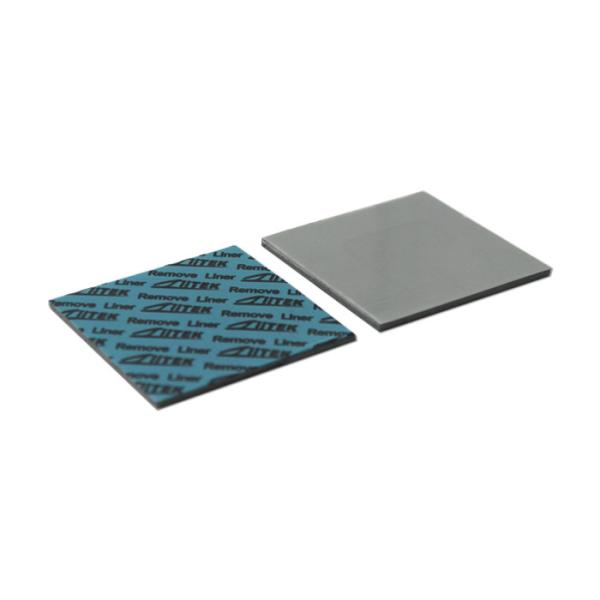

TIF100-10F Premium Soft Silicone Thermal Pad Insulated Thermal Pad Computer Cooling Thermal Pad
TIF100-10F Premium Soft Silicone Thermal Pad Insulated Thermal Pad Computer Cooling Thermal Pad
TIF100-10F Premium Soft Silicone Thermal Pad Insulated Thermal Pad Computer Cooling Thermal Pad
TIF100-10F Premium Soft Silicone Thermal Pad Insulated Thermal Pad Computer Cooling Thermal Pad
Specifications
Materials :
Ceramic filled silicone elastomer
Density :
2.3g/cm³
Flame rating :
94-V0
Brand Name :
Ziitek
Model Number :
TIF100-10F
Certification :
RoHS
Place of Origin :
Vietnam
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Keywords :
Silicone Thermal Pad
Thermal conductivity :
1.5W/mK
Application :
CPU & Electronic Component Gap Filling
PrHigh Quality Thickness 0.5mm To 5.0mm Insulated Thermal Pad Computer Cooling Thermal Padoducts nam :
Premium Soft Silicone Thermal Pad Insulated Thermal Pad Computer Cooling Thermal Pad
Thickness range :
0.010inch (0.25mmT)~0.200inch (5.0mm)
Hardness :
65/60 Shore 00
Color :
Gray
Description

TIF100-10F Premium Soft Silicone Thermal Pad Insulated Thermal Pad Computer Cooling Thermal Pad

Product descriptions

TlF®100-10F is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

Features

> Good thermal conductive 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Easy release construction
> Electrically isolating
> High durability

Application

> Mainboard/mother board
> Notebook
> Power supply
> Micro heat pipe thermal solutions
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes

Typical Properties of TIF®100-10F Series
Property Value Test method
Color Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 2.1 ASTM D792
Thickness Range(inch/mm)

0.010~0.020

0.25~0.50

0.030~0.200

0.75~5.00

 ASTM D374
Hardness(Shore 00) 65 60 ASTM 2240
Continuos Use Temp -40 to 200℃ ***
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant @1MHz 4.5 ASTM D150
Volume Resistivity (Ohm-meter) ＞1.0X1012 ASTM D257
Thermal Conductivity (W/m-K) 1.5 ASTM D5470
1.5 ISO22007
Fire rating V-0 UL 94 (E331100)
Product Specifications
Standard Thickness: 0.010" (0.25 mm)～0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mm X406 mm).

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

TIF100-10F Premium Soft Silicone Thermal Pad Insulated Thermal Pad Computer Cooling Thermal Pad

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

Our services

Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
