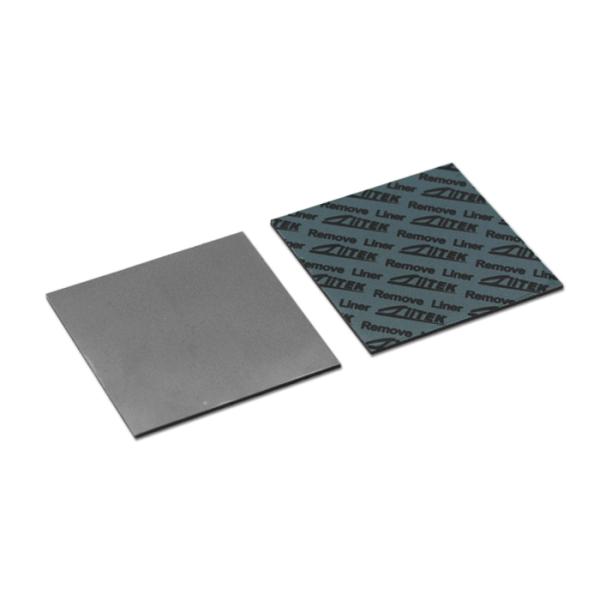

TIF100-30-11E Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Electronics
TIF100-30-11E Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Electronics
TIF100-30-11E Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Electronics
TIF100-30-11E Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Electronics
Specifications
Brand Name :
Ziitek
Model Number :
TIF100-30-11E
Certification :
UL and RoHs
Place of Origin :
Vietnam
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Products name :
Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Electronics
Thermal Conductivity :
3.0W/mK
Application :
Electronics cooling
Density :
3.0g/cc
Keywords :
Thermal Pads
Color :
Dark Gray
Hardness :
65/35 Shore 00
Dielectric Breakdown Voltage :
>5500VAC
Flame Rating :
UL 94 V-0
Description

TIF100-30-11E Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Electronics

The TIF®100-30-11E Series is a well-balanced,general-purpose thermal pad.It offers good thermal conductivity_and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use,making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.It is an ideal choice for addressing medium to high power heat dissipation needs,achieving the best balance between cost and performance.

Features:


> Good thermal conductive: 3.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available


Applications:


> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> CD-Rom, DVD-Rom cooling
> LED Power Supply
> LED Controller
> LED Ceilinglamp

Typical Properties of TIF®100-30-11E Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.0 ASTM D792
Thickness Range(inch/mm) 0.010~0.030 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.0)
Hardness 65 Shore 00 35 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 7.0 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 3.0 W/m-K ASTM D5470
3.0 W/m-K ISO22007

Product Specifications
Standard Thickness: 0.010" (0.25 mm)-0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mmX406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information,please contact us.

TIF100-30-11E Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Electronics
Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.
