Specifications
MOQ :
10KG
Delivery Time :
3-5 work days
Keywords :
Thermal Conductive Glue
Model Number :
TIS680-28AB
Usage :
Potting
Payment Terms :
T/T
Construction :
Ceramic-filled silicone
Hardness :
65(Shore 00)
Price :
0.1-10 USD/kg
Thermal Conductivity :
2.8W/mk
Supply Ability :
10000KG/month
Products name :
Silica Gel Thermal-Conducting Potting Compound Two Component Offering Flexibility Elasticity And Heat Transfer For Electronics
Brand Name :
Ziitek
Part :
Two Component
Packaging Details :
1kg/can
Color :
White
Mix Ratio :
1:1
Certification :
UL and RoHs
Place of Origin :
Vietnam
Breakdown Voltage (V/mm) :
≥10000
Description

Silica Gel Thermal-Conducting Potting Compound Two Component Offering Flexibility Elasticity And Heat Transfer For Electronics

Products description

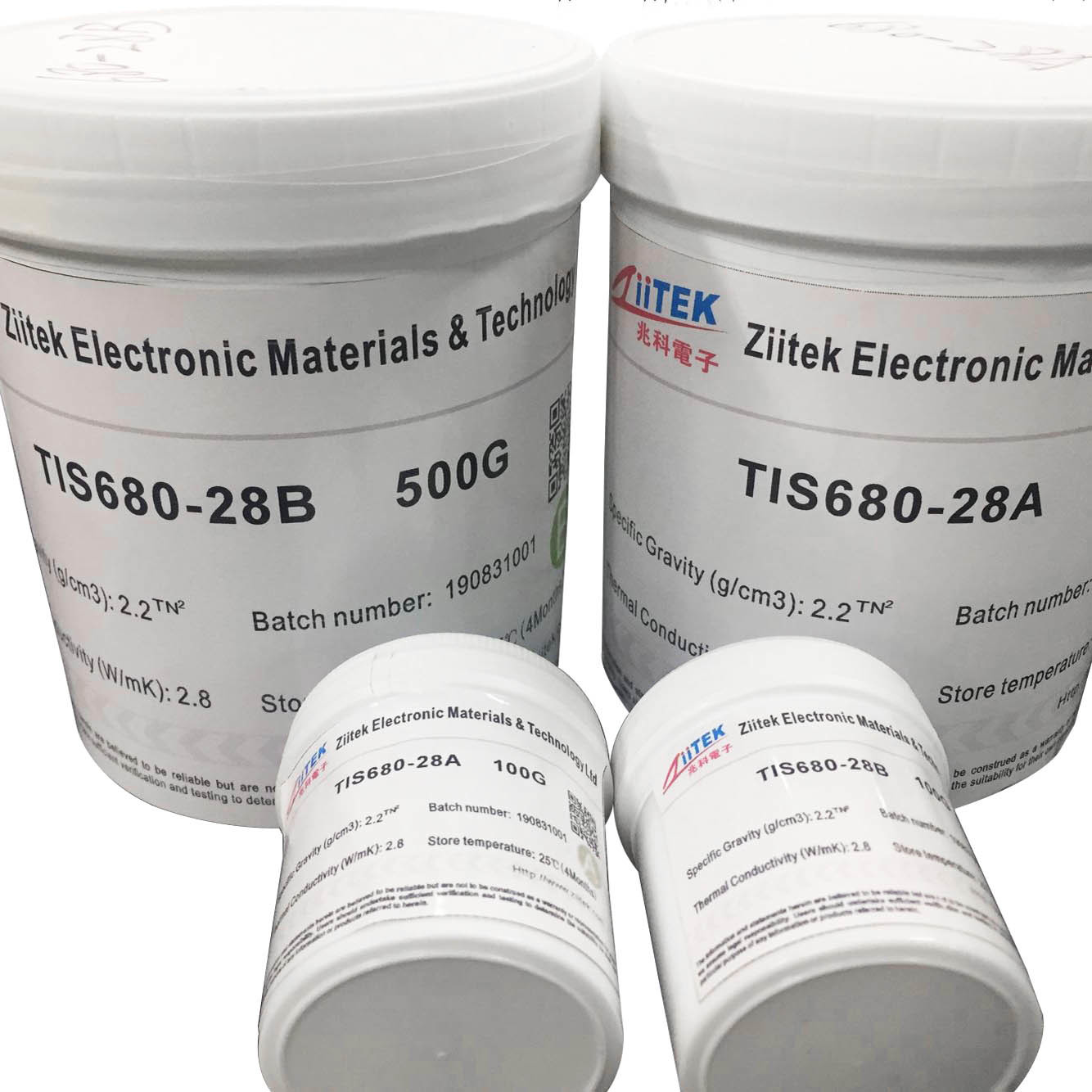

TIS®680-28AB is a two-component potting adhesive.When Component A and Component B are mixed in a specific ratio, the adhesive can cure and form into' shape either at room temperature or under heating conditions. After curing, it forms a dense elastomer with integrated performance characteristics: good thermal conductivity, electrical insulation, resistance to extreme temperatures, and anti-aging properties. It features low shrinkage rate, can closely adhere to various substrates, and effectively fills thegaps between electronic components. This product delivers comprehensive protection for electronic assemblies, including thermal conduction, insulation, waterproofing, shock absorption, flame retardancy, and mechanical safeguarding.

Features

> Good thermal conductive: 2.8W/mK

> Good electrical insulation performance
> Controllable curing performance
> Flexibly adjustable mechanical properties
> Low viscosity facilitating gas release
> Good solvent and water resistance
> Excellent process compatibility
> Excellent resistance to extreme temperatures

Application

> New energy vehicle electronics
> Industrial electronics and power equipment
> Consumer electronics
> Medical electronics
> Aerospace electronic components
> Rail transit electronic equipment
> Marine detection equipment

Typical Properties of TIS®680-28AB
Uncured Material Properties
Property Value Test Method
Construction Ceremic-filled silicone -
Color/Part A White Visual
Color/Part B White Visual
Part A Viscosity (mPa.s) 6000 GB/T 10247
Part B Viscosity (mPa.s) 6000 GB/T 10247
Mix Ratio 1:1 -
Shelf life (Months) 6 (Unopened) -
Cure Schedule
Pot Life @25℃ 30 mins Ziitek Test Method
Cure @25℃ 3 hours Ziitek Test Method
Cure @70℃ 20 mins Ziitek Test Method
Cure Material Properties
Color White Visual
Hardness (Shore 00) 65 ASTM D2240
Density (g/cm³) 2.2 ASTM D792
Recommended Operating temperature (℃) -45 ~200 -
Flame Rating V-0 UL 94
Thermal Conductivity (W/mK) 2.8 ASTM D5470
Breakdown Voltage (V/mm) ≥10000 ASTM D149
Dielectric Constant @1MHz 4.2 ASTM D150
Volume Resistivity (Ohm·cm) >1.0x1013 ASTM D257
Package:
300ml/Tube, 24PCS/Box

Company Profile

Vietnam Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.
