Specifications
Hardness :
65(Shore 00)
Products name :
Waterproof And Air-Tight Two Part 1.5W/Mk Thermal Potting Compound Silicone For EV Electric Vehicle
Part :
Two Component
Price :
0.1-10 USD/kg
Payment Terms :
T/T
Keywords :
Thermal Potting Compound Silicone
Material :
Potting compound of silicone
Certification :
UL and RoHs
Thermal Conductivity :
1.0W/mk
Place of Origin :
Vietnam
MOQ :
10KG
Delivery Time :
3-5 work days
Supply Ability :
10000KG/month
Packaging Details :
1kg/can
Model Number :
TIS680-10AB
Brand Name :
Ziitek
Appearance :
Gray white
Usage :
Potting
Density(g/cm³) :
1.73
Shelf life (months) :
6 (Unopened)
Description

Waterproof And Air-Tight Two Part 1.5W/Mk Thermal Potting Compound Silicone For EV Electric Vehicle

Products description

TIS®680-10AB is a two-component potting adhesive.When Component A and Component B are mixed in a specific ratio, the adhesive can cure and form into'shape either at room temperature or under heating conditions. After curing, it forms a dense elastomer with integrated performance characteristics: good thermal conductivity, electrical insulation, resistance to extreme temperatures, and anti-aging properties. It features low shrinkage rate, can closely adhere to various substrates, and effectively fills thegaps between electronic components. This product delivers comprehensive protection for electronic assemblies,including thermal conduction, insulation, waterproofing, shock absorption, flame retardancy, and mechanical safeguarding.

Feature

>Good thermal conductivity
>Good electrical insulation performance
>Controllable curing performance
>Flexibly adjustable mechanical properties
>Low viscosity facilitating gas release
>Excellent solvent and water resistance
>Excellent process compatibility
>Excellent resistance to extreme temperatures

Application


>New energy vehicle electronics
>Industrial electronics and power equipment
>Consumer electronics
>Medical electronics
>Aerospace electronic components
>Rail transit electronic equipment
>Marine detection equipment

Typical Properties of TIS®680-10AB Series
Uncured Material Properties
Property Value Test Method
Construction Ceremic-fiiled silicone -
Color/Part A White Visual
Color/Part B Black Visual
Part A Viscosity (mPa.s) 3500 GB/T 10247
Part B Viscosity (mPa.s) 3500 GB/T 10247
Mix Ratio 1:1 -
Shelf life (months) 6 (Unopened) -
Cure Schedule
Pot Life @25℃ 30 mins Ziitek Test Method
Cure @25℃ 3 hours Ziitek Test Method
Cure @70℃ 20 mins Ziitek Test Method
Cure Material Properties
Color Gray White Visual
Hardness (Shore 00) 65 ASTM D2240
Density (g/cm³) 1.73 ASTM D792
Recommended Operating temperature (℃) -45 ~200 -
Flame Rating V-0 UL 94
Thermal Conductivity (W/mK) 1.0 ASTM D5470
Breakdown Voltage (V/mm) ≥7000 ASTM D149
Dielectric Constant @1MHz 4.2 ASTM D150
Volume Resistivity (Ohm·cm) >1.0x1012 ASTM D257

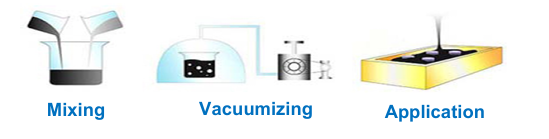

Instruction For Use

TIS680-10AB Waterproof And Air-Tight Two Part 1.5W/Mk Thermal Potting Compound Silicone For EV Electric Vehicle

Product packaging:

1KG A/B for each tank.

5KG A/B each.

10KG A/B each.
