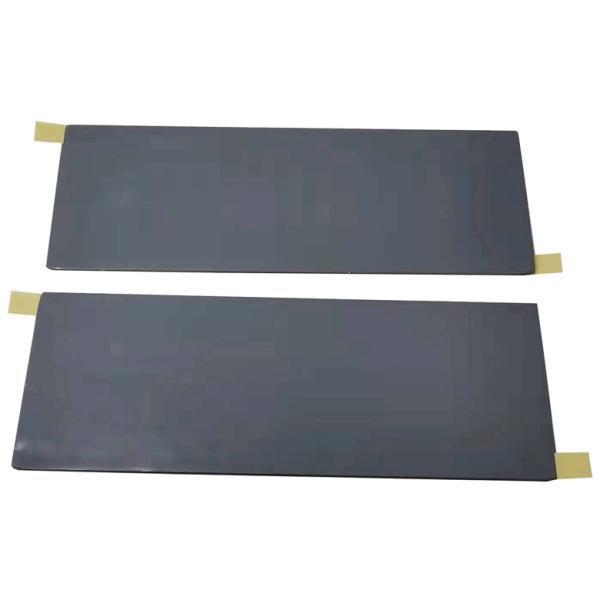

TIF100-20-11E Thermal Conductive Pad Featuring 2W Thermal Conductivity And Ideal For Heat Dissipation In Electronics
TIF100-20-11E Thermal Conductive Pad Featuring 2W Thermal Conductivity And Ideal For Heat Dissipation In Electronics
TIF100-20-11E Thermal Conductive Pad Featuring 2W Thermal Conductivity And Ideal For Heat Dissipation In Electronics
TIF100-20-11E Thermal Conductive Pad Featuring 2W Thermal Conductivity And Ideal For Heat Dissipation In Electronics
Specifications
Model Number :
TIF100-20-11E
Breakdown Voltage（V/mm） :
≥5500
Payment Terms :
T/T
Application :
For Heat Dissipation In Electronics
Color :
Dark Gray
Price :
0.1-10 USD/PCS
Thermal Conductivity :
2.0W/mK
Supply Ability :
100000pcs/day
Products name :
Thermal Conductive Pad Featuring 2W Thermal Conductivity And Ideal For Heat Dissipation In Electronics
Brand Name :
Ziitek
Keywords :
Thermal Conductive Pad
MOQ :
1000pcs
Delivery Time :
3-5 work days
Hardness :
65/35 Shore 00
Packaging Details :
24*13*12cm cartons
Density :
2.55g/cm³
Certification :
UL and RoHs
Place of Origin :
Vietnam
Sample :
Sample free
Description

Thermal Conductive Pad Featuring 2W Thermal Conductivity And Ideal For Heat Dissipation In Electronics

Products description

Ziitek TIF®100-20-11E Series is a well-balanced, general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.

Features:


> Good thermal conductive
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating


Applications:


> Mainboard/mother board
> Notebook
> Automotive electronics
> Set top boxes
> Audio and video components

> Medical Devices
> Auditioning electronic products
> Unmanned aerial vehicle(UAV)

> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers

Typical Properties of TIF®100-20-11E Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 2.55 ASTM D792
Thickness Range(inch/mm)

0.010~0.020

0.25~0.50

0.030~0.200

0.75~5.00

 ASTM D374
Hardness (Shore 00) 65 35 ASTM 224
Recommended Operating Temperature (°C) -40 to 200℃ ***
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant @1MHz 5.0 ASTM D150
Volume Resistivity ＞1.0X1012Ohm-meter ASTM D257
Thermal Conductivity (W/m-K) 2.0 ASTM D5470
2.0 ISO22007
Fire rating V-0 UL 94 (E331100)

Product Specifications


Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mmX406 mm)


Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2(Single-sided/Double-sided adhesive).


The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

TIF100-20-11E Thermal Conductive Pad Featuring 2W Thermal Conductivity And Ideal For Heat Dissipation In Electronics
Company Profile

VIETNAM ZITEK TECHNOLOGYCOMPANYLIMITD is dedicated to providing a comprehensive range of thermal management products and services to meet various demand scenarios. Ziitek Technology offers prompt and flexible services. Our thermal conductive materials are widely used in the fields of new energy, electronic appliances, transportation, industry, healthcare, communication, etc. Ziitek has obtained ISO9001, ISO14001 and IECQ certifications, which indicate our commitment to producing high-quality products and adopting excellent management methods. Our products comply with RoHS, REACH and UL standards, ensuring safety and reliability.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in Vietnam.

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online.

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.
