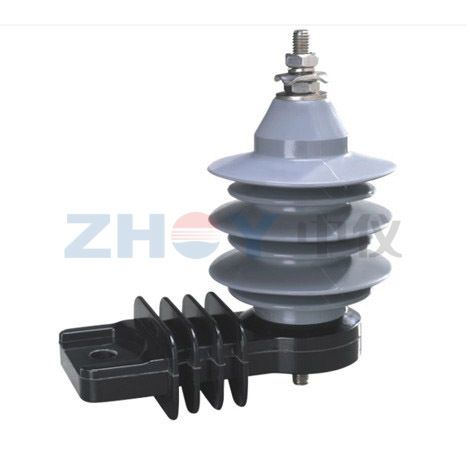

Polymer Type Surge Arrester 6KV
Polymer Type Surge Arrester 6KV
Specifications
Code No. :
YH5W-6
4/10μs High current impulse withstand :
65
Long impulse withstand current 2000 us :
250
Delivery Time :
5-10 Days
Price :
Negotiate
Packaging Details :
Carton
Rated Voltage (KV(rms)) :
6
8/20μs Lightning current impulse (KV(crest)) :
18
30/60μs Switching current impulse (KV(crest)) :
16.8
MCOV (KV(rms)) :
5.1
1/4μs Steep current impulse (KV(crest)) :
22.6
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Place of Origin :
China
Description

Metal Oxide Arrester (MOA)

The Metal Oxide Arrester (MOA) represents the pinnacle of over-voltage protection technology. Utilizing advanced Zinc oxide barriers, it offers superior flow capacity and performance compared to traditional silicon carbide arresters.

Advanced Core: Zinc oxide barrier technology for superior non-linear performance.
Efficient Protection: Effectively limits over-voltage energy to protect transmission equipment.
Operational Reliability: Minimal microamp current flow under nominal voltage conditions.

Operational Environment

Ambient Temp: -40℃ - 40℃
Altitude: 1000-2000m
AC Frequency: 50Hz or 60Hz
Max Wind Velocity: ≤35m/s
Earthquake Class: ≤7°

Technical Specifications

Code No. Rated Voltage (KV) MCOV (KV) 8/20μs Lightning Impulse (KV)
YH5W-665.118
YH10W-665.118
