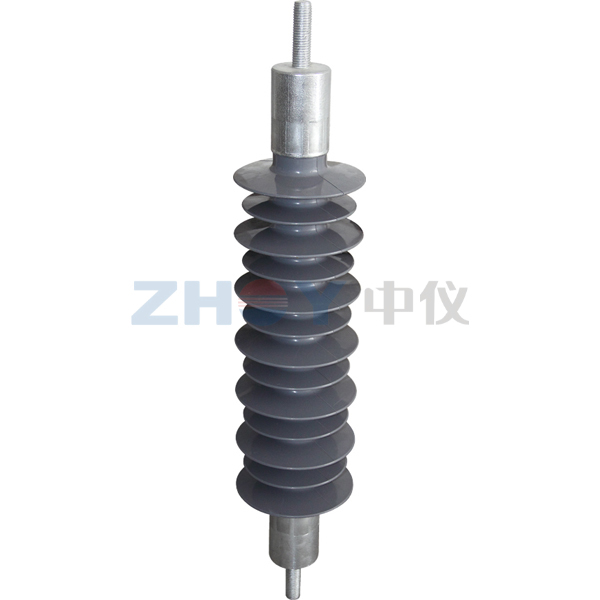

Composite Electric-Railway Link Insulator (FQX3-25/60)
Composite Electric-Railway Link Insulator (FQX3-25/60)
Specifications
Model Type :
FQX4-25
Structure Height H. (mm) :
806
Packaging Details :
Carton
Min Creepage Distance(mm) :
1400
P. F Wet Withstand Voltage(virtual value)(KV) :
130
Price :
Negotiate
Lightning Impulse Withstand Voltage(peak)/KV :
270
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Rated Voltage :
25
Delivery Time :
5-10 Days
Rated Mechanical Load(KN) :
60
Place of Origin :
China
Description

Electric Railway Composite Insulator Series

Engineered for high-performance electric railway systems, this insulator is designed to excel in complex operational environments. It provides superior protection against flash accidents while significantly reducing maintenance frequency and costs.

Key Advantages

Flash Accident Prevention: Advanced material properties ensure reliable operation in harsh conditions.
Low Maintenance: Reduces the frequency of cleaning and manual inspections.
Compact Design: Small volume and lightweight structure compared to traditional porcelain or glass insulators.

Technical Specifications

Model Voltage (KV) Height (mm) Load (KN)
FQX1-252565060
FQX2-252584060
FQX3-252593060
FQX4-252564560
FQE1-252576060
PQE2-252580660
FQE3-252583660
FQE4-252569560

* All models feature a Min Creepage Distance of 1400mm, Lightning Impulse Withstand Voltage of 270KV, and P.F Wet Withstand Voltage of 130KV.
