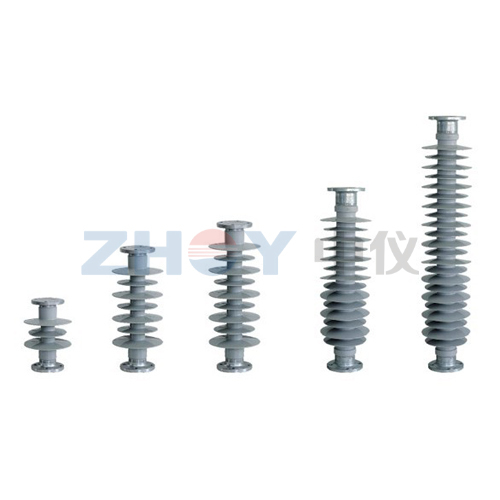

Post(Vertical Line Post)Composite Insulator
Post(Vertical Line Post)Composite Insulator
Specifications
Section Length (mm) :
1220
Lightning Impulse Withstand BIL (KV) :
500
Power Frequence Withstand (wet) (KV) :
65
Min Arc Distance (mm) :
1080
Specified Mechanical Load (kN) :
10
Leakage Distance (mm) :
750
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Rated Voltage (KV) :
35
Diameter of shed D (mm) :
100/90
Code No. :
FZSW-66/6
Delivery Time :
5-10 Days
Packaging Details :
Carton
Place of Origin :
China
Price :
Negotiate
Description

High-Performance Composite Polymer Insulators

Our composite insulators are engineered for high-voltage transmission and distribution systems, providing superior electrical isolation. Utilizing advanced epoxy rods and high-grade rubber sheds, these insulators offer a modern, durable alternative to traditional ceramic and glass components.

Key Advantages:

  • ✅ Lightweight: Only 1/4 to 1/8 the weight of traditional insulators.
  • ✅ High Strength: 10x stronger than high-strength porcelain insulators.
  • ✅ Superior Hydrophobicity: Excellent anti-water performance for cleaner operation.
  • ✅ Long Service Life: Advanced polymer materials designed to last for several decades.

Product Attributes

Material: Epoxy rod with polymer rubber sheds
Application: High voltage transmission & distribution
Design: Advanced composite polymer structure

Technical Specifications

Model Voltage (kV) Load (kN) Length (mm)
FZSW-10/4104215
FZSW-20/8208400
FZSW-35/6356450
FZSW-66/6666760
FZSW-66/8668760
FZSW-110/10110101220
FZSW-220/10220102440
