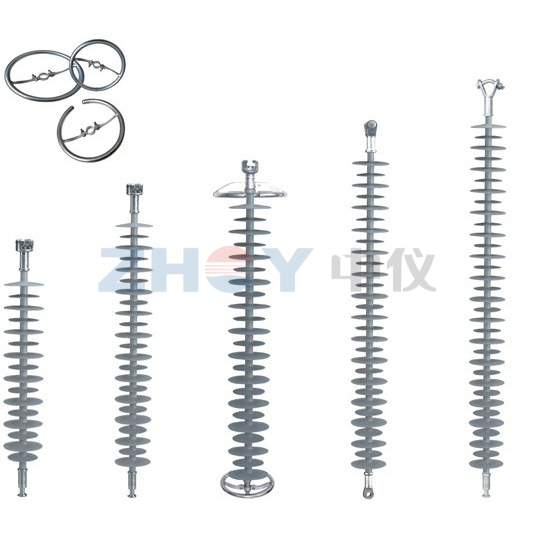

(Long Rod)Suspension Composite Insulator
(Long Rod)Suspension Composite Insulator
Specifications
Rated Voltage(KV) :
FXBW4-12
Power Frequence Withstand(wet) (KV) :
2200
Lightning Impulse Withstand BIL(KV) :
1012
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Min Arc Distance L1(mm) :
120/160/210
Leakage Distance(mm) :
4080
Section Length L(mm) :
220-240
Packaging Details :
Carton
Price :
Negotiate
Delivery Time :
5-10 Days
Place of Origin :
China
Description

High-Performance Composite Insulators (FXBW4 Series)

The FXBW4 series composite insulator is a critical component for high-voltage transmission and distribution systems. Engineered with an epoxy rod core and advanced polymer sheds, it provides superior isolation for live parts compared to traditional ceramic or glass alternatives.

Key Advantages

  • ✅ Lightweight: Only 1/4 to 1/8 the weight of traditional insulators.
  • ✅ High Strength: 10x higher mechanical strength than high-strength porcelain.
  • ✅ Superior Durability: Excellent anti-water properties and extended service life spanning several decades.

Product Attributes

Unit: Piece
MOQ: 0
Packaging: N/A

Technical Specifications

Model Length (mm) Leakage Dist. (mm) BIL (KV)
FXBW4-1266-72900680
FXBW4-110110-13212401012
FXBW4-145132-14516601440
FXBW4-220220-24021601930
FXBW4-330310-35029902600
FXBW4-500500-55040803730
