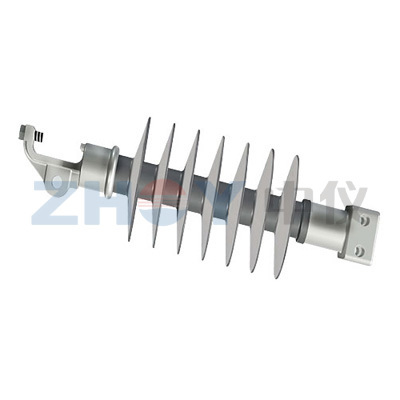

Line post insulator
Line post insulator
Specifications
Specified Mechanical Load :
11kN
BIL :
760kV
Number of Sheds :
12
Dry Arcing Distance h :
556mm
Type :
FZS-38
Power Frequency Wet Flashover :
430kV
Leakage Distance :
3150mm
Section Length H :
1510mm
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Rated Voltage :
38kV
Place of Origin :
China
Price :
Negotiate
Delivery Time :
5-10 Days
Packaging Details :
Carton
Description

FZS Series Post Insulators

FZS series post insulators are engineered for long rural lines, providing superior reliability and maintenance-free operation. Widely utilized in diverse pole-top configurations, these insulators enhance both the aesthetic appeal and electrical performance of urban and rural distribution overhead networks.

Key Benefits

  • ✅ Excellent electrical characteristics for stable power transmission.
  • ✅ High shock and collision resistance ensuring durability in harsh environments.
  • ✅ Superior sealing performance for long-term protection against environmental factors.

Technical Specifications

Type Rated Voltage Mechanical Load Leakage Distance
FZS-3838kV12.5kN1330mm
FZS-6969kV11kN1420mm
FZS-115115kV9.5kN2130mm
FZS-138138kV6.6kN3150mm
