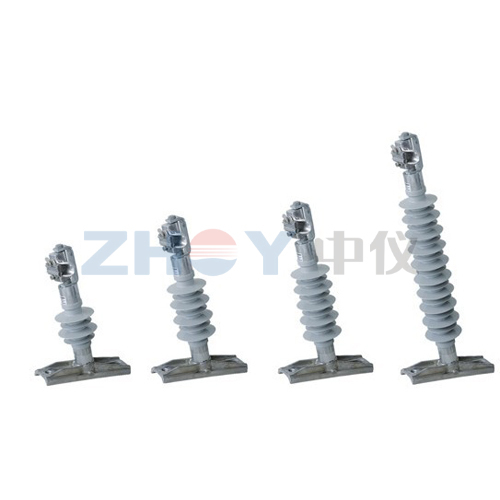

Horizontal Line Composite Insulator
Horizontal Line Composite Insulator
Specifications
Power Frequence Withstand(wet) (KV) :
65
Code No :
FZSW-66
Specified Mechanical Load(KN) :
8/12
Lightning Impulse Withstand BIL(KV) :
600
Place of Origin :
China
Rated Voltage (KV) :
35-38
Section Length L(mm) :
960
Min Arc Distance L1(mm) :
369
Leakage Distance (mm) :
355
Delivery Time :
5-10 Days
Packaging Details :
Carton
Price :
Negotiate
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Description

Composite Polymer Insulator

The essential component for high-voltage transmission and distribution systems, designed for superior isolation of live parts. Utilizing advanced epoxy rod cores and rubber sheds, our composite insulators offer a modern, high-performance alternative to traditional ceramic and glass solutions.

Key Advantages

  • ✅ Lightweight: Only 1/4 to 1/8 the weight of traditional insulators.
  • ✅ High Strength: 10x higher mechanical strength than porcelain.
  • ✅ Hydrophobic: Excellent anti-water performance for cleaner operation.
  • ✅ Longevity: Engineered for a service life spanning several decades.

Application Standards

Suitable for AC 220KV and below generation, transmission, substation, and distribution systems.

Compliance

Naming based on JB/T9683-1999; parameters meet JB/T5892-1991 and JB/T8737-1998.

Technical Specifications

Model Voltage (KV) Load (KN) Leakage Dist (mm)
FZSW-1210-1512.5355
FZSW-2424-278/12850
FZSW-3535-386/8/121050
FZSW-6666-726/8/121800
FZSW-132110-1456/8/123210
