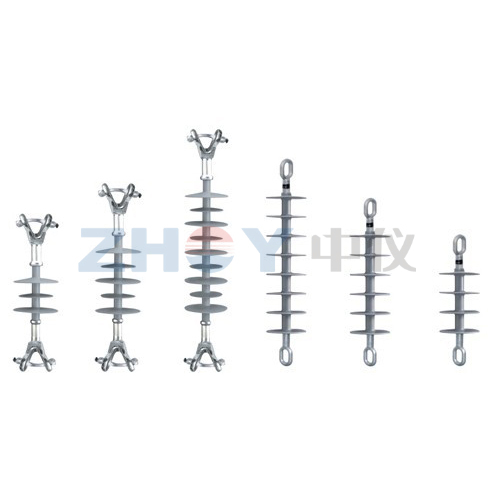

(Long Rod)Suspension Composite Insulator
(Long Rod)Suspension Composite Insulator
Specifications
Packaging Details :
Carton
Specified Mechanical Load(KN) :
70/100
Min Arc Distance L1(mm) :
169
Code No :
FXB-12
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Power Frequence Withstand(wet) (KV) :
45
Place of Origin :
China
Rated Voltage (KV) :
24-28
Leakage Distance (mm) :
440
Lightning Impulse Withstand BIL(KV) :
95
Section Length L(mm) :
475/496
Delivery Time :
5-10 Days
Price :
Negotiate
Description

Composite Polymer Insulators

Composite insulators are essential components for high-voltage transmission and distribution systems, designed for the isolation of live parts. Utilizing high-quality epoxy rods and rubber sheds, these polymer insulators represent the next generation of power system infrastructure.

Key Advantages

  • Lightweight: Only 1/4 to 1/8 the weight of traditional ceramic or glass insulators.
  • High Strength: 10 times higher mechanical strength than high-strength porcelain insulators.
  • Superior Performance: Excellent anti-water (hydrophobic) properties.
  • Extended Longevity: Overcomes short-life issues of conventional materials; designed for several decades of service.

Technical Specifications

Code No Rated Voltage (KV) Mech. Load (KN) Impulse BIL (KV)
FXB-1212-1570/10095
FXB-2424-2870/100185
FXB-3533-3870/100230
