VSG-12 indoor high voltage vacuum circuit breaker 12KV MV VCB
VSG-12 indoor high voltage vacuum circuit breaker 12KV MV VCB
VSG-12 indoor high voltage vacuum circuit breaker 12KV MV VCB
VSG-12 indoor high voltage vacuum circuit breaker 12KV MV VCB
VSG-12 indoor high voltage vacuum circuit breaker 12KV MV VCB
VSG-12 indoor high voltage vacuum circuit breaker 12KV MV VCB
VSG-12 indoor high voltage vacuum circuit breaker 12KV MV VCB
VSG-12 indoor high voltage vacuum circuit breaker 12KV MV VCB
Specifications
Item :
Rated insulation level (Thunder impulse withstand voltage)
Data :
42/48
Price :
Negotiate
Delivery Time :
5-10 Days
Unit :
times
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Place of Origin :
China
Packaging Details :
Carton
Description

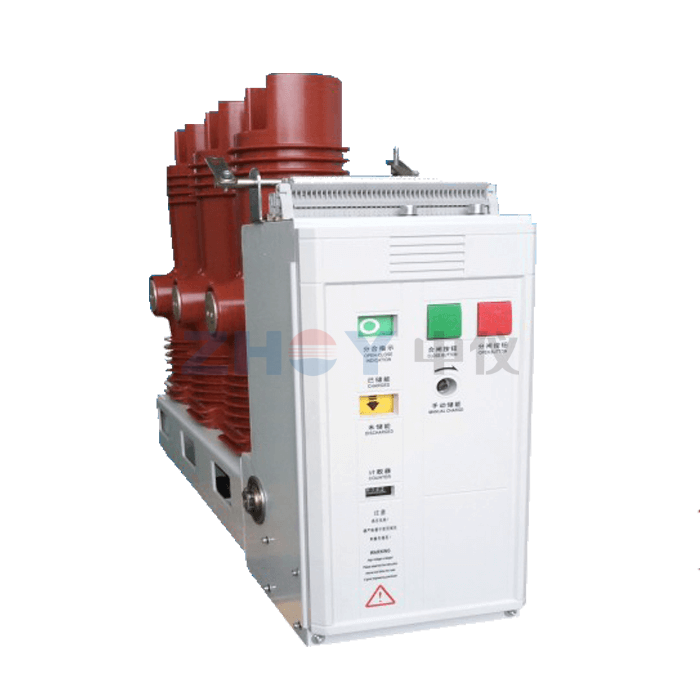

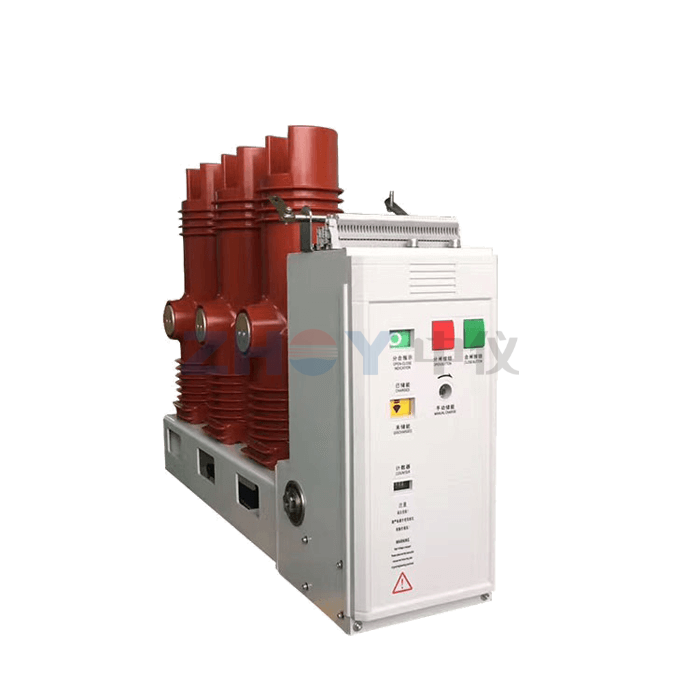

VSG Indoor High Voltage Vacuum Circuit Breaker

The VSG indoor high voltage vacuum circuit breaker is a premium solution engineered for 12KV power systems. Designed for reliability and frequent operation, it effectively handles diverse load switching requirements with superior safety and performance.

Core Advantages & Features

  • ✅ Advanced Protection: Features international brand enclosed columns protecting against collision, dust, and condensation.
  • ✅ High Durability: E2 level electrical life and M2 level mechanical life ratings.
  • ✅ Low Maintenance: Innovative design realizes free maintenance for the circuit breaker part.
  • ✅ Versatile Application: Ideal for 12KV indoor switching equipment and frequent load switching.

Product Attributes

Unit: Piece
Packaging: Not specified

Technical Specifications

Parameter Unit Data
Rated voltagekv12
Maximum working voltagekv12
Rated currentA630, 1250, 1600, 2000, 2500, 3150, 4000
Rated short-circuit break currentkA20/25, 31.5, 40
Rated short-circuit close current (peak)kA50/63, 80, 100
Rated withstand current (peak)kA50/63, 80, 100
4S Rated little withstand currentkA20/25, 31.5, 40
Insulation (Industrial frequency)kA42/48
Insulation (Thunder impulse)kA75/85
Mechanical lifetimes10000
