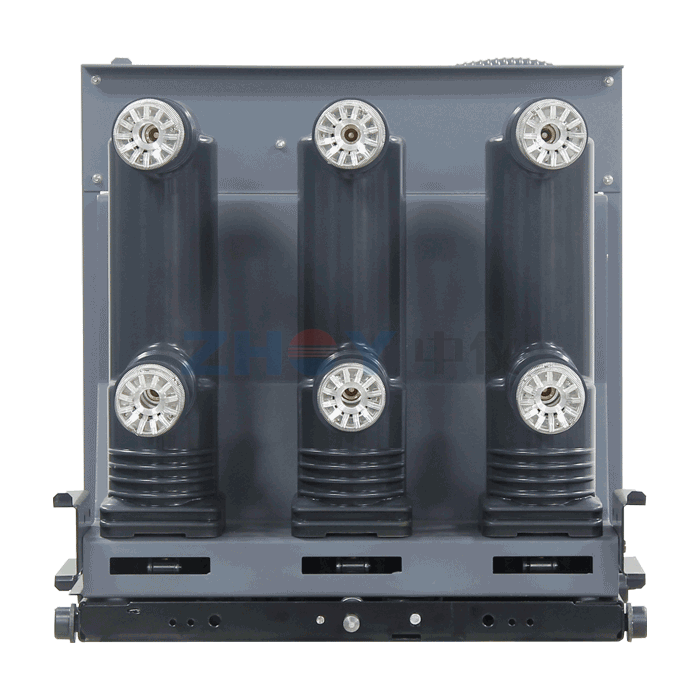

ZN63A-12 (VS1) 12KV HV Vacuum Circuit Breaker Indoor Type
ZN63A-12 (VS1) 12KV HV Vacuum Circuit Breaker Indoor Type
ZN63A-12 (VS1) 12KV HV Vacuum Circuit Breaker Indoor Type
ZN63A-12 (VS1) 12KV HV Vacuum Circuit Breaker Indoor Type
ZN63A-12 (VS1) 12KV HV Vacuum Circuit Breaker Indoor Type
ZN63A-12 (VS1) 12KV HV Vacuum Circuit Breaker Indoor Type
Specifications
Unit :
kA
Item :
Maximum working voltage
Data :
50/63, 80, 100
Price :
Negotiate
Place of Origin :
China
Delivery Time :
5-10 Days
Packaging Details :
Carton
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Description

Product Overview

High-performance electrical protection solution designed for substation control and equipment safety. Engineered to meet rigorous international standards for reliability in demanding industrial environments.

  • Rated voltage up to 10kV
  • High current capacity up to 5000A
  • Compatible with KYN28A and XGN switchgear panels
  • Compliant with IEC62271-100 standards

Applications

Ideal for power distribution substations, industrial power protection, and grid infrastructure maintenance. Customized solutions available for high-altitude and special working conditions.

Product Attributes

Standard: IEC62271-100
Customization: Available for special conditions/high altitude
Frequency: AC 50Hz

Technical Specifications

ItemUnitData
Rated voltagekv12
Maximum working voltagekv12
Rated currentA630, 1250, 1600, 2000, 2500, 3150, 4000
Rated short-circuit break currentkA20/25, 31.5, 40
Rated short-circuit close current (peak)kA50/63, 80, 100
Rated withstand current (peak)kA50/63, 80, 100
4S Rated little withstand currentkA20/25, 31.5, 40
Rated insulation level (Industrial)kA42/48
Rated insulation level (Thunder)kA75/85
Mechanical lifetimes10000
Short-circuit break/close timetimes50
