Pin Post Suspension Composite Insulator
Pin Post Suspension Composite Insulator
Specifications
Power Frequence Withstand (wet) (KV) :
42
Min Arc Distance (mm) :
125
Leakage Distance (mm) :
280
Section Length (mm) :
215
Rated Voltage (KV) :
36
Specified Mechanical Load (kN) :
8
Lightning Impulse Withstand BIL(KV) :
75
Diameter of shed :
160
Code No. :
FPS-15/5
Description

High-Performance Composite Polymer Insulators

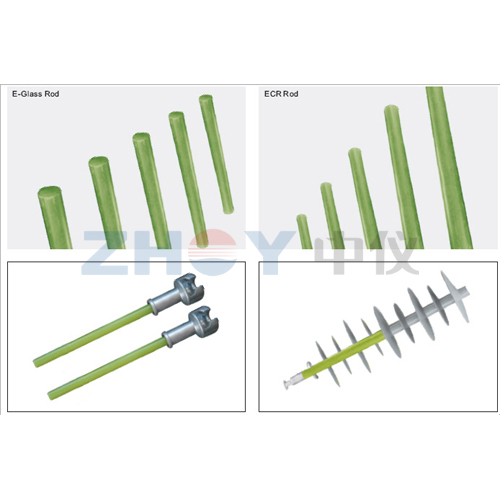

Composite insulators are essential components in high-voltage transmission and distribution systems, designed for superior electrical isolation. Utilizing epoxy rods and external rubber sheds, these polymer insulators offer a modern alternative to traditional ceramic and glass counterparts.

Lightweight Design: Weighs only 1/4 to 1/8 of traditional insulators, reducing installation burden.
High Mechanical Strength: 10 times stronger than high-strength porcelain insulators.
Superior Hydrophobicity: Excellent anti-water properties for reliable performance in harsh environments.
Extended Lifespan: Engineered to overcome conventional material degradation, lasting for several decades.

Technical Specifications

Model Voltage (KV) Load (kN) Length (mm)
FPQ-10/4T20104215
FPQ4-10/5T20105250
FPS-15/5155250
FPQ-24/8248305
FPQ-36/83612440
