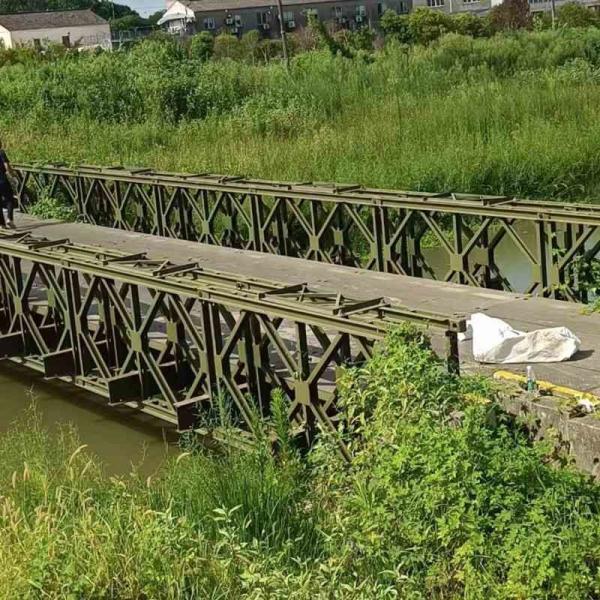

Original Modular Steel Bridges 3.7 Meters Width Bolted Connection Method
Original Modular Steel Bridges 3.7 Meters Width Bolted Connection Method
Specifications
Brand Name :
Zhonghai Bailey Bridge
Model Number :
CB200/CB321
Certification :
IS09001, CE
Place of Origin :
China
MOQ :
1 Pcs
Price :
USD 95-450
Payment Terms :
L/C,D/P,T/T
Supply Ability :
60000ton/year
Delivery Time :
8-10 work days
Packaging Details :
Naked
OEM :
Specialized
Standard :
ASTM,GB,BS,BV
Material :
Steel
Width :
3.7 meters
Decking Options :
Steel or timber
Modular Connection Method :
Bolted
Modular Design :
Yes
Description

Original Steel Bridge/steel Modular Bridge


Jiangsu China Sea Bridge Equipment Co., Ltd. enjoys significant advantages in China's Bailey bridge industry. The company is located in Zhenjiang Dantu High-tech Zone, with convenient transportation logistics. It has a registered capital of 55 million yuan and an annual production capacity of over 60,000 tons, making it a large-scale professional manufacturer of Bailey bridges in East China.

Its products are strictly supervised and regularly inspected by the General Equipment Department Research Station, ensuring high quality. The company has passed the ISO9001:2000 international quality system certification. The core product, Bailey bridge, is processed according to the "Highway Bridge and Culvert Construction Technical Specifications" (JTJ041—2008) issued by the Ministry of Communications. It has a wide range of applications, including national defense, flood control, transportation, water conservancy, railways, and bridges.

The company has successfully applied for patents for the production process and product design of Bailey bridges. It has also introduced advanced automatic welding robot technology to optimize production processes and ensure product quality. Moreover, the company has cooperated with many well-known enterprises and units, such as China Communications Construction Company, China Railway, and China Construction, which has consolidated its position in the industry.



​

CB321(100) Truss Press Limited Table
No. Lnternal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Standard Truss Moment(kN.m) 788.2 1576.4 2246.4 3265.4 1687.5 3375 4809.4 6750
321(100) Standard Truss Shear (kN) 245.2 490.5 698.9 490.5 245.2 490.5 698.9 490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No. Geometric Characteristics Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Section properties(cm3) 3578.5 7157.1 10735.6 14817.9 7699.1 15398.3 23097.4 30641.7
321(100) Moment of inertia(cm4) 250497.2 500994.4 751491.6 2148588.8 577434.4 1154868.8 1732303.2 4596255.2
Original Modular Steel Bridges 3.7 Meters Width Bolted Connection MethodOriginal Modular Steel Bridges 3.7 Meters Width Bolted Connection MethodOriginal Modular Steel Bridges 3.7 Meters Width Bolted Connection MethodOriginal Modular Steel Bridges 3.7 Meters Width Bolted Connection Method

​​

CB200 Truss Press Limited Table
NO. Internal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS QS SSR DSR TSR QSR
200 Standard Truss Moment(kN.m) 1034.3 2027.2 2978.8 3930.3 2165.4 4244.2 6236.4 8228.6
200 Standard Truss Shear (kN) 222.1 435.3 639.6 843.9 222.1 435.3 639.6 843.9
201 High Bending Truss Moment(kN.m) 1593.2 3122.8 4585.5 6054.3 3335.8 6538.2 9607.1 12676.1
202 High Bending Truss Shear(kN) 348 696 1044 1392 348 696 1044 1392
203 Shear Force of Super High Shear Truss(kN) 509.8 999.2 1468.2 1937.2 509.8 999.2 1468.2 1937.2
Original Modular Steel Bridges 3.7 Meters Width Bolted Connection MethodOriginal Modular Steel Bridges 3.7 Meters Width Bolted Connection MethodOriginal Modular Steel Bridges 3.7 Meters Width Bolted Connection MethodOriginal Modular Steel Bridges 3.7 Meters Width Bolted Connection Method

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure Geometric Characteristics
Geometric Characteristics Chord Area(cm2) Section Properties(cm3) Moment of Inertia(cm4)
ss SS 25.48 5437 580174
SSR 50.96 10875 1160348
DS DS 50.96 10875 1160348
DSR1 76.44 16312 1740522
DSR2 101.92 21750 2320696
TS TS 76.44 16312 1740522
TSR2 127.4 27185 2900870
TSR3 152.88 32625 3481044
QS QS 101.92 21750 2320696
QSR3 178.36 38059 4061218
QSR4 203.84 43500 4641392
Original Modular Steel Bridges 3.7 Meters Width Bolted Connection MethodOriginal Modular Steel Bridges 3.7 Meters Width Bolted Connection MethodOriginal Modular Steel Bridges 3.7 Meters Width Bolted Connection MethodOriginal Modular Steel Bridges 3.7 Meters Width Bolted Connection Method

​


Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
