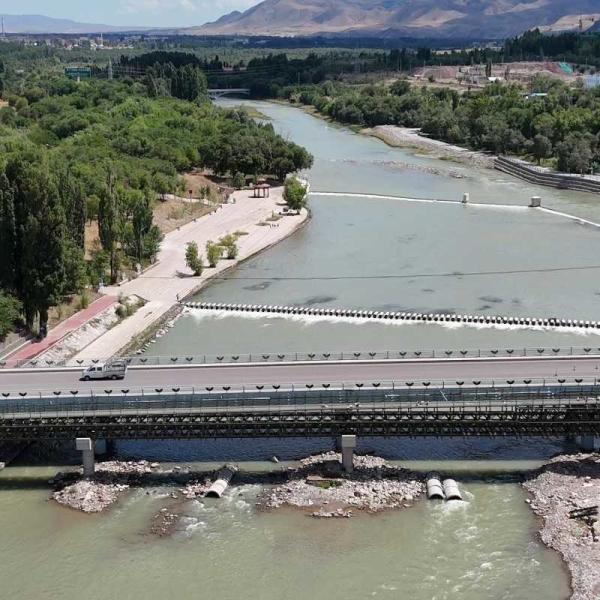

Steel Fabrication For Bridge/steel Frame Bridge

To improve real-time adaptation in automatic welding for bridge construction, several advanced techniques and technologies can be employed:

1. **Advanced Sensing and Imaging Systems**
Robotic welding systems can be equipped with high-resolution cameras and laser sensors to monitor the welding process in real-time. These sensors capture images of the weld pool and seam, providing detailed geometrical information such as the width and position of the weld pool. By using advanced image processing algorithms, the system can detect deviations and adjust the welding parameters accordingly.

2. **Adaptive Control Algorithms**
Implementing adaptive control algorithms allows the welding system to adjust parameters such as welding speed, torch orientation, and electrical settings (e.g., wire feed speed, arc length) in real-time. For example, a P-controller can be used to correct path deviations by adjusting the robot's trajectory based on the detected offset. This ensures that the welding process remains stable and consistent, even when faced with changing conditions.

3. **Machine Learning and Artificial Intelligence**
Machine learning algorithms, such as Convolutional Neural Networks (CNN), can be trained to recognize and adapt to different welding conditions. These algorithms can accurately detect the target area of image processing in real-time, even under varying intensities of arc splash. This enhances the system's ability to adapt to defects and irregularities in the welding process.

4. **Human-Robot Interaction**
In cases where automatic detection fails, human-robot interaction can be employed to guide the welding process. For example, users can draw the desired path on a live video window using a mouse cursor, ensuring accurate path planning and tracking. This feature is particularly useful for complex welding tasks where automatic detection may not be sufficient.

5. **Closed-Loop Feedback Systems**
A closed-loop feedback system is essential for real-time adaptation. Sensors detect deviations in the welding process, and the control system adjusts the parameters accordingly. This continuous feedback loop ensures that any changes in the welding conditions are promptly addressed, maintaining high-quality welds.

6. **Optimization of Control Parameters**
Optimizing the control parameters of the welding system, such as the gain settings in the control algorithms, can improve the system's responsiveness and accuracy. For example, adjusting the gain in a P-controller can help reduce over-regulation and improve the stability of the welding process.

7. **Robust Data Management**
Effective data management is crucial for real-time adaptation. The system should be able to process and analyze large amounts of data quickly, providing real-time feedback and adjustments. This includes integrating various sensors and algorithms to ensure seamless communication and coordination between different components of the welding system.

By integrating these advanced technologies and techniques, automatic welding systems can achieve greater adaptability and reliability in bridge construction, ensuring high-quality welds even under dynamic and challenging conditions.

Specifications:

​

CB321(100) Truss Press Limited Table
No.	Lnternal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Standard Truss Moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Standard Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No.	Geometric Characteristics	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

​​

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

​

Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
