Bridge Steel Pipe/steel Pipe Bridge For Sale

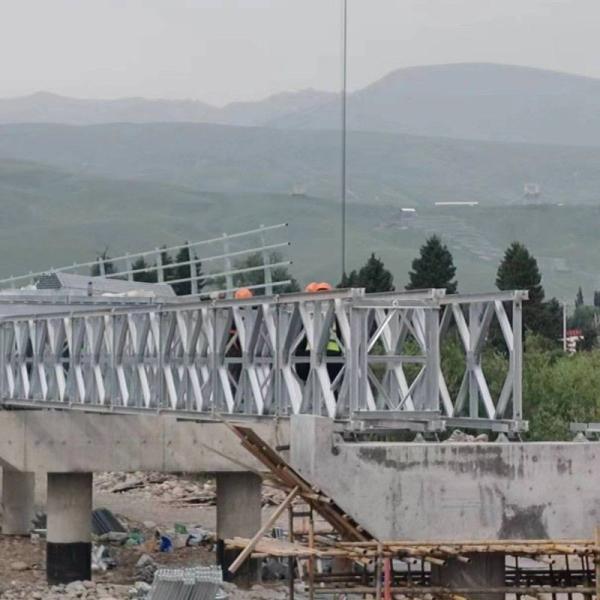

The "321-Type" Bailey bridge is a versatile and rapidly deployable steel bridge system designed for various applications, including emergency response and temporary infrastructure needs. It was originally based on the British Compact-100 Bailey Bridge and adapted to meet the specific requirements and conditions in China.

Key Features of the 321-Type Bailey Bridge
- **Design and Construction**: The bridge is constructed using high-tensile strength steel, with lightweight composite panels connected by panel pins. This design allows for easy assembly, disassembly, and transportation.
- **Rapid Deployment**: The modular design enables quick setup and dismantling, making it ideal for emergency situations where rapid response is crucial.
- **Load Capacity**: The 321-Type Bailey bridge is suitable for smaller spans and lighter loads. It can be reinforced to handle heavier loads when necessary.
- **Customization**: The bridge can be customized to match the dimensions of existing bridges, particularly in international markets where compatibility with older structures is required.
- **Applications**: Widely used in emergency transportation, disaster relief, and temporary infrastructure projects.

Technical Specifications
- **Net Width**: 4.0 meters.
- **Maximum Free Span Length**: Up to 51 meters.
- **Panel Dimensions**: Standard panels are 3.048 meters by 1.45 meters (hole center distance).
- **Load Capacity**: Suitable for various load classes, including Truck-10, Truck-15, Truck-20, Tracklayer-50, and Trailer-80.

Environmental and Durability Considerations
The 321-Type Bailey bridge is designed to withstand harsh environmental conditions, with options for galvanization to enhance corrosion resistance. This ensures a longer lifespan with minimal maintenance.

Conclusion
The 321-Type Bailey bridge is a reliable and efficient solution for temporary and emergency bridge needs. Its modular design, ease of deployment, and adaptability make it a valuable asset in various engineering and humanitarian applications.

Specifications:

​

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

​​

CB321(100) Truss Press Limited Table
No.	Lnternal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Standard Truss Moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Standard Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No.	Geometric Characteristics	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

​

Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
